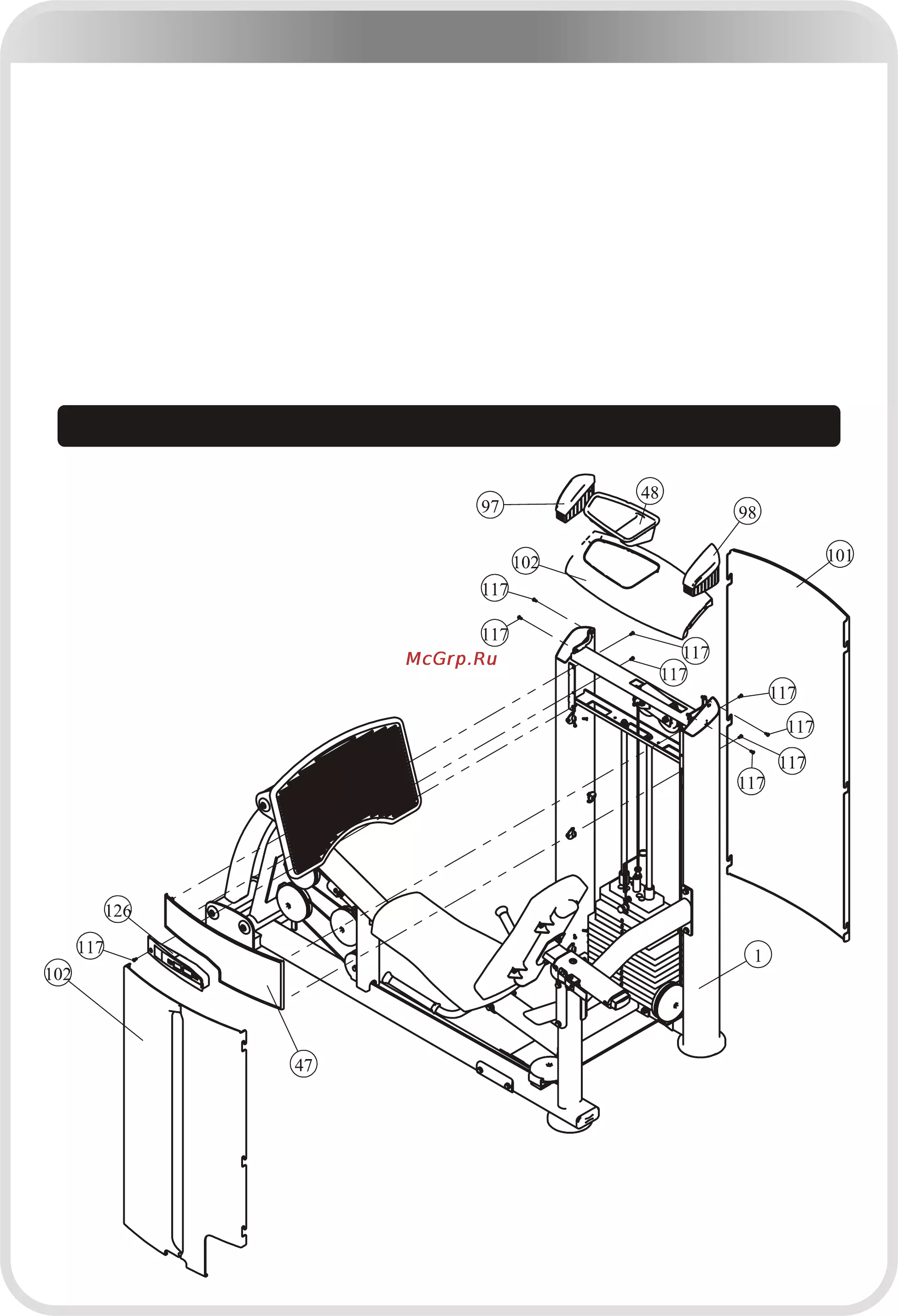

Assembly

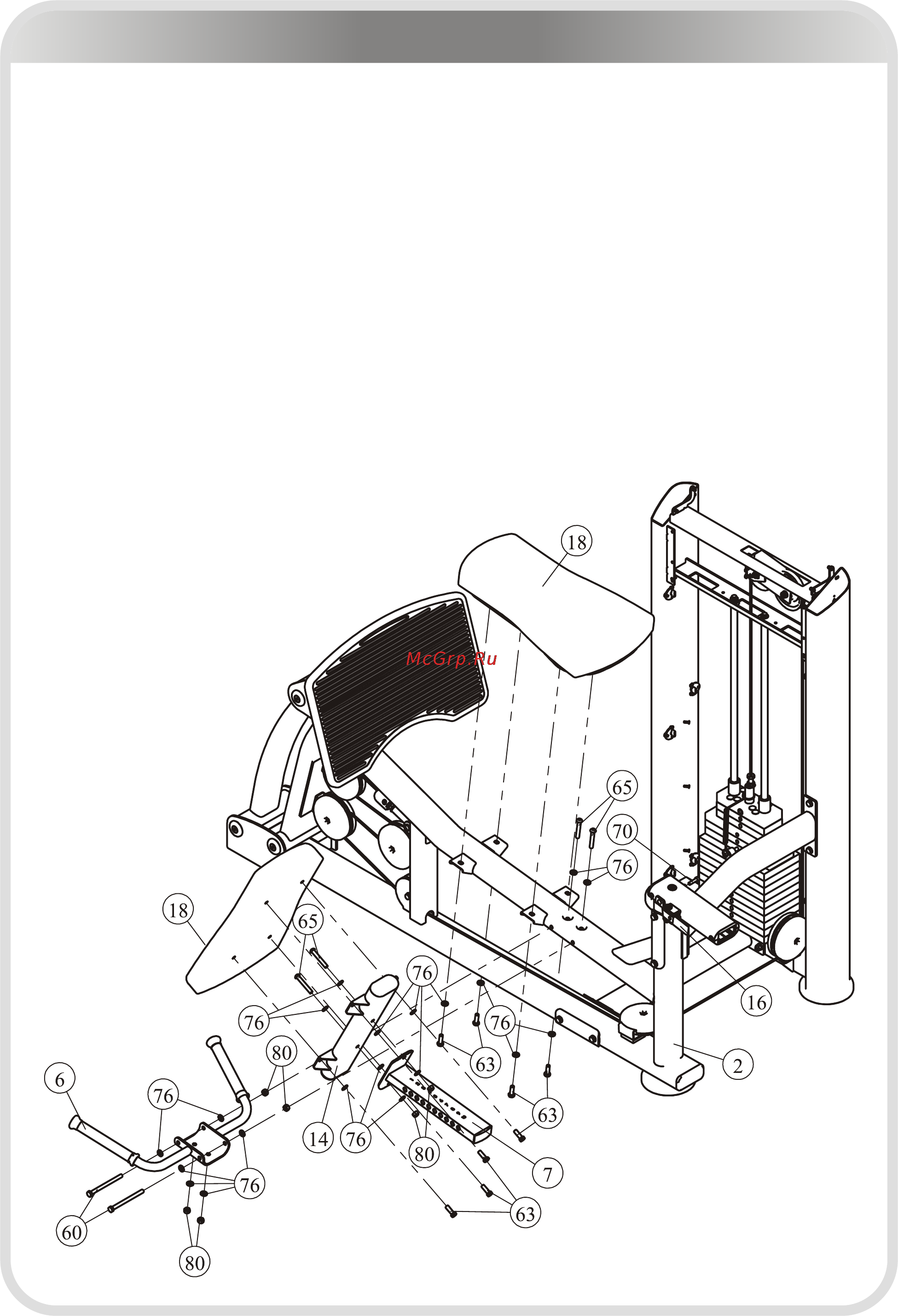

1. Attach the Handle (#6) to the Main Frame (#2) using:

two M10*130 HHB (#60) two M10*65 HHB (#65)

eight 11* 20*2 Flat Washers (#76) four M10 Nylon Lock Nuts (#80)

2. Attach the Adjustable Tube (#7) to the Back Pad Support (#14) using:

two M10*65 HHB (#65) four 11* 20*2 Flat Washers (#76)

two M10 Nylon Lock Nuts (#80)

3. Insert the Adjustable tube (#7) into the Main Frame (#2) and secure it into place

with the Adjustable Support (#16), then fully tighten the M8*30 SHCS (#70).

4. Attach the Back Pad (#18) to the Main Frame (#2) using:

four M10*30 HHB (#63)

four 11* 20*2 Flat Washers (#76)

5. Attach the Back Pad (#18) to the Back Pad Support (#14) using:

four M10*30 HHB (#63) four 11* 20*2 Flat Washers (#76)

Note: Wrench Tighten Bolts.

● ●

● Φ Φ ●

● ● Φ Φ

●

Φ Φ

● ● Φ Φ

STEP 5
