Assembly

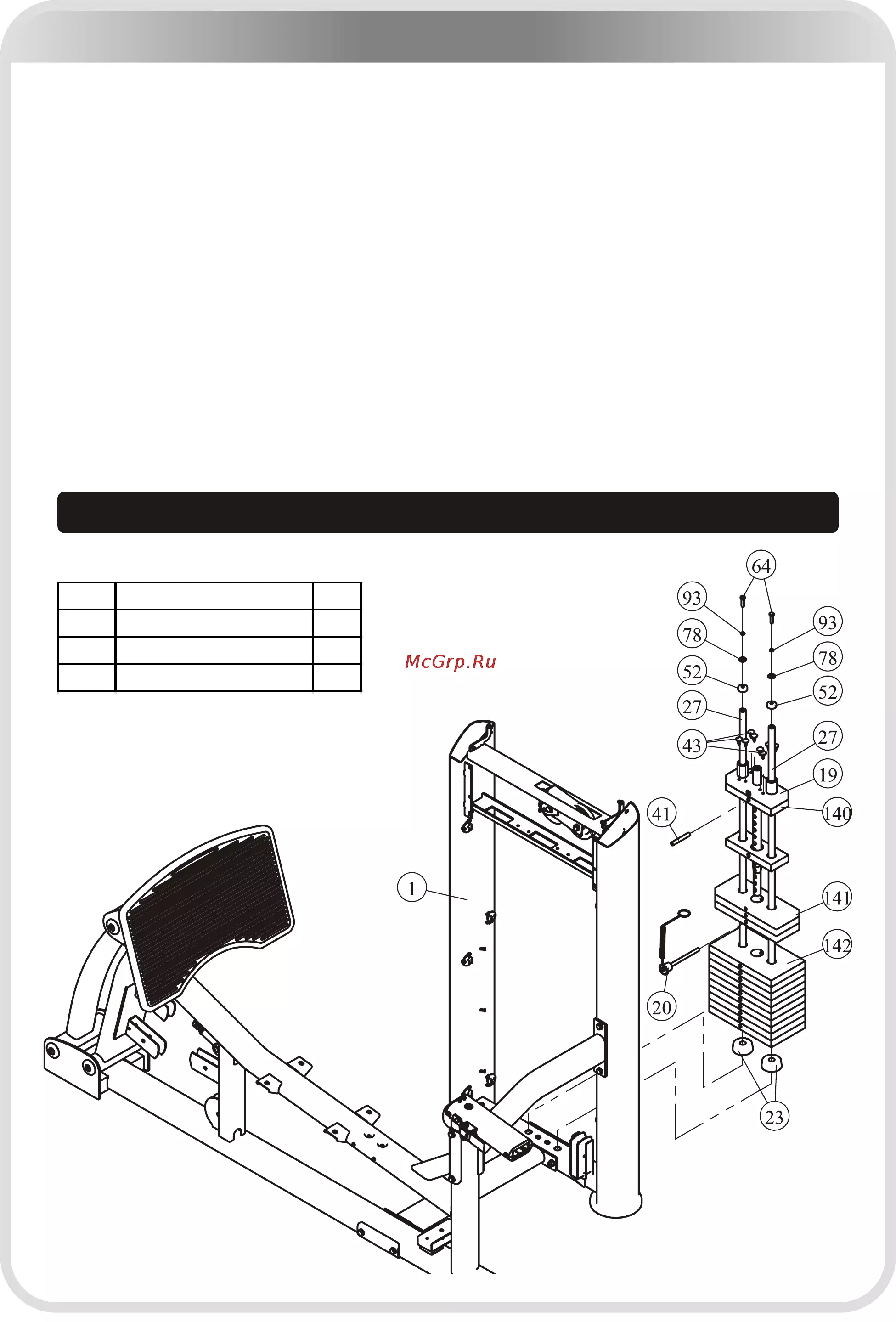

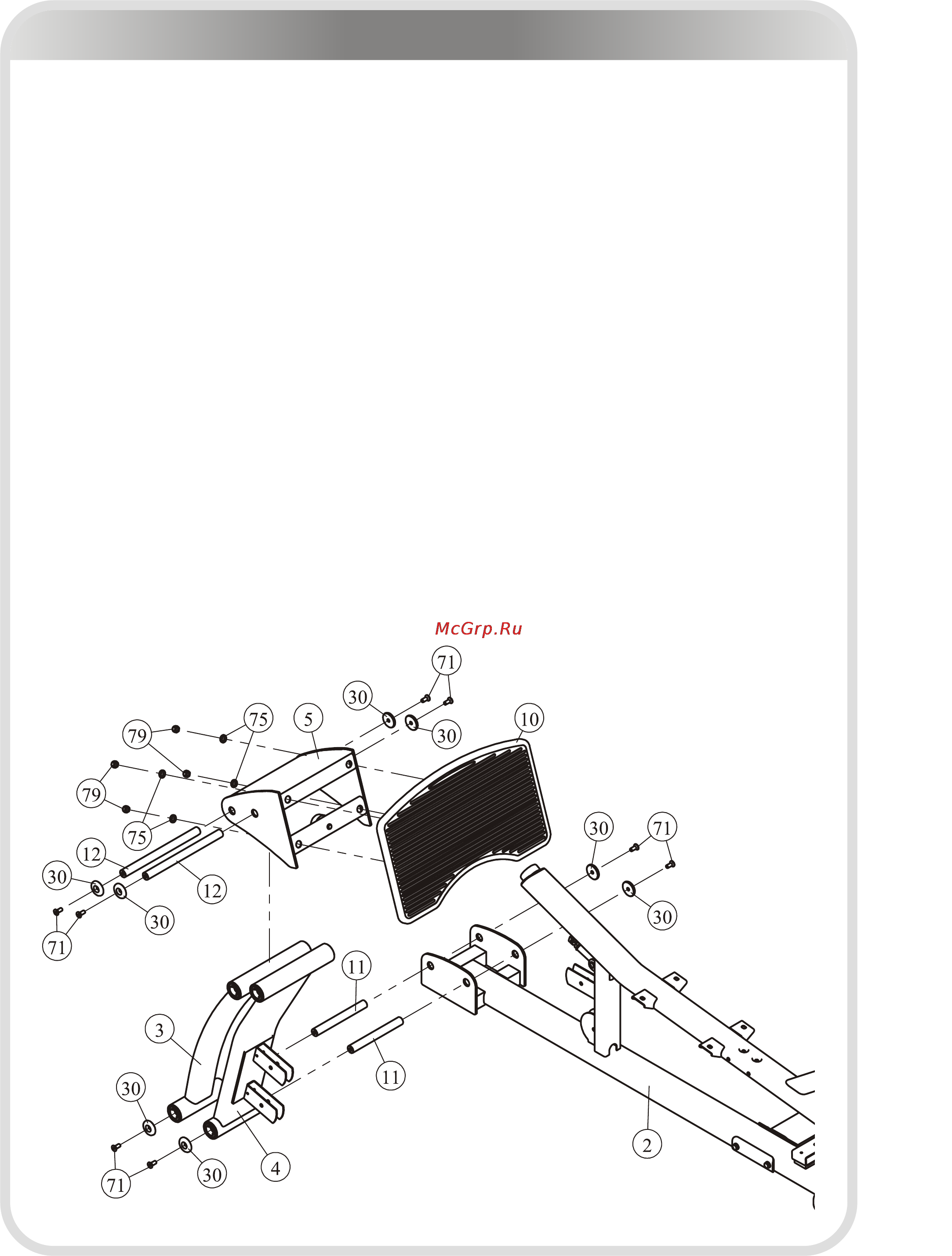

STEP 2

1. Attach the Footplate (#10) to the Connect Frame (#5) using:

four 13* 24*1.5 Flat Washers (#75)

four M12 Nylon Lock Nuts (#79)

2. Attach the Back Sway Frame (#4) and the Front Sway Frame (#3) to the Main

Frame (#2) using:

two 25.4*222 Pivot Axles (#11)

four 50* 10.5*8 Aluminium Caps (#30)

four M10*25 FHCS (#71)

3. Attach the Connect Frame (#5) to the Back Sway Frame (#4) and the Front Sway

Frame (#3) using:

two 25.4*332 Pivot Axles (#12)

four 50* 10.5*8 Aluminium Caps (#30)

four M10*25 FHCS (#71)

Note: Wrench Tighten Bolts and Nylon Lock Nuts.

● Φ Φ

●

● Φ

● Φ Φ

●

● Φ

● Φ Φ

●
