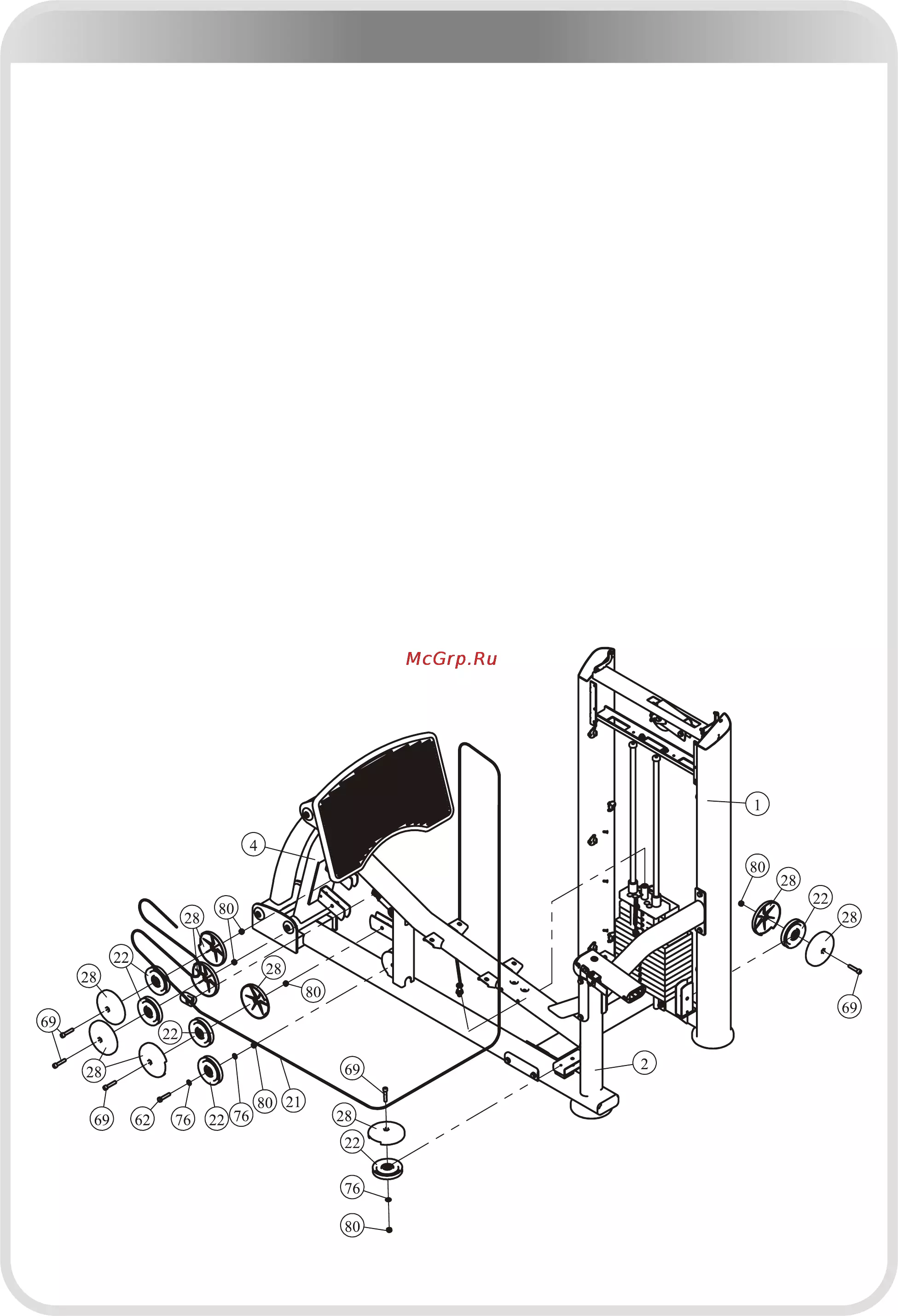

Assembly

Here is the assembly instruction for 300LBS Weights !

300LBS Weight

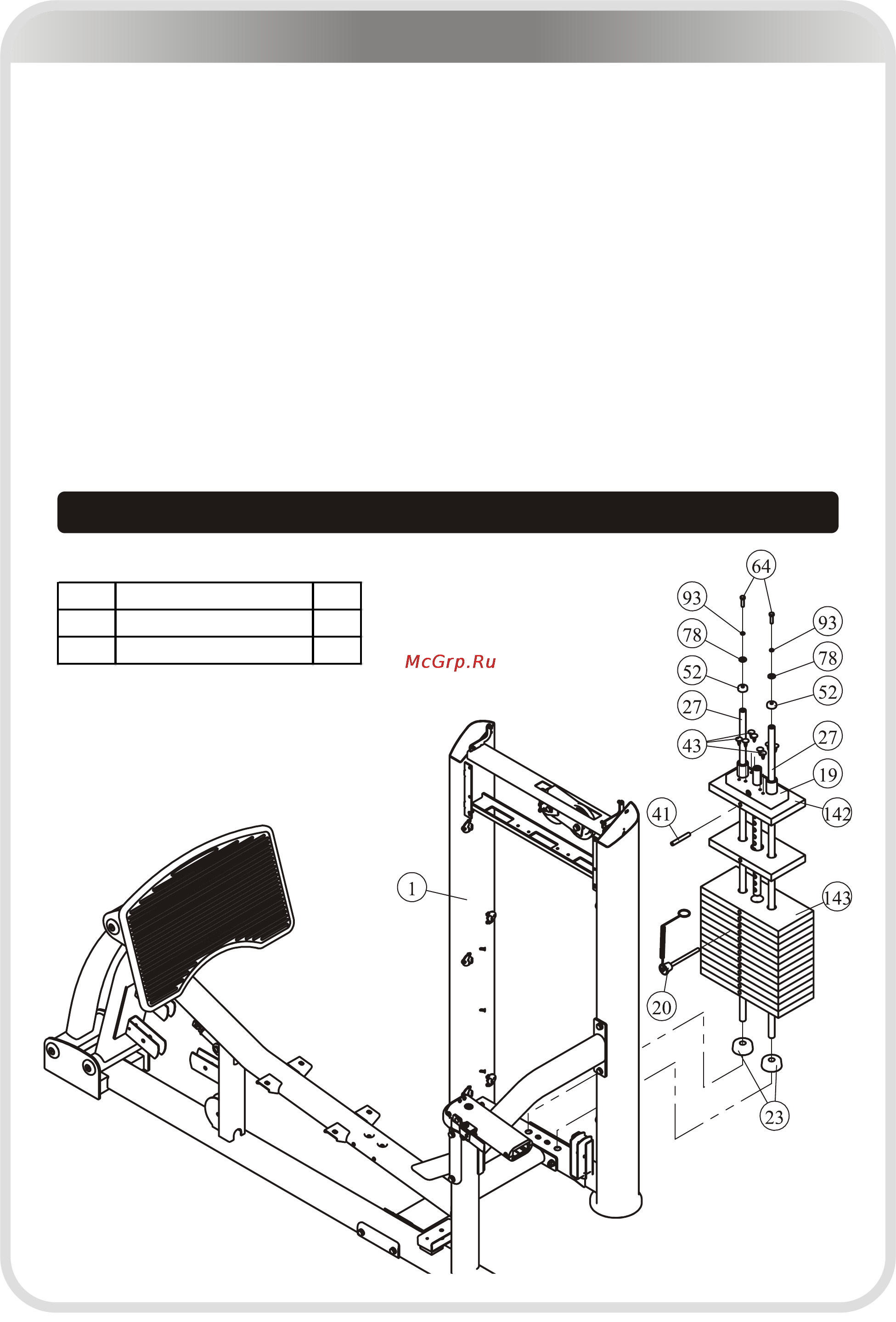

STEP 3

Item Description Qty

142 Weight Plate 15LBS 2

143 Weight Plate 20LBS 13

1. Attach:

two 19*1177 Guide Rods (#27) two 63.5* 19*25.4 Weight Rubber Bumpers (#23)

thirteen Weight Plate 20LBS (#143) two Weight Plate 15LBS (#142)

one Top Plate (#19)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#64) two 8 Spring Washers (#93)

two 9* 22*1.6 Flat Washers (#78) two 29* 19*10 Rubber Plugs (#52)

2. Attach the Selector Pin W/Coil (#20) to the Top Plate (#19).

3. Attach eight Buttons (#43) to the Top Plate (#19).

4. Put the Top Plate (#19) and first Weight Plate 15LBS (#142) together with the Split

Pin Φ11*76 (#41).

Note: Wrench Tighten Bolts.
