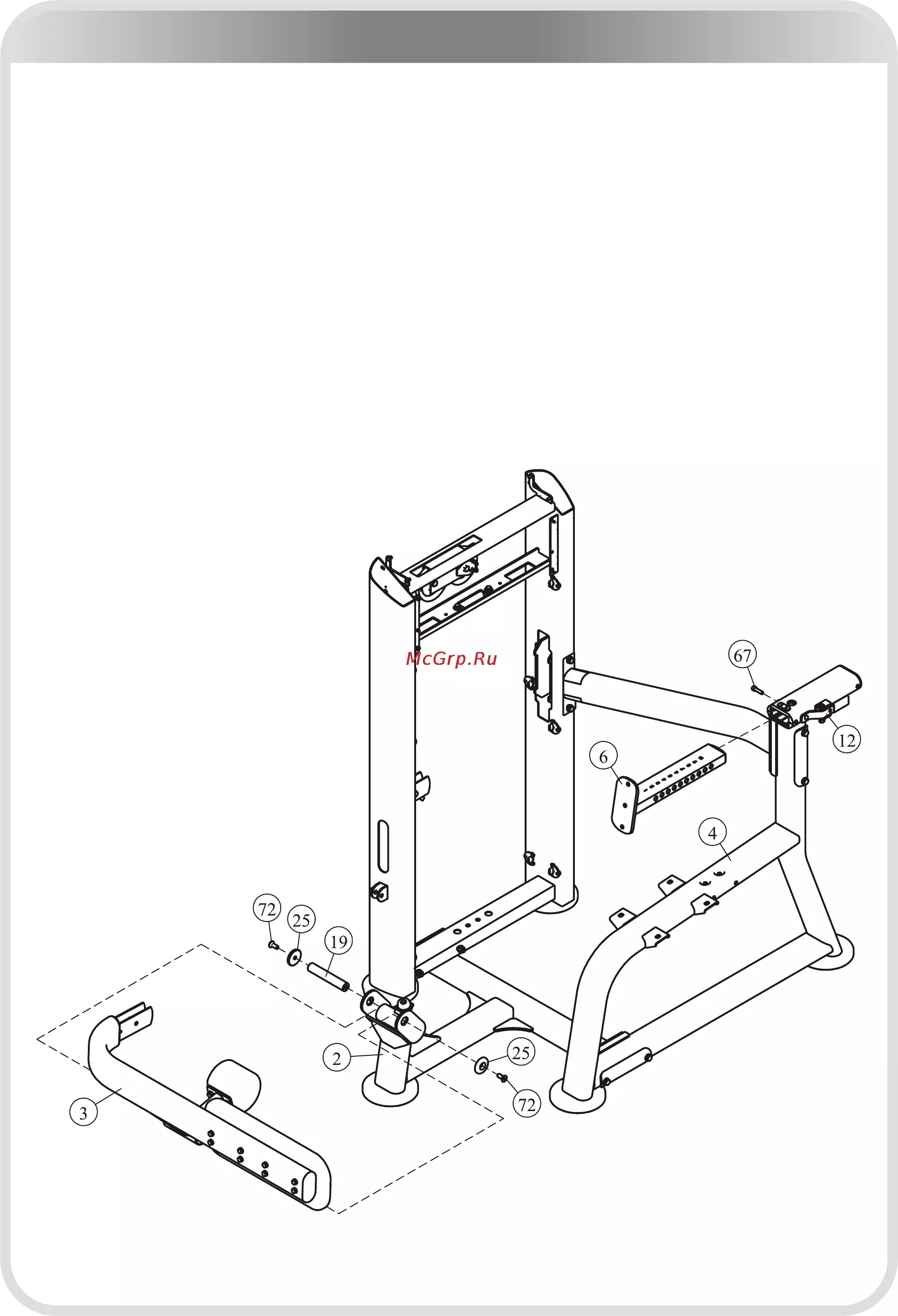

Assembly
STEP 2
1. Attach the Adjustable tube (#6) to the Seat Frame (#4) using:
one M8*30 SHCS (#67)
2. Attach the Swivel (#3) to the Front Cross Frame (#2) using:
two 50* 10.5*8 Cap (#25)
one 25.4*144 Pivot Axle (#19)
two M10*25 FHCS (#72)
Note: Hand tighten bolts and Nylon Lock nuts.
●
