Assembly

STEP 3

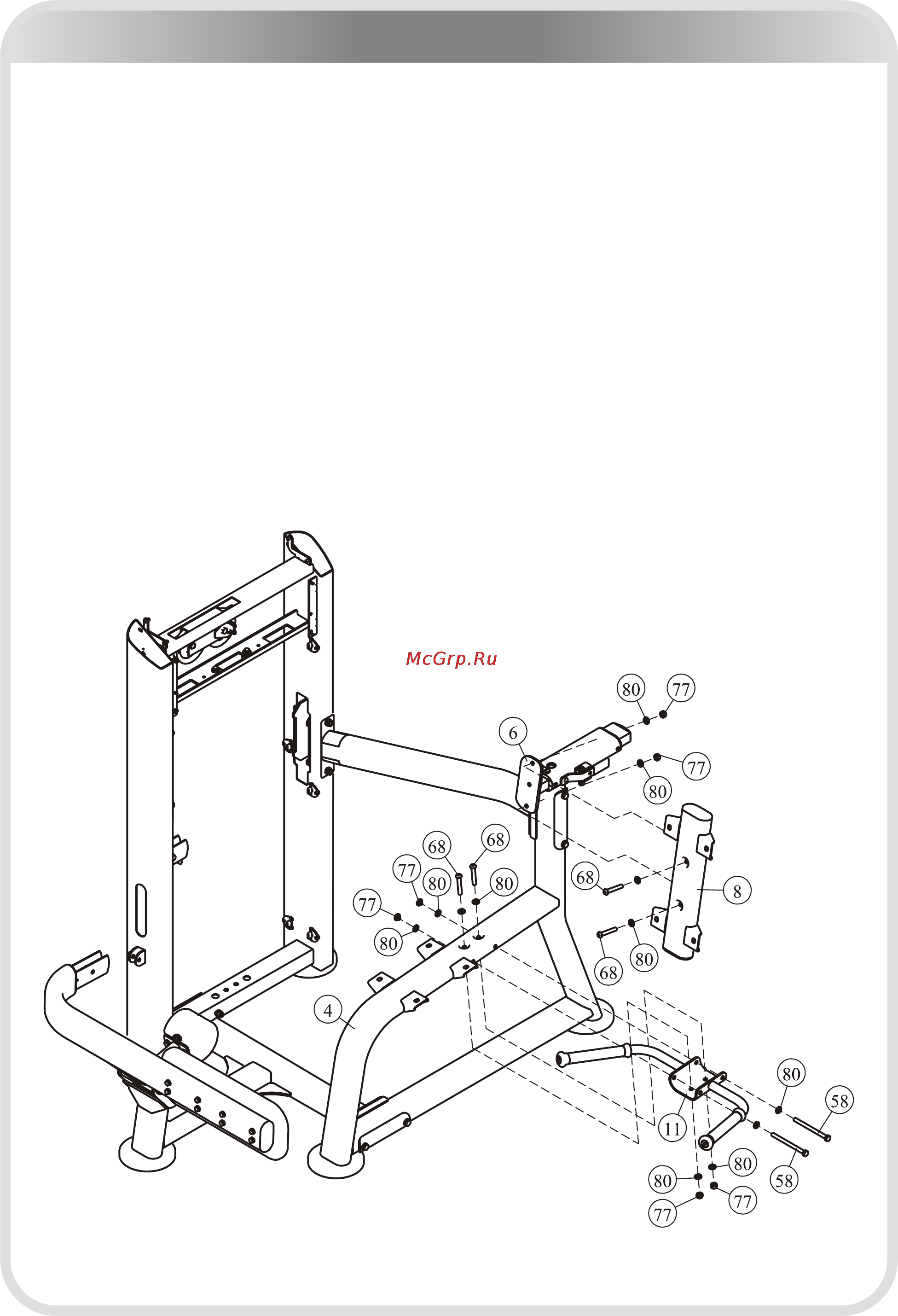

1. Attach the Back Pad Support (#8) to the Adjustable Tube (#6) using:

two M10*65 BHCS (#68)

four 11* 20*2 Flat Washers (#80)

two M10 Nylon lock Nuts (#77)

2. Attach the Handle (#11) to the Seat Frame (#4) using:

two M10*65 BHCS (#68)

two M10*130 HHB (#58)

eight 11* 20*2Flat Washers (#80)

four M10 Nylon lock Nuts (#77)

Note: Hand tighten bolts and Nylon Lock nuts.

●
