Assembly

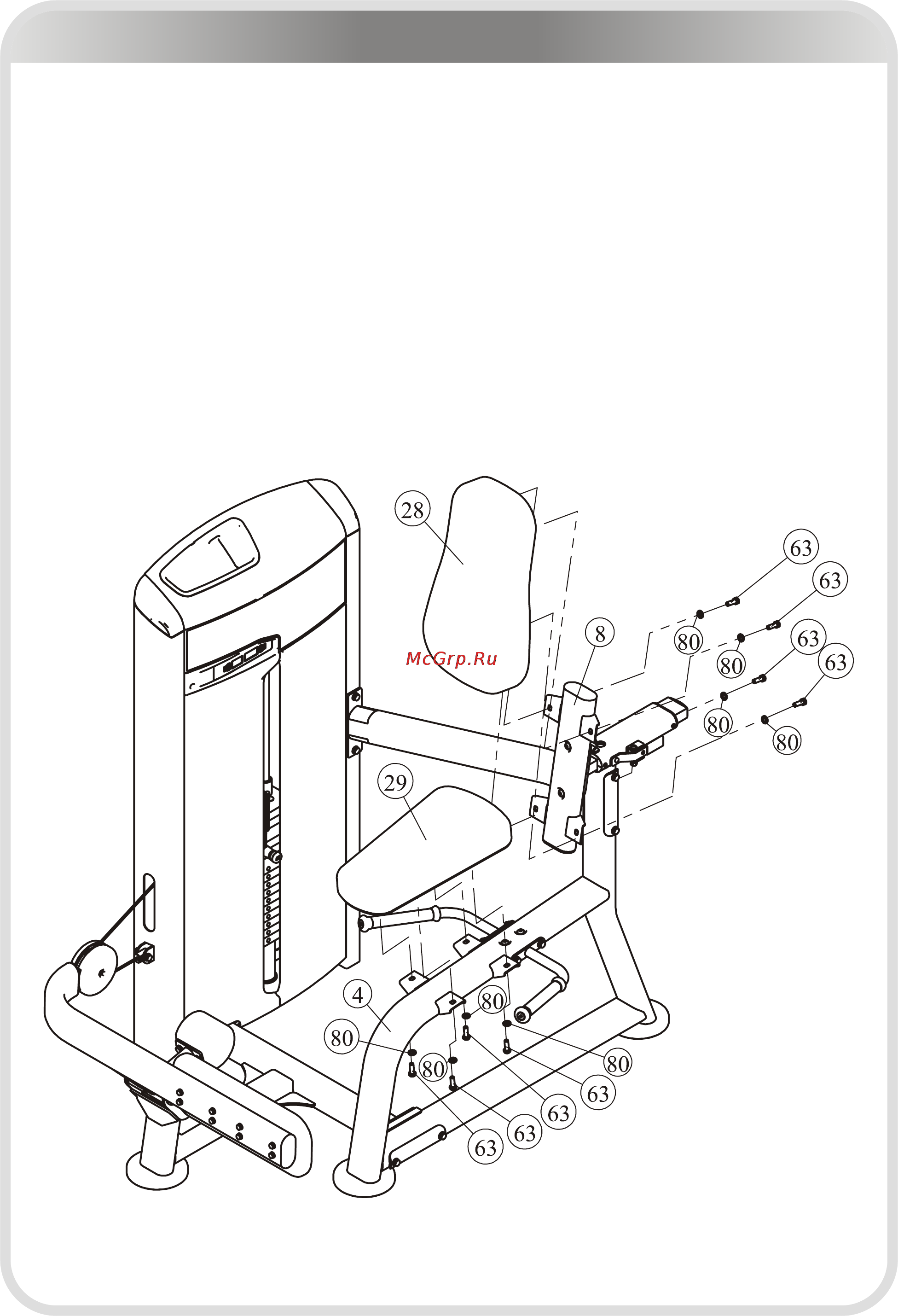

1. Attach the Seat Pad (#29) to the Seat Frame (#4) using:
four M10*30 HHB (#63)
four 11* 20*2 Flat Washers (#80)
2. Attach the Back Pad (#28) to the Back Pad Support (#8) using:
four M10*30 HHB (#63)
four 11* 20*2 Flat Washers (#80)
Note: Wrench Tighten bolts and Nylon Lock nuts.
●
