Assembly

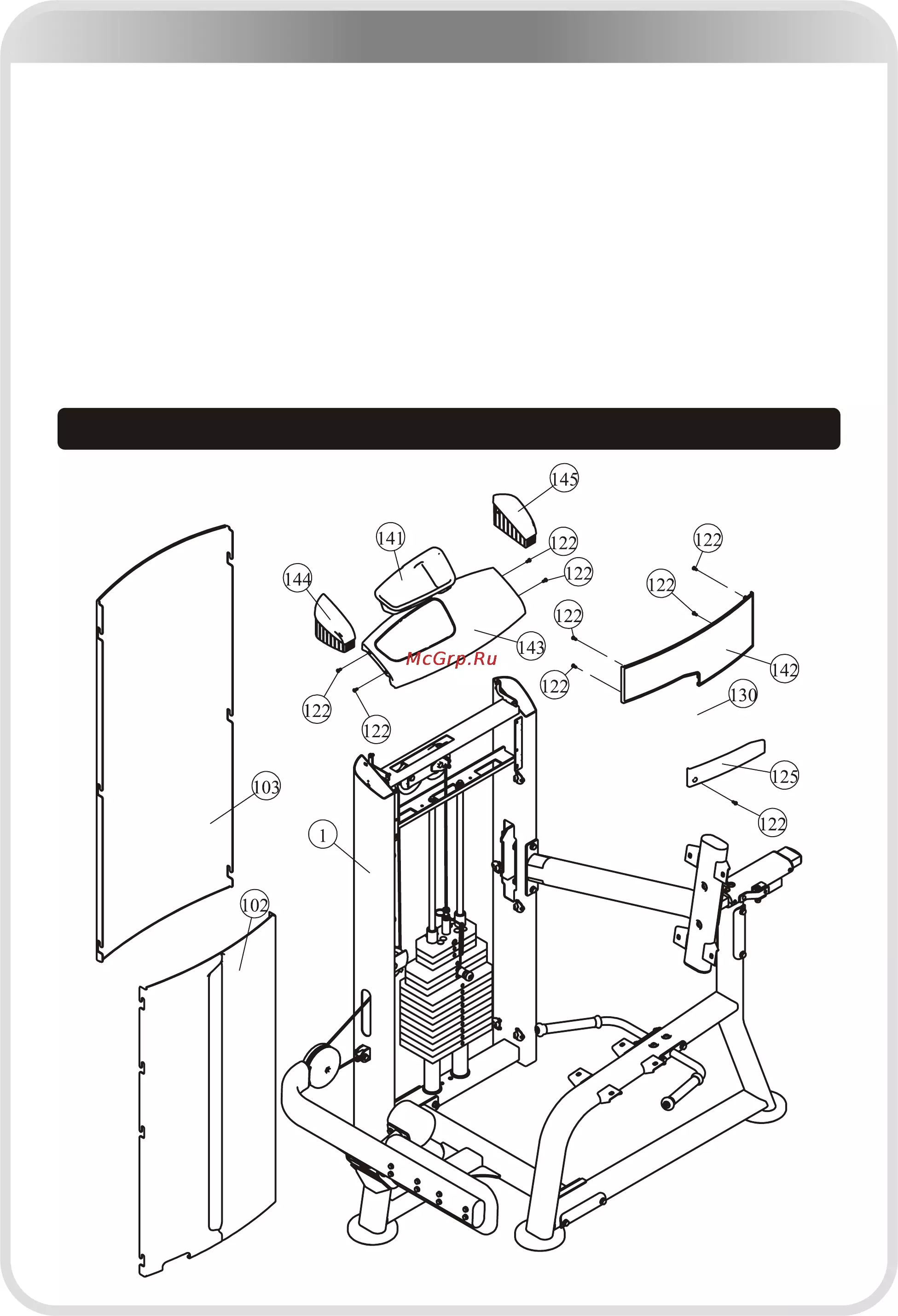

STEP 6

Here is the assembly instruction for Plastic Cover !

─ 17 ─

1. Attach one Front Shroud (#102) to the Weight Stack Frame (#1).

2. Attach the Top Front Shroud (#142) and the Plastic Cover (#125) to the Weight

Stack Frame (#1) using:

five M5*12 Screws (#122)

3. Attach one Rear Shroud (#103) to the Weight Stack Frame (#1).

4. Attach the Top Cover (#143) to the Weight Stack Frame (#1) using:

four M5*12 Screws (#122)

5. Attach the Left Plug (#144) and Right Plug (#145) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.

●
