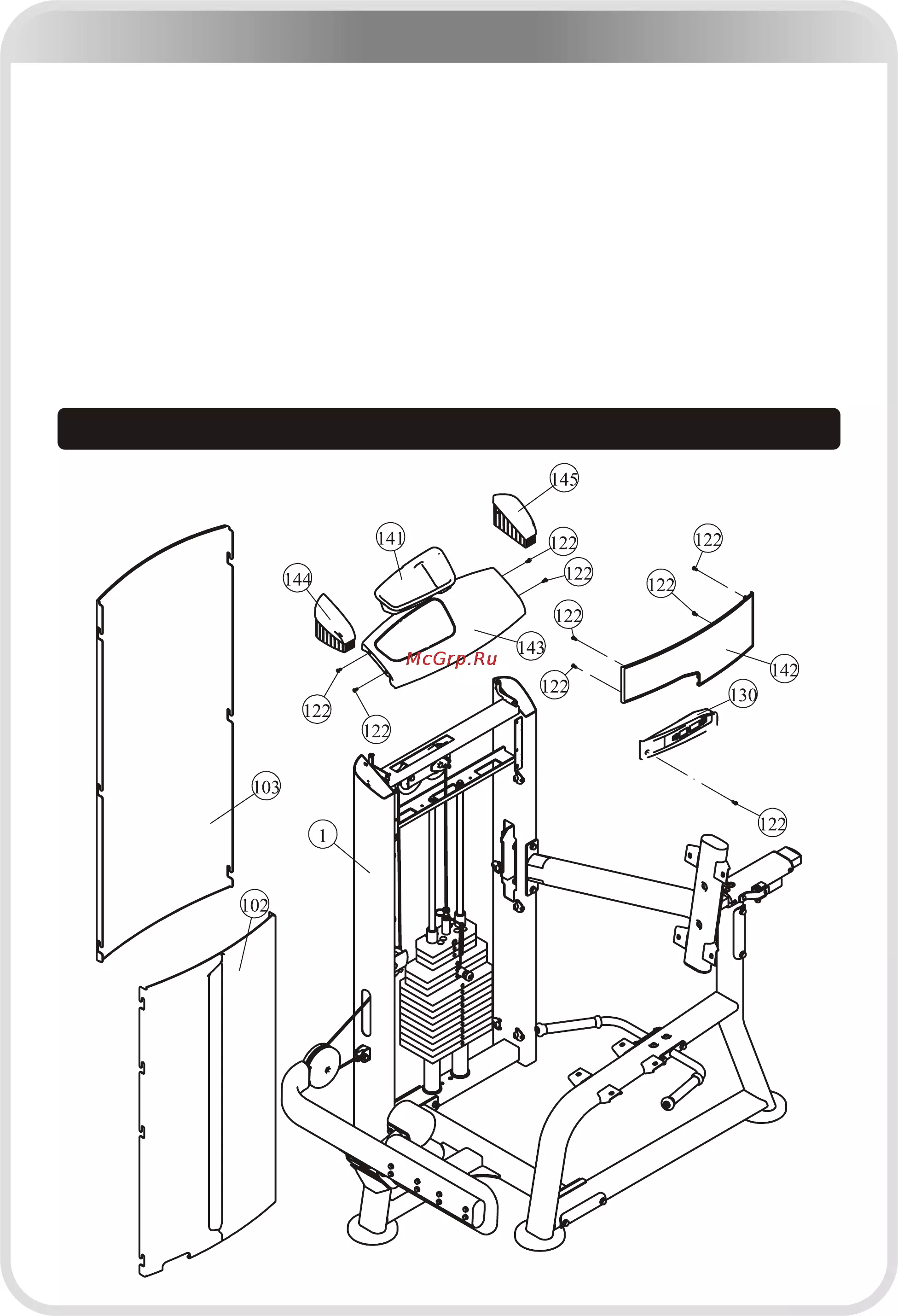

Assembly

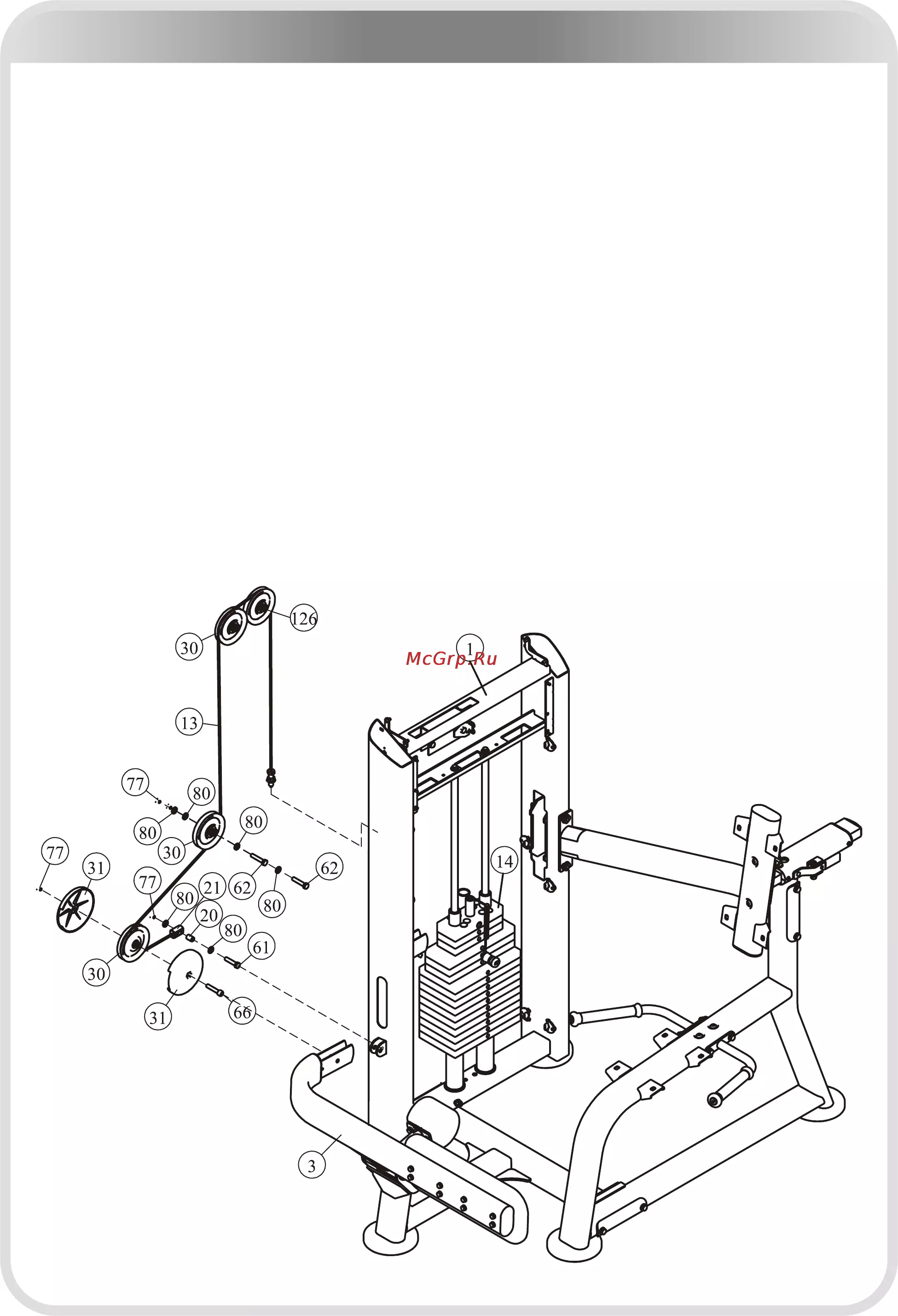

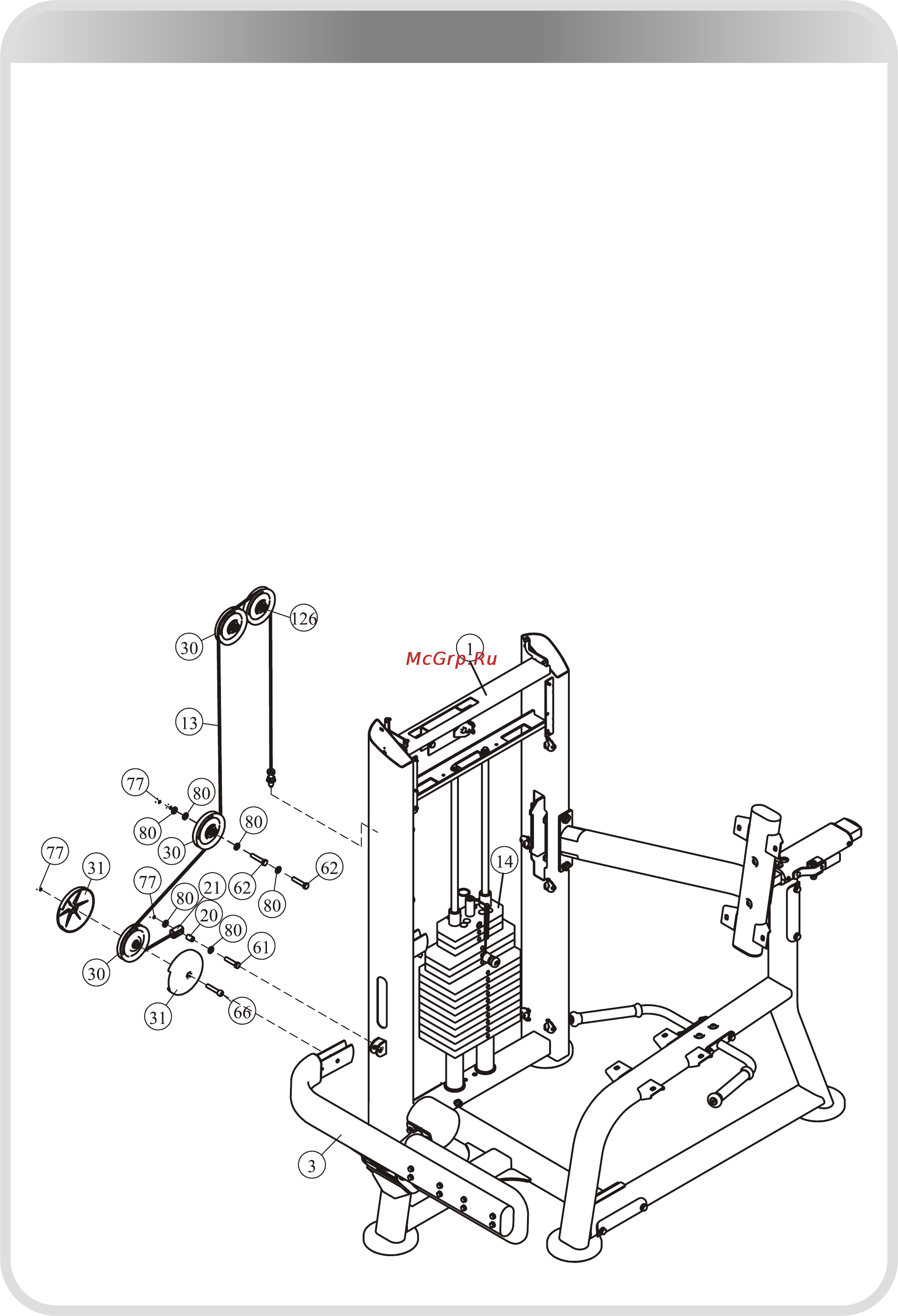

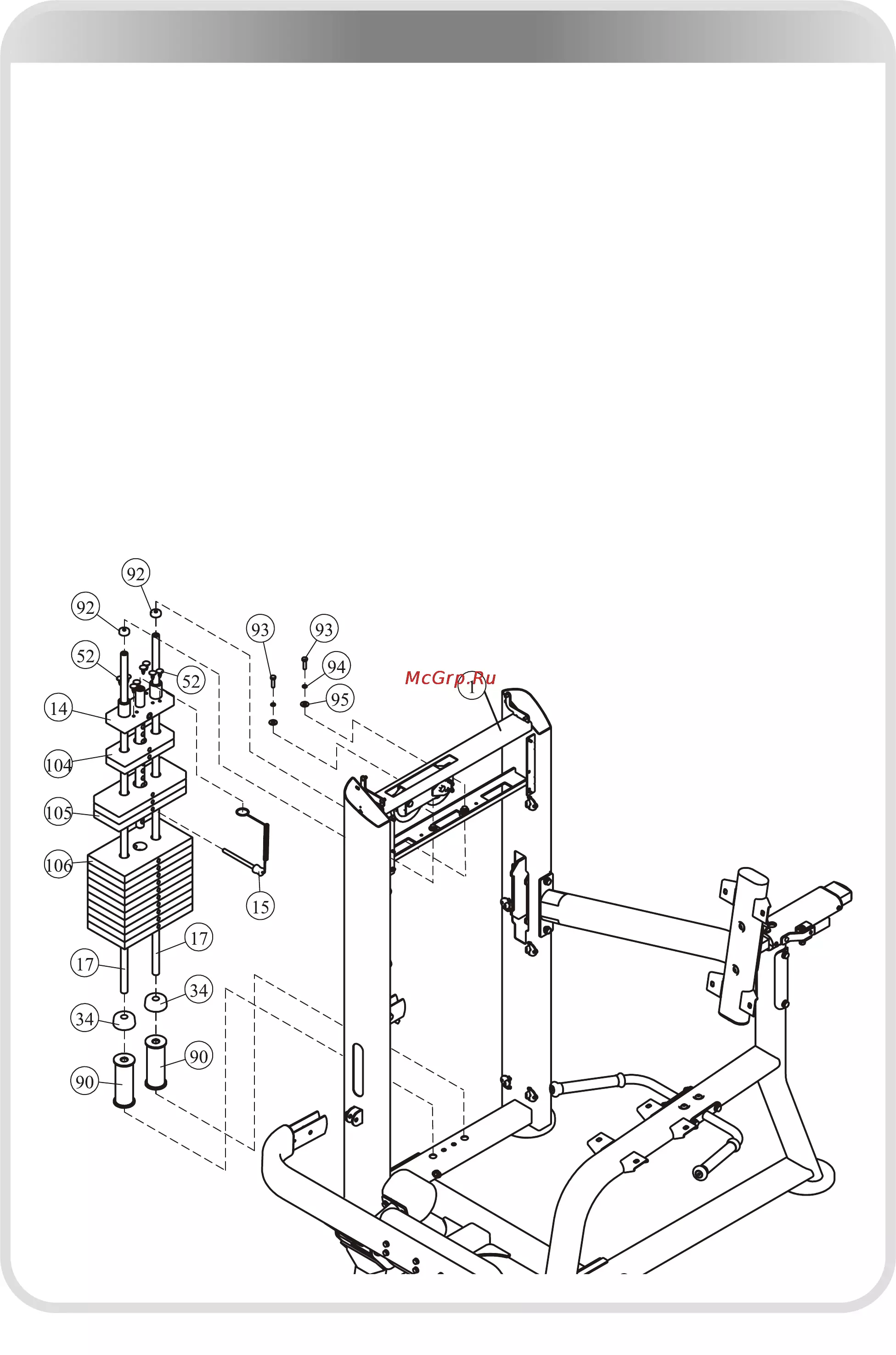

STEP 5

1. Attach the Cable (#13) to the Top Plate (#14).

2. Attach the Cable (#13) to the Weight Stack Frame (#1), and go through two 4.5"

Pulleys.

3. Attach one 4.5" Pulley (#30) to the Weight Stack Frame(#1)using:

two M10*50 HHB (#62) four 11* 20*2 Flat Washers (#80)

two M10 Nylon lock Nuts (#77)

4. Attach one 4.5" Pulley (#30) to the Swivel (#3) using:

two Pulley Cover (#31) one M10*50 SHCS (#66)

one M10 Nylon lock Nut (#77)

5. Attach the Cable (#13) to the Weight Stack Frame (#1) using:

one M10*45 HHB (#61) two 11* 20*2 Flat Washers (#80)

one M10 Nylon lock Nuts (#77) one 10* 14*20 Spacer (#20)

one 25.4* 10*37Cable End (#21)

Note: Wrench Tighten bolts and Nylon Lock nuts.
