Assembly

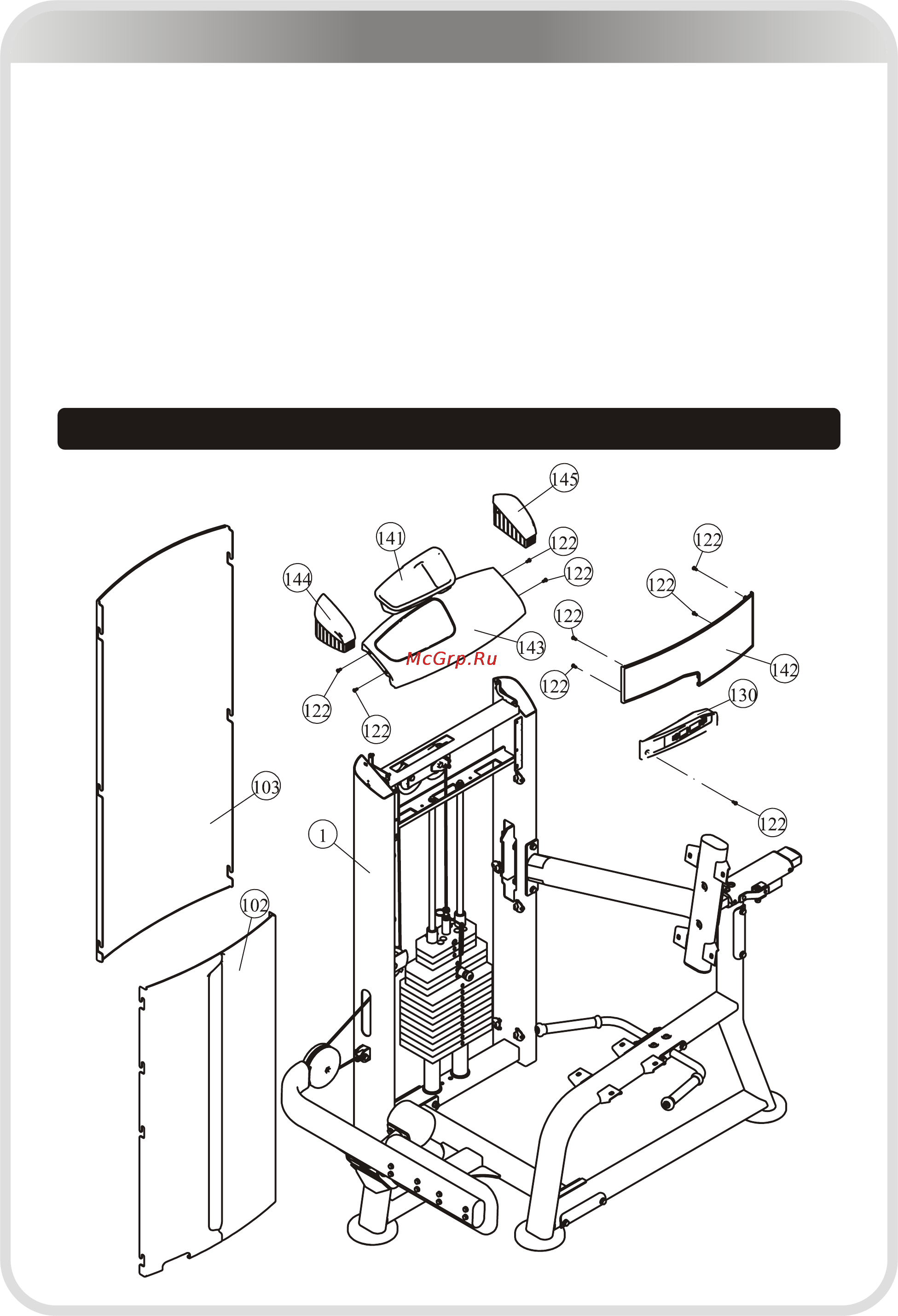

1. Attach one Front Shroud (#102) to the Weight Stack Frame (#1).

2. Attach the Top Front Shroud (#142) and the Console PCB (#130) to the Weight

Stack Frame (#1) using:

five M5*12 Screws (#122)

3. Attach one Rear Shroud (#103) to the Weight Stack Frame (#1).

4. Attach the Top Cover (#143) to the Weight Stack Frame (#1) using:

four M5*12 Screws (#122)

5. Attach the Left Plug (#144) and Right Plug (#145) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.

●

STEP 6

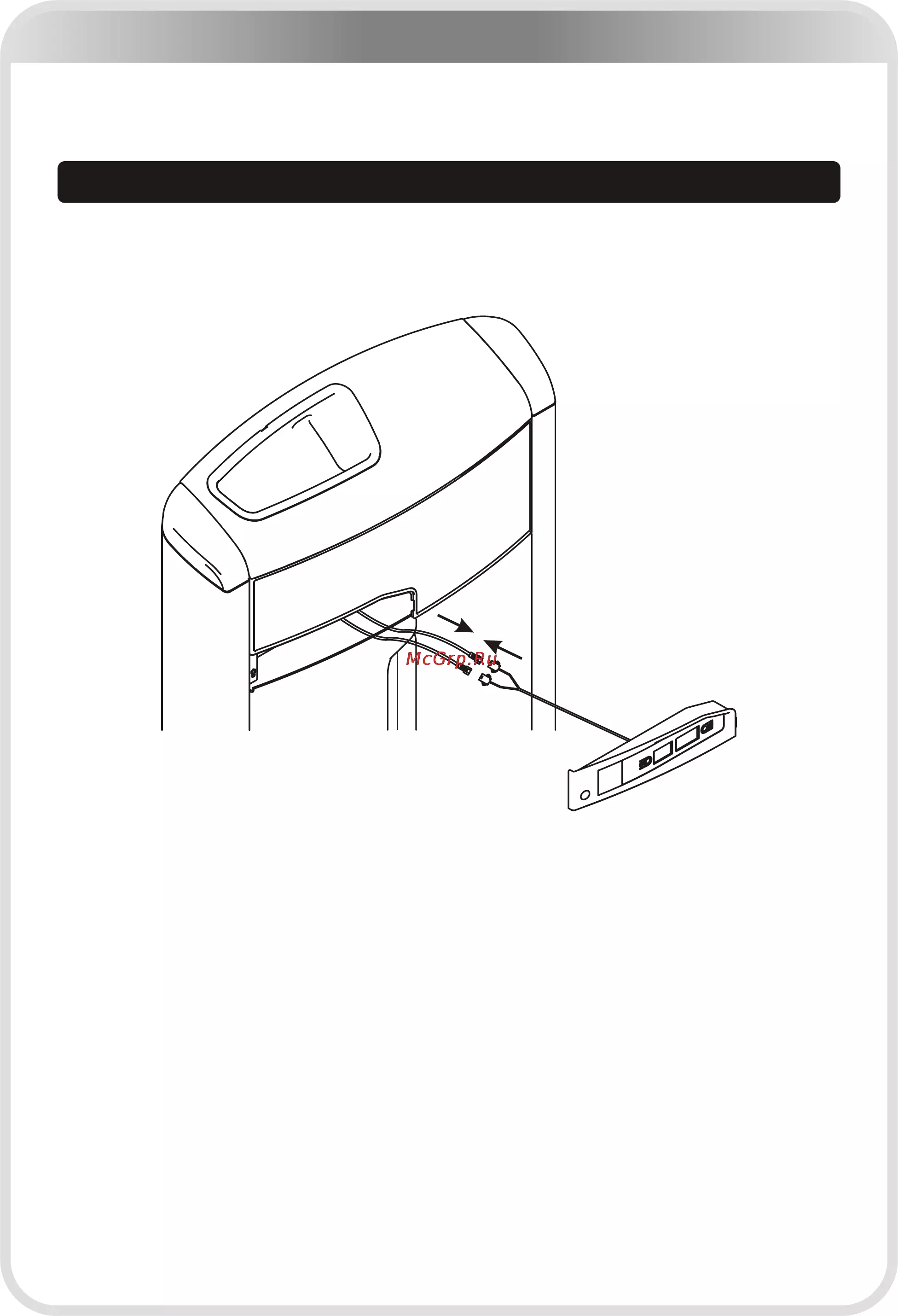

Here is the assembly instruction for Console PCB !
