Assembly

Here is the assembly instruction for 150LBS Weights !

150LBS Weight

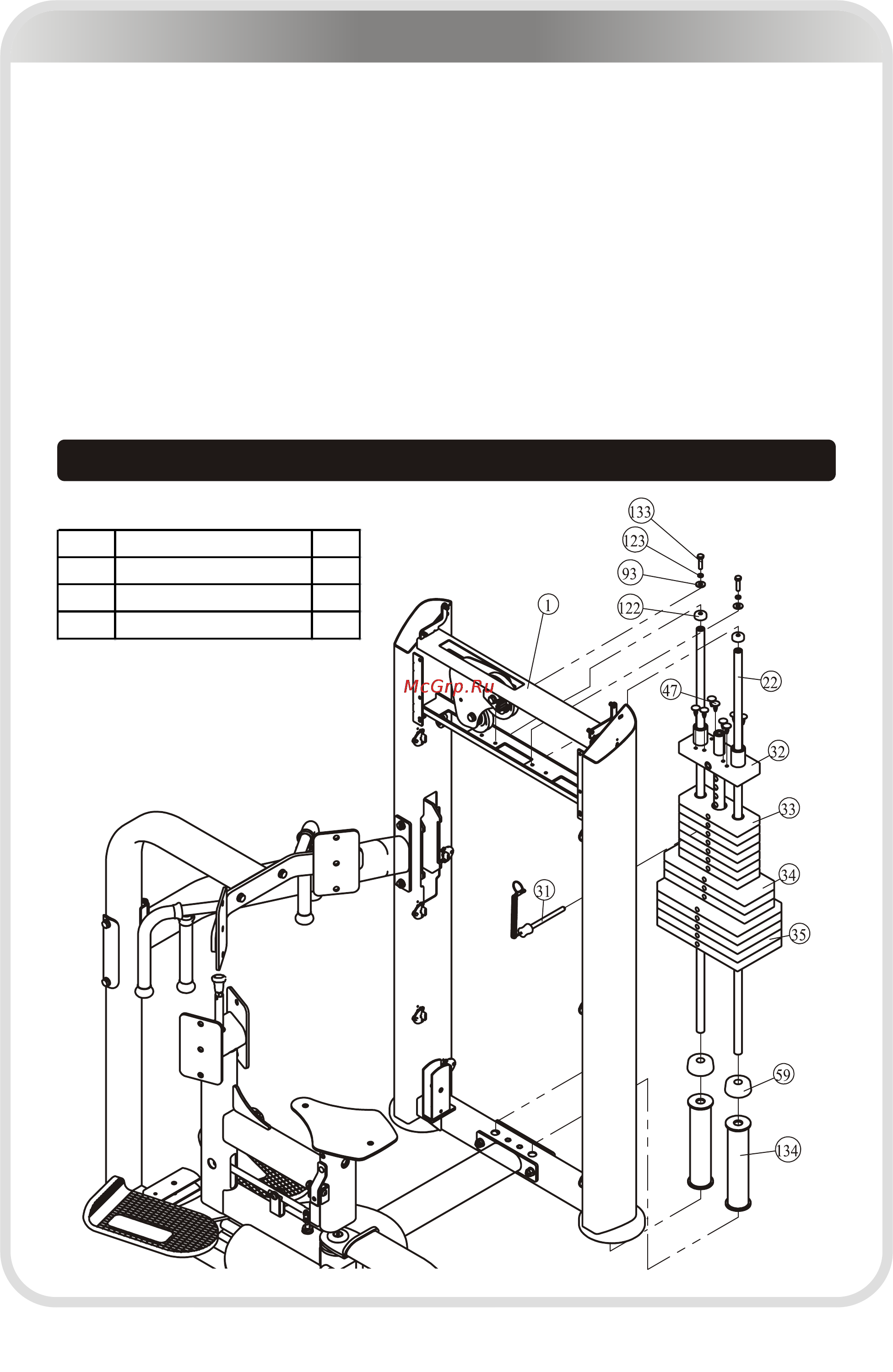

STEP 3

1. Attach:

● two Φ19*1177 Guide Rods (#22) ● two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#59)

● two Weight Stack Spaces (#134) ● five Weight Plate 15LBS (#35)

● three Weight Plate 10LBS (#34) ● seven Weight Plate 5LBS (#33)

● one Top Plate (#32)

to the Weight Stack Frame (#1) using:

●

● two M8*30 HHB (#133) two Φ8 Spring Washers (#123)

● two Φ9*Φ22*1.6 Flat Washers (#93) ● two Φ29*Φ19*10 Rubber Plugs (#122)

2. Attach the Selector Pin W/Coil (#31) to the Top Plate (#32).

3. Attach eight Φ8*Φ20*23 Buttons (#47) to the Top Plate (#32).

Note: Wrench Tighten Bolts and Nylon Lock nuts.

Item Description Qty

33 Weight Plate 5LBS 7

34 Weight Plate 10LBS 3

35 Weight Plate 15LBS 5
