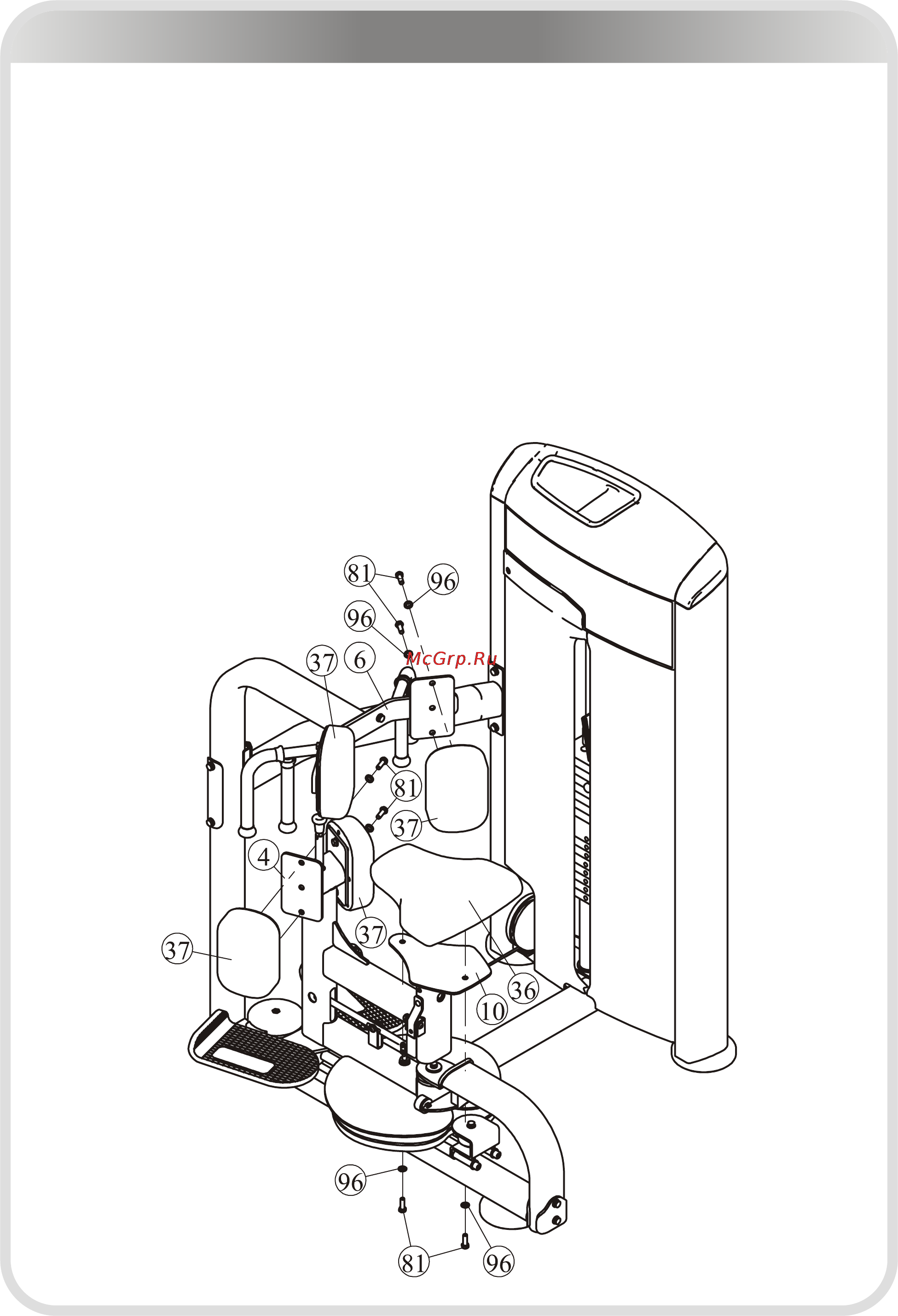

STEP 6

─ 20 ─

Assembly

1. Attach the Seat Pad (#36) to the Seat Pad Support (#10), Using:

● two M10*30 HHB (#81)

● two Φ11*Φ20*2 Flat Washers (#96)

2. Attach two Arm Pad (#37) to the Support of Chest Pad (#6), Using:

● four M10*30 HHB (#81)

● four Φ11*Φ20*2 Flat Washers (#96)

3. Attach two Arm Pad (#37) to the Swivel Frame (#4), Using:

● four M10*30 HHB (#81)

● four Φ11*Φ20*2 Flat Washers (#96)

Note: Wrench Tighten Bolts and Nylon Lock nuts.
