─ 17 ─

Assembly

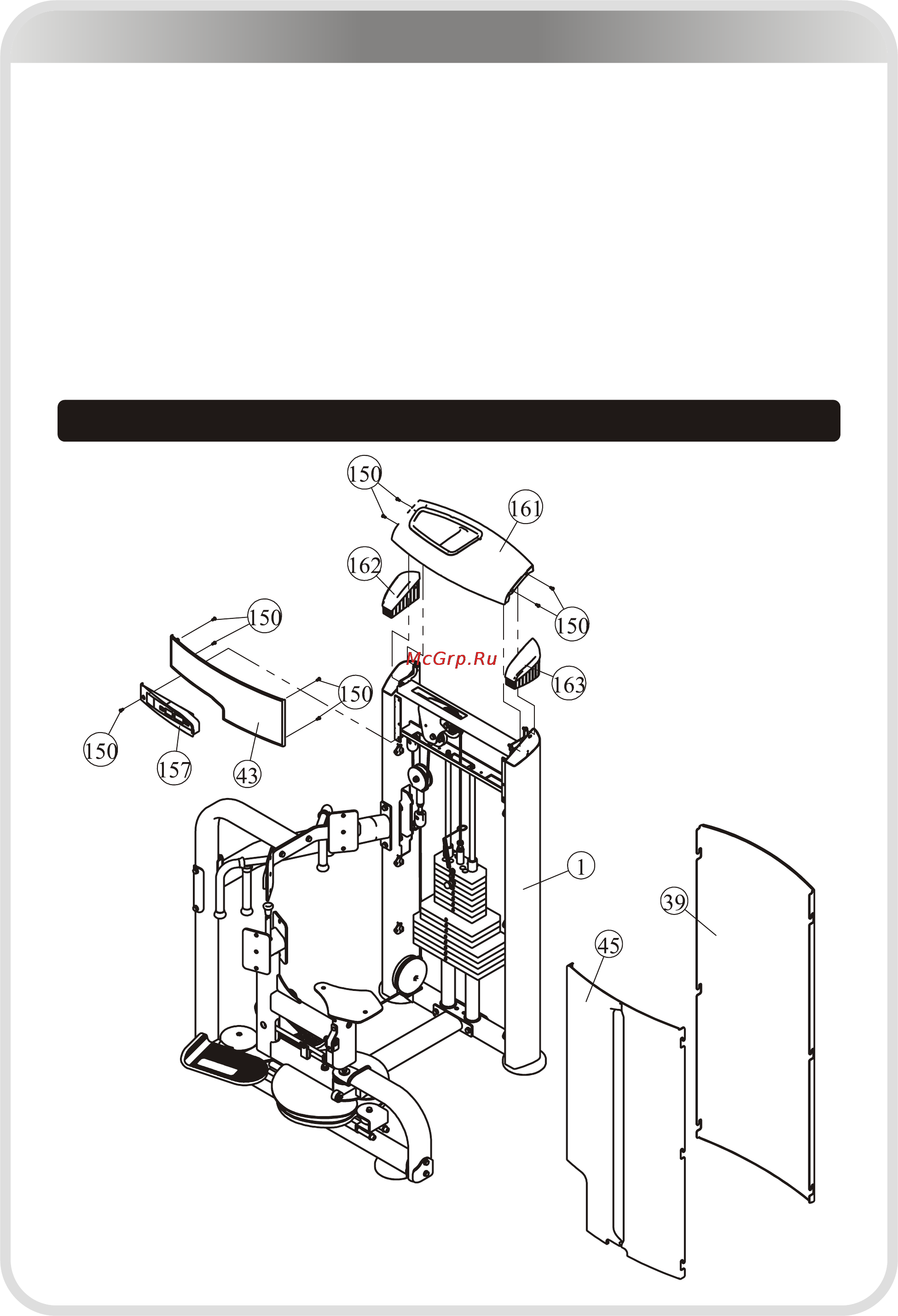

STEP 5

Here is the assembly instruction for Console PCB !

1. Attach one Front Shroud (#45) to the Weight Stack Frame(#1).

2. Attach one Rear Shroud (#39) to the Weight Stack Frame(#1).

3. Attach the Top Front Shroud (#43) and the Console PCB (#157) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#150)

4. Attach the Top Cover (#161) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#150)

5. Attach the Left Plug (#162) and Right Plug (#163) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.
