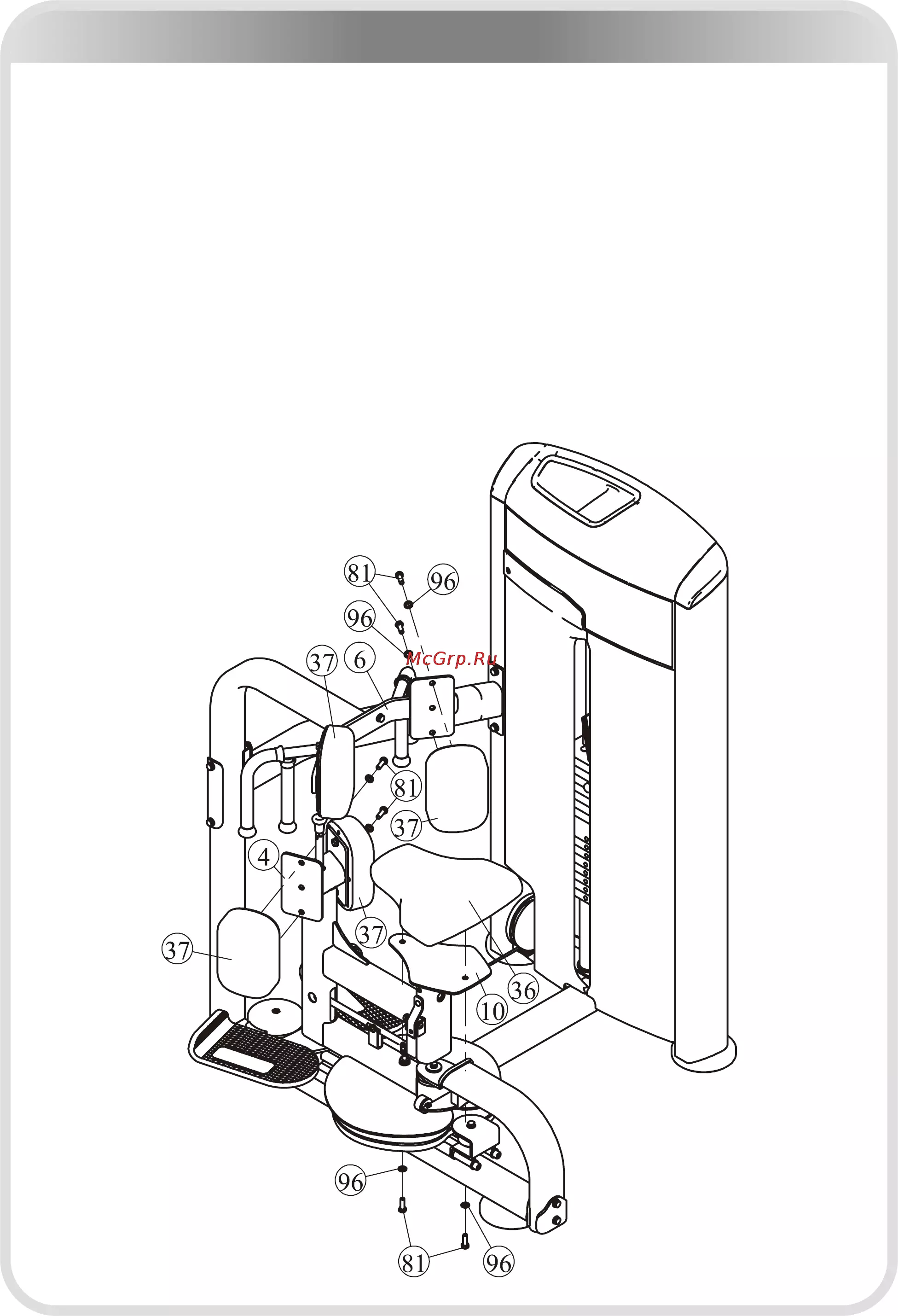

Assembly

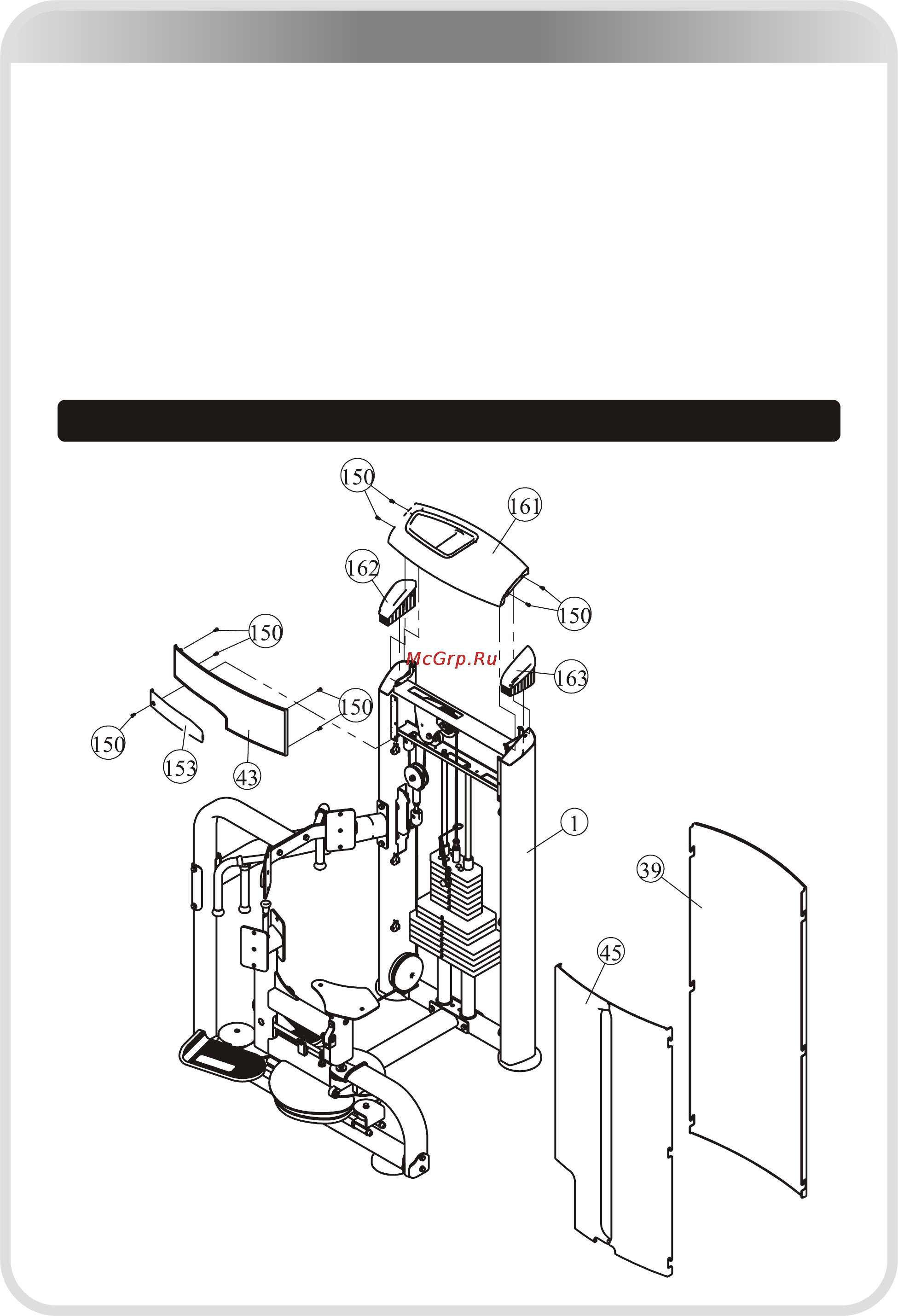

Here is the assembly instruction for Plastic Cover !

STEP 5

1. Attach one Front Shroud (#45) to the Weight Stack Frame(#1).

2. Attach one Rear Shroud (#39) to the Weight Stack Frame(#1).

3. Attach the Top Front Shroud (#43) and the Plastic Cover (#153) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#150)

4. Attach the Top Cover (#161) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#150)

5. Attach the Left Plug (#162) and Right Plug (#163) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.
