Assembly

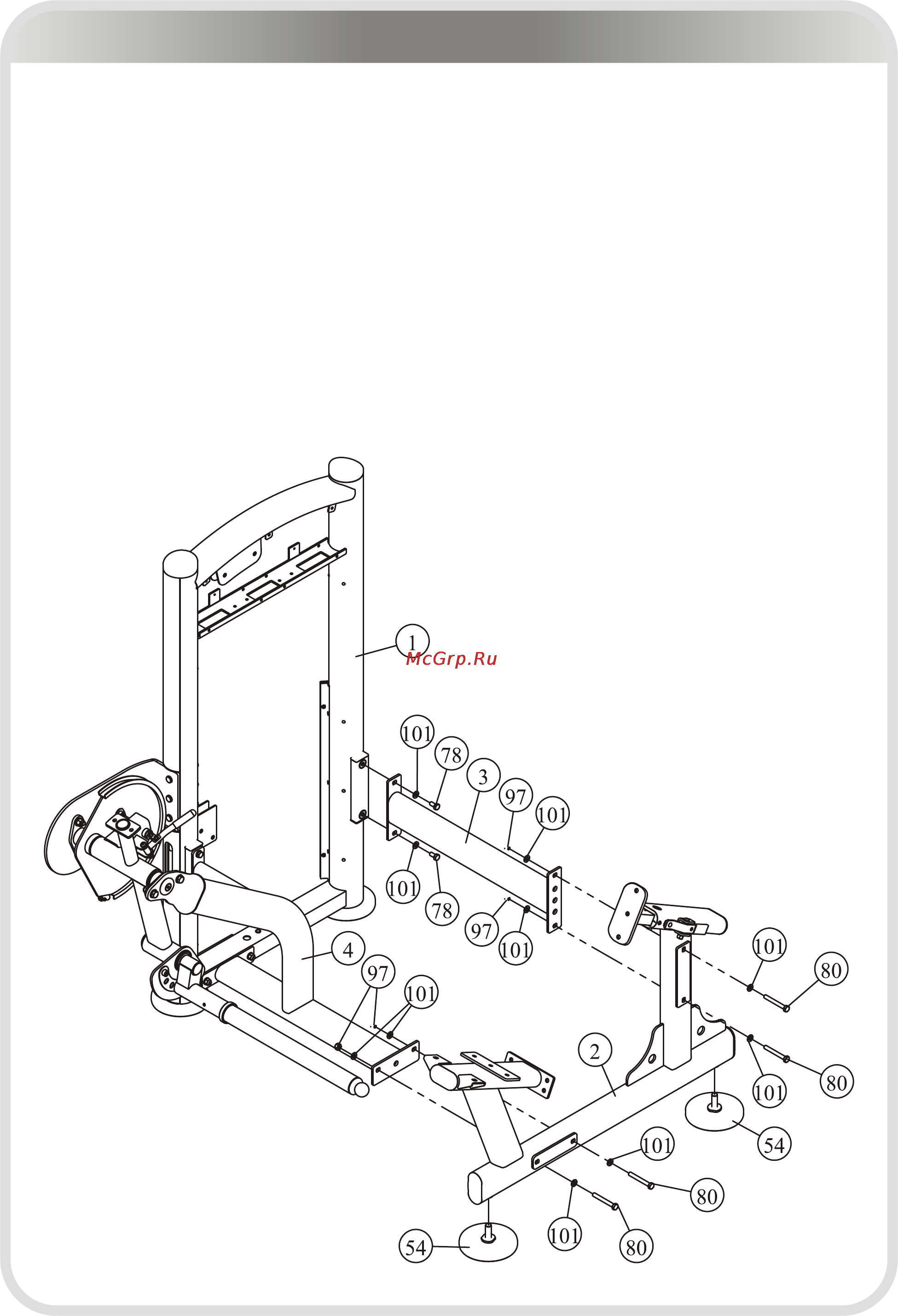

STEP 3

1. Attach two Adjustable Foot Plate (#54) to the Main Frame(#2).

2. Attach the Main Frame (#2) to the Bottom Cross Brace (#4) using:

two M10*80 HHB (#80) four Φ11*Φ20*2 Flat Washer (#101)

two M10 Nylon Lock Nut (#97)

3. Attach the Rear Cross Brace (#3) to the Main Frame (#2) & Weight Stack

Frame (#1) using:

two M10*20 HHB (#78) two M10*80 HHB (#80)

six Φ11*Φ20*2 Flat Washer (#101) two M10 Nylon Lock Nut (#97)

Note: Hand tighten Βolts and Nylon Lock nuts.
