─ 18 ─

AssemblyAssembly

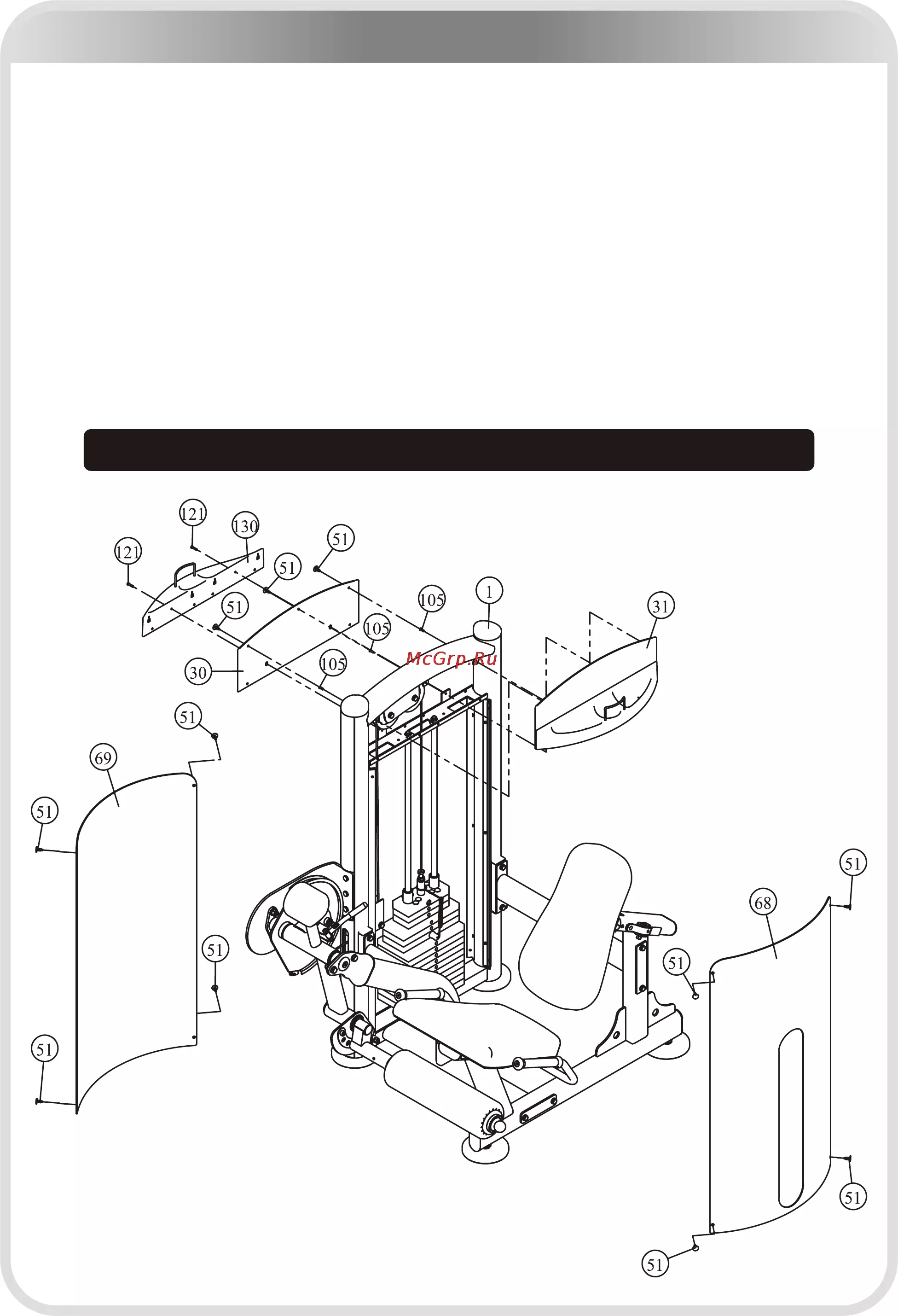

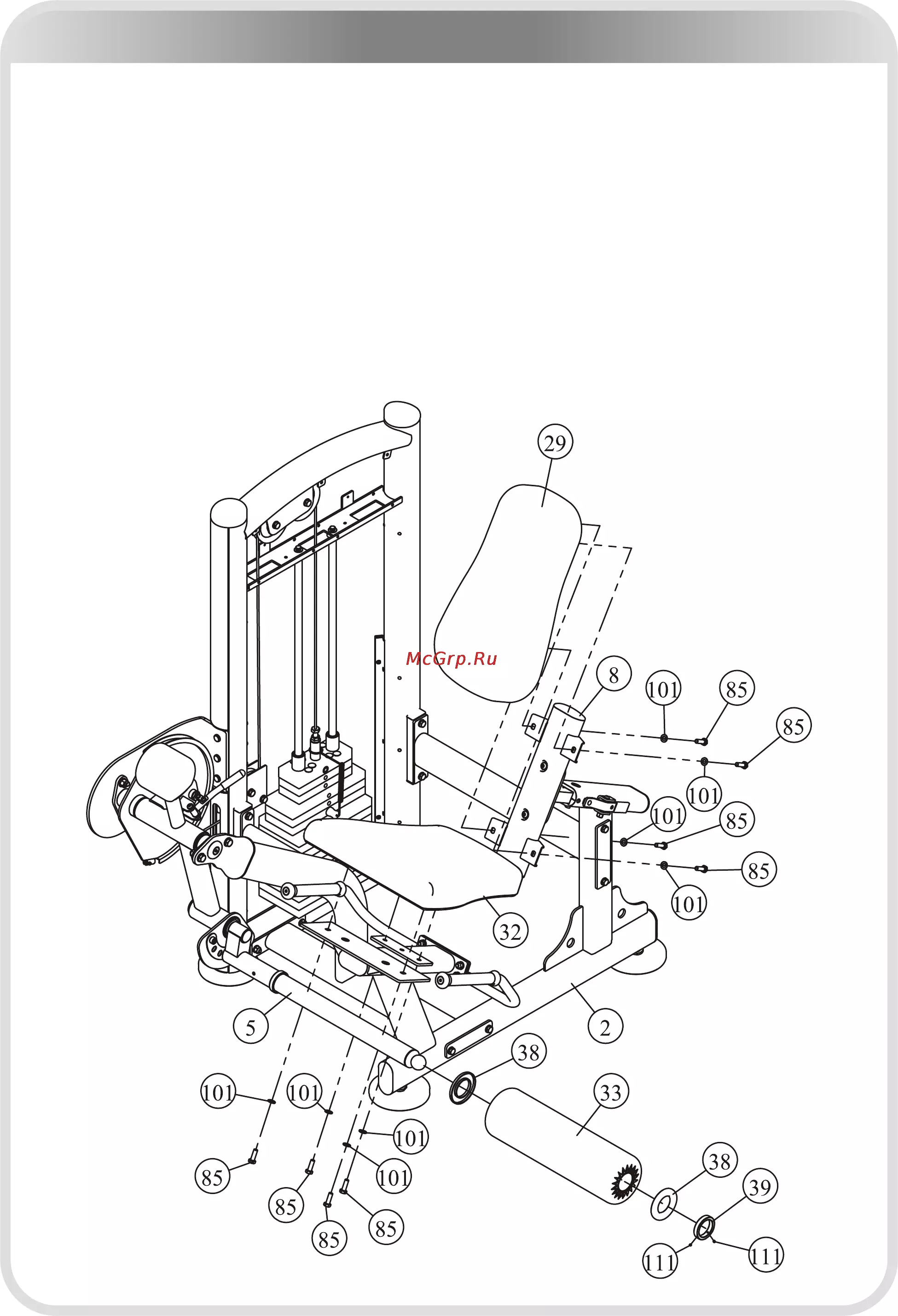

STEP 7

1. Attach the Seat Pad (#32) to the Main Frame (#2) using:

four Φ11*Φ20*2 Flat Washer (#101) four M10*30 HHB (#85)

2. Attach the Roller (#33) to the Swing Tube (#5) using:

two Big Collar (#38) one Φ65.6*Φ50.5*12.7 Collar (#39)

two 10-32*6.4 Socket Set Screw (#111)

3. Attach the Back Pad (#29) to the Back Pad Support (#8) using:

four M10*30 HHB (#85) four Φ11*Φ20*2 Flat Washer (#101)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
