AssemblyAssembly

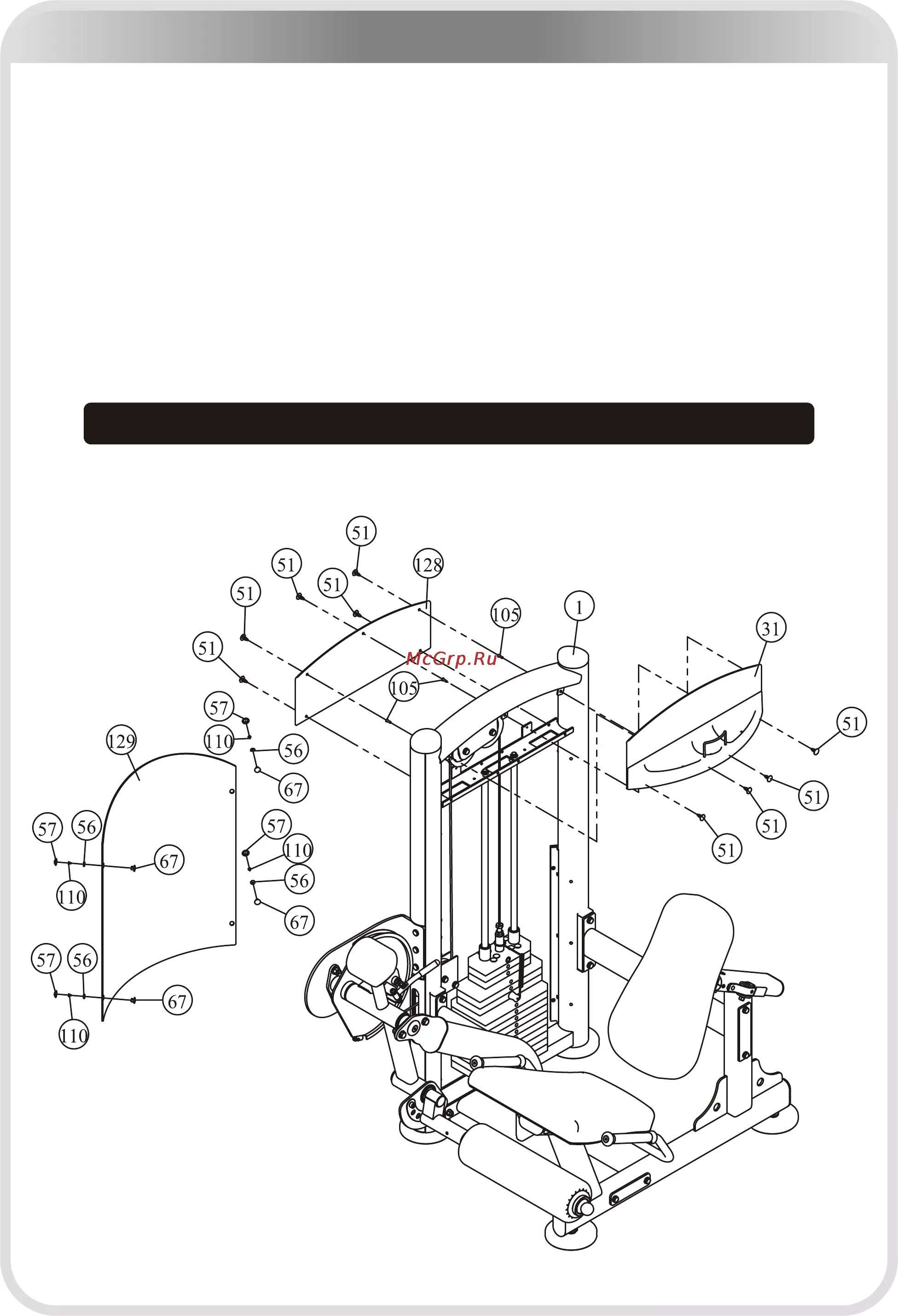

STEP 8

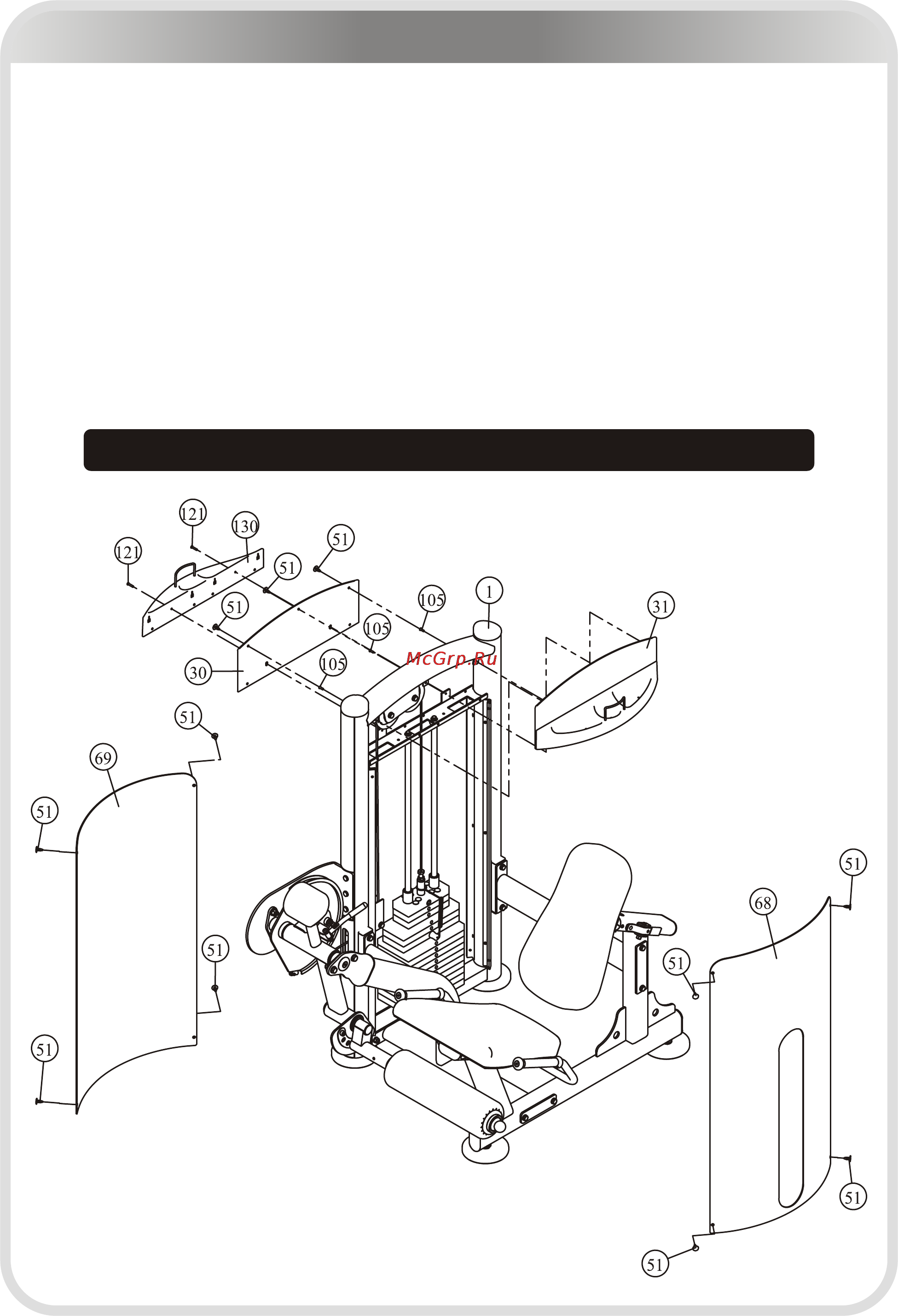

1. Attach the Front Shroud (#68) & Rear Shroud (#69) to the Weight Stack

Frame (#1) using:

eight Button (#51)

2. Attach the Top Front Shroud (#31) to the Weight Stack Frame (#1) using:

three M5*16 Flat Philips Screw (#105)

3. Attach the Top Rear Shroud A (#30) & the Rear Support (#130) to the Weight

Stack Frame (#1) using:

three Button (#51) two M5*25 Flat Philips Screw (#121)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Long Shroud !
