─ 14 ─

AssemblyAssembly

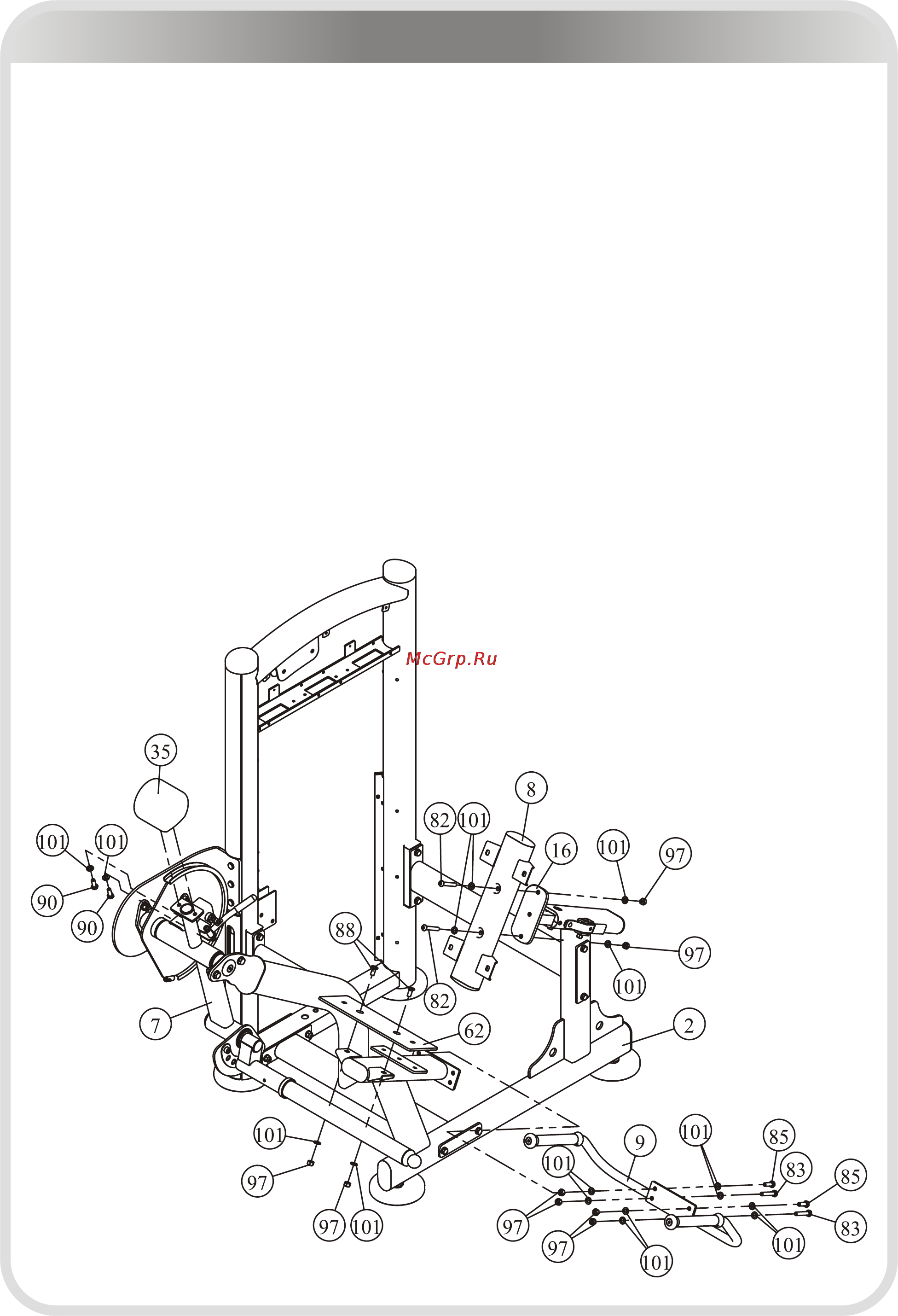

STEP 4

1. Attach the Counter Poise Block (#35) to the Pivot Arm (#7) using:

two M10*25 HHB (#90) two Φ11*Φ20*2 Flat Washer (#101)

2. Attach the Seat Pad Plate (#62) to the Main Frame (#2) using:

two M10*25 FHCS (#88) two Φ11*Φ20*2 Flat Washer (#101)

two M10 Nylon Lock Nut (#97)

3. Attach the Back Pad Support (#8) to the Adjustable Tube (#16) using:

two M10*65 BHCS (#82) four Φ11*Φ20*2 Flat Washer (#101)

two M10 Nylon Lock Nut (#97)

4. Attach the Handle (#9) to the Main Frame (#2) using:

two M10*30 HHB (#85) two M10*55 HHB (#83)

eight Φ11*Φ20*2 Flat Washer (#101) four M10 Nylon Lock Nut (#97)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
