─ 15 ─

AssemblyAssembly

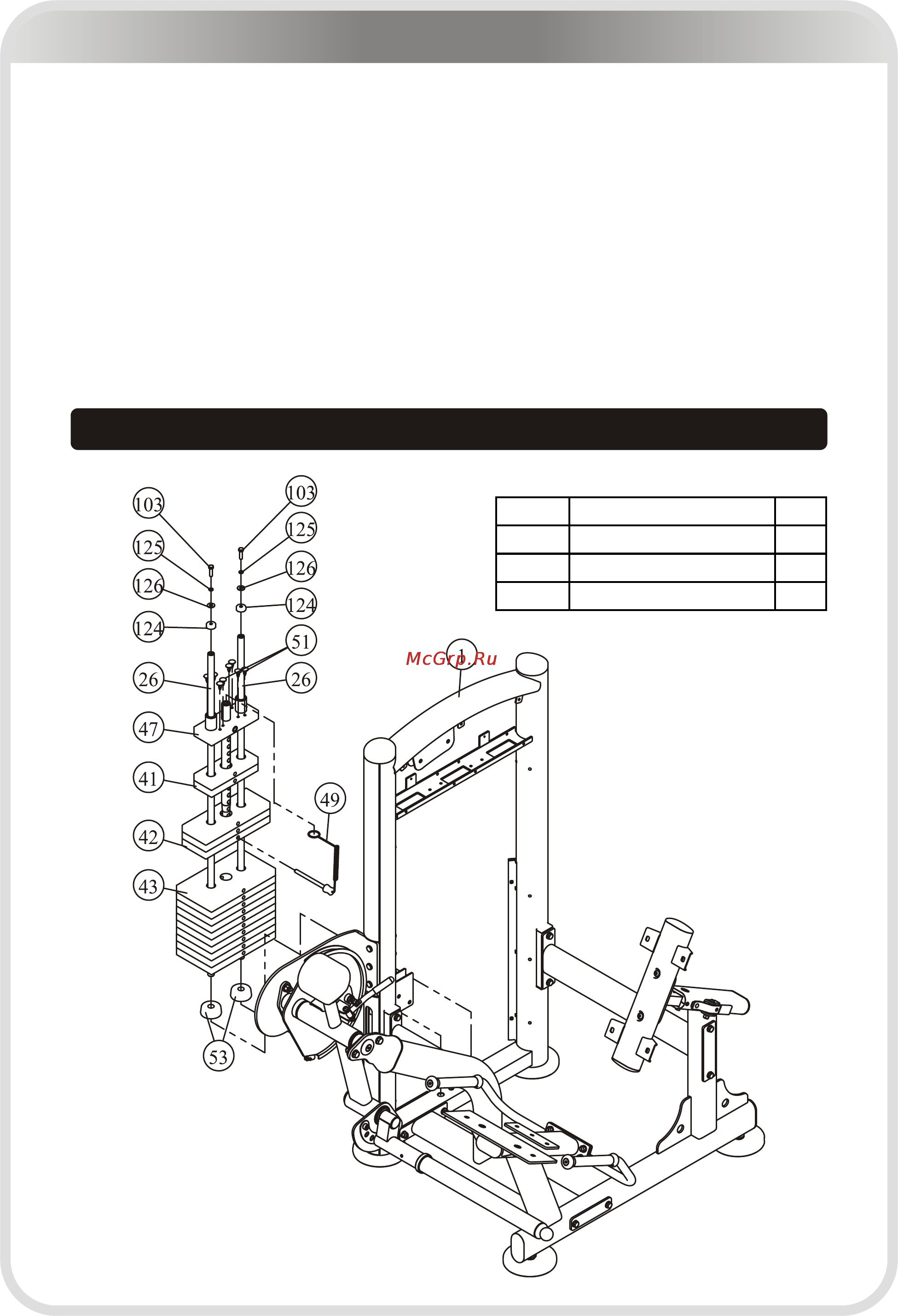

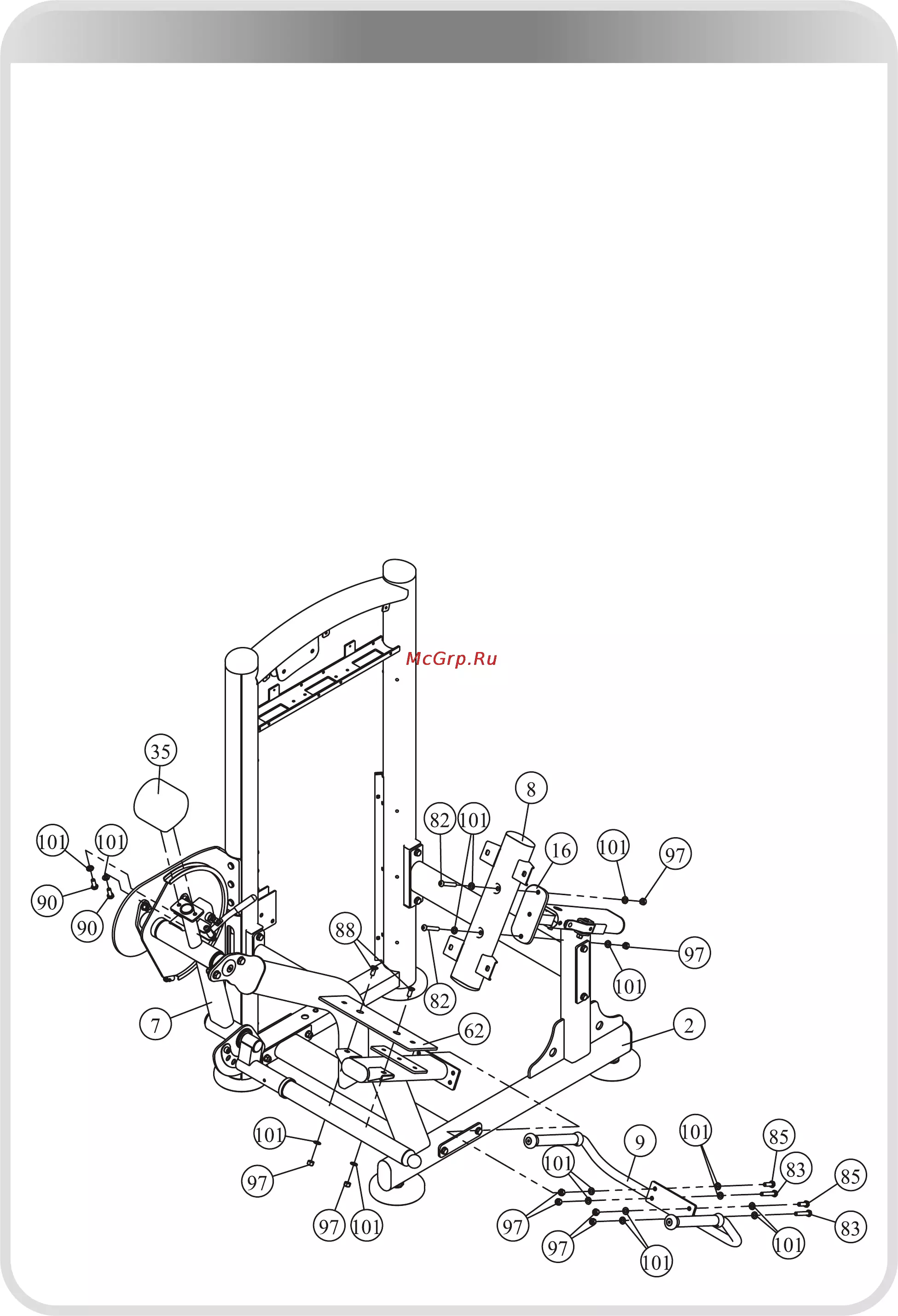

STEP 5

1. Attach:

two Guide Rod (#26) two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#53)

ten Weight Plate 15LBS (#43) three Weight Plate 10LBS (#42)

two Weight Plate 5LBS (#41) one Top Plate (#47)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#103) two Φ8 Spring Washers (#125)

two Φ9*Φ22*1.6 Flat Washer (#126) two Φ29*Φ19*10 Rubber Plug (#124)

2. Attach the Selector Pin W/Coil (#49) & eight Button (#51) to the Top Plate (#47).

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Item No. Description Qty

41 Weight Plate 5LBS 2

42 Weight Plate 10LBS 3

43 Weight Plate 15LBS 10

200LBS Weights

Here is the assembly instruction for 200LBS Weights !
