─ 17 ─

AssemblyAssembly

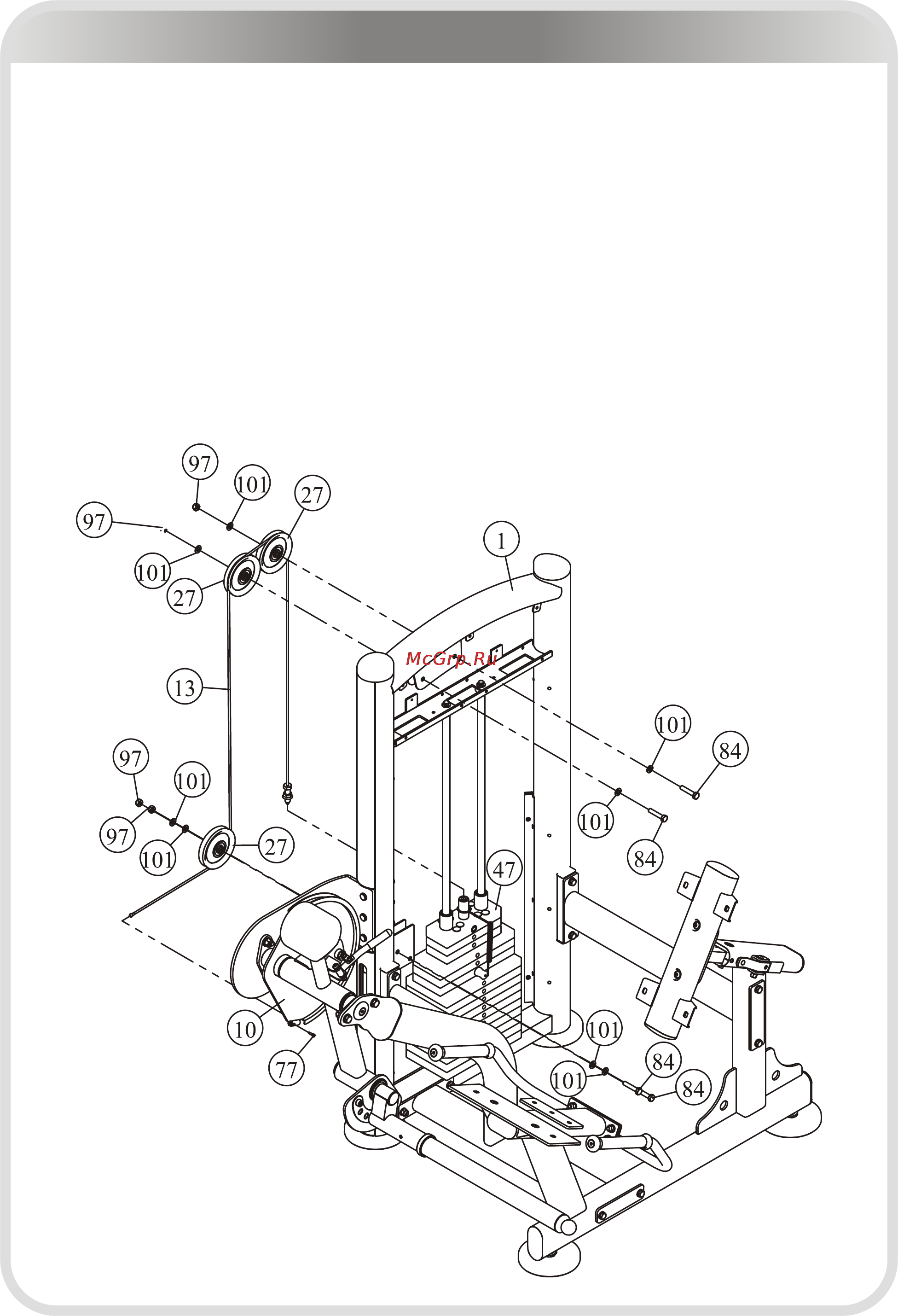

STEP 6

1. Attach the Cable (#13) to the Top Plate (#47).

2. Attach two 4.5" Pulley (#27) to the Weight Stack Frame (#1) using:

two M10*50 HHB (#84) four Φ11*Φ20*2 Flat Washer (#101)

two M10 Nylon Lock Nut (#97)

3. Attach one 4.5" Pulley (#27) to the Weight Stack Frame (#1) using:

two M10*50 HHB (#84) four Φ11*Φ20*2 Flat Washer (#101)

two M10 Nylon Lock Nut (#97)

4. Attach the Cable (#13) to the Cam (#10) using:

one M4*15 SHCS (#77)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
