AssemblyAssembly

STEP 8

1. Attach the Shroud (#129) to the Weight Stack Frame (#1) using:

four Connect Button (#67) four Plastic Washer (#56)

four ST4.2*10 Self-Tapping Screw (#110) four Plastic Cover (#57)

2. Attach the Top Front Shroud (#31) to the Weight Stack Frame (#1) using:

four Button (#51) three M5*16 Flat Philips Screw (#105)

3. Attach the Top Rear Shroud (#128) to the Weight Stack Frame (#1) using:

five Button (#51)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

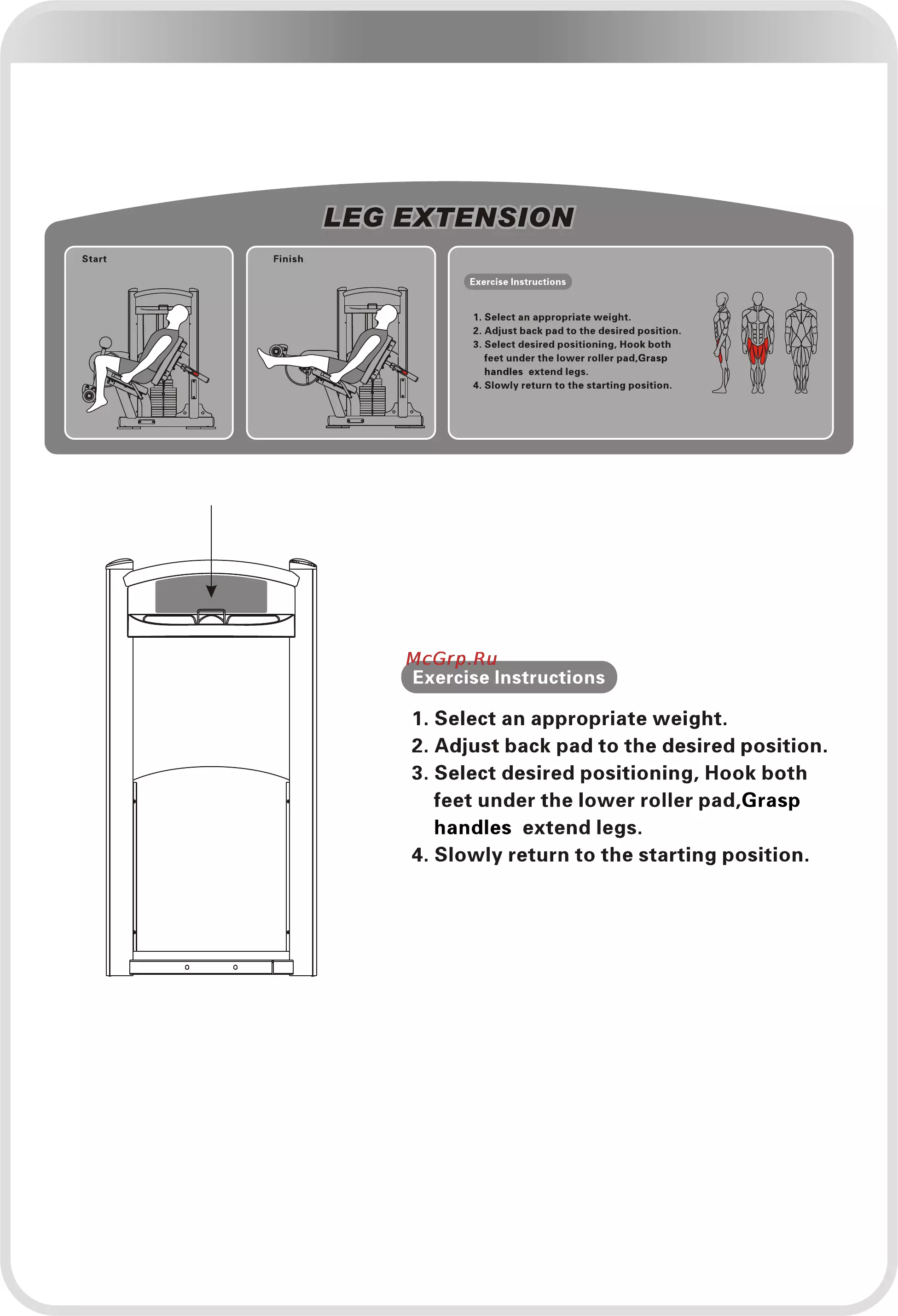

Here is the assembly instruction for Shor t Shroud !
