Assembly
STEP 1

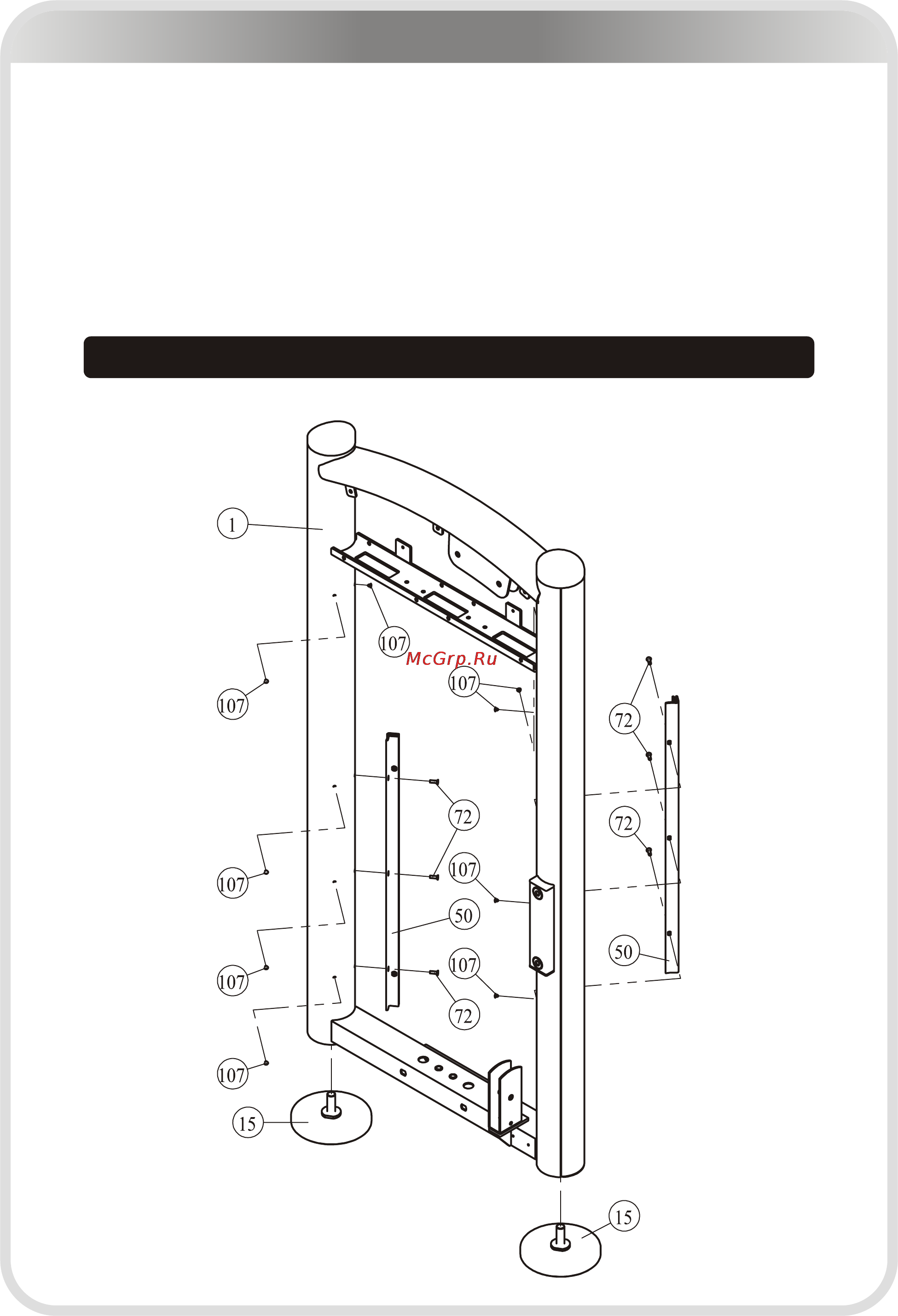

1. Attach two Adjustable Foot Plates (#15) to the Weight Stack Frame (#1).
2. Attach two Short Shroud Retainer Plates (#50) to the Weight Stack Frame
(#1) using:
six M5*16 Flat Philips Screws (#72)
3. Attach nine Buttons (#107) to the Weight Stack Frame (#1).
Note: Wrench Tighten Screws.
Here is the assembly instruction for Shor t Shroud !
