─ 13 ─

Assembly

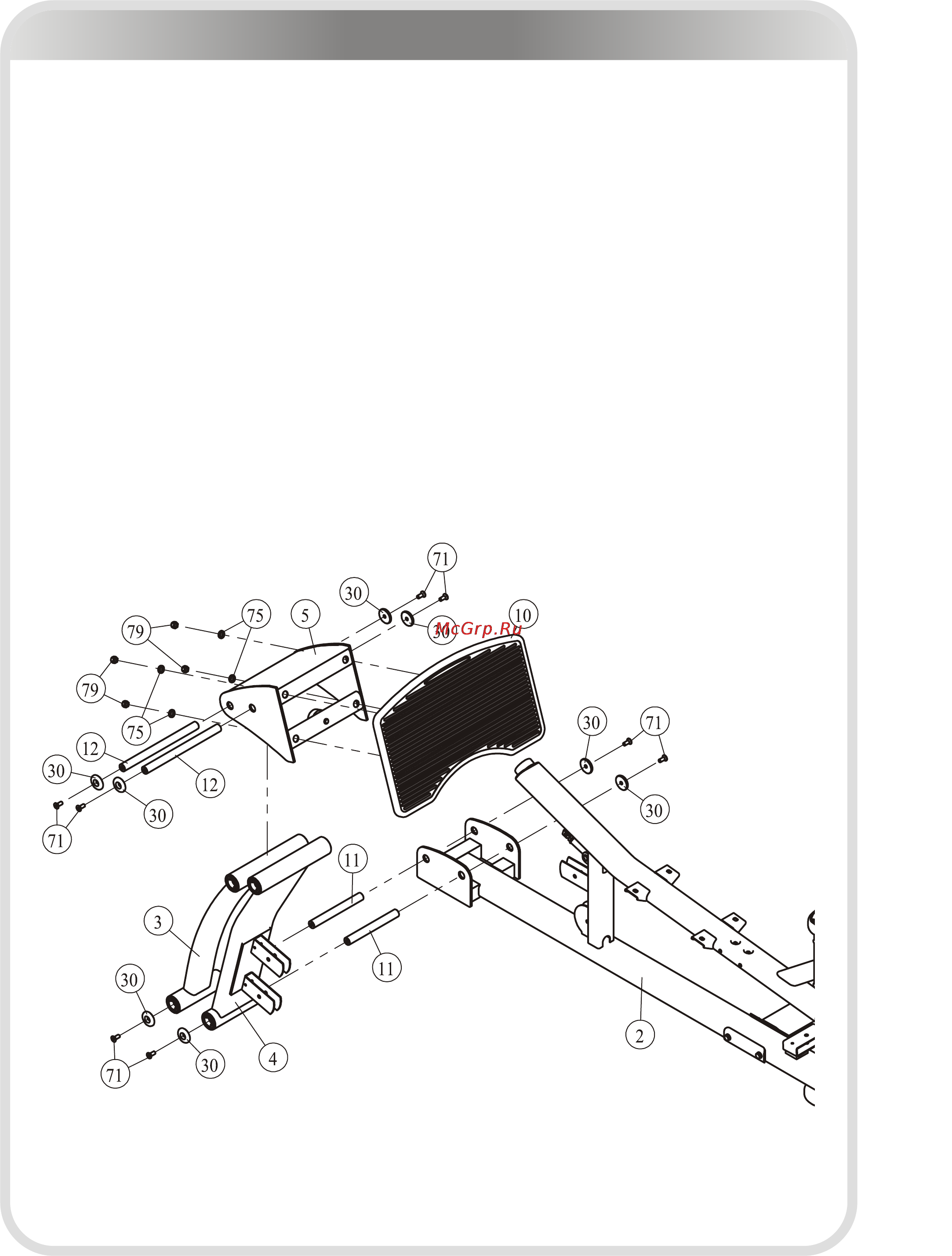

STEP 3

1. Attach the Footplate (#10) to the Connect Frame (#5) using:

four Φ13*Φ24*1.5 Flat Washers (#75) four M12 Nylon Lock Nuts (#79)

2. Attach the Back Sway Frame (#4) and the Front Sway Frame (#3) to the Main

Frame (#2) using:

two Φ25.4*222 Pivot Axles (#11) four Φ50*Φ10.5*8 Aluminium Caps (#30)

four M10*25 FHCS (#71)

3. Attach the Connect Frame (#5) to the Back Sway Frame (#4) and the Front

Sway Frame (#3) using:

two Φ25.4*332 Pivot Axles (#12) four Φ50*Φ10.5*8 Aluminium Caps (#30)

four M10*25 FHCS (#71)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
