─ 19 ─

AssemblyAssembly

STEP 7

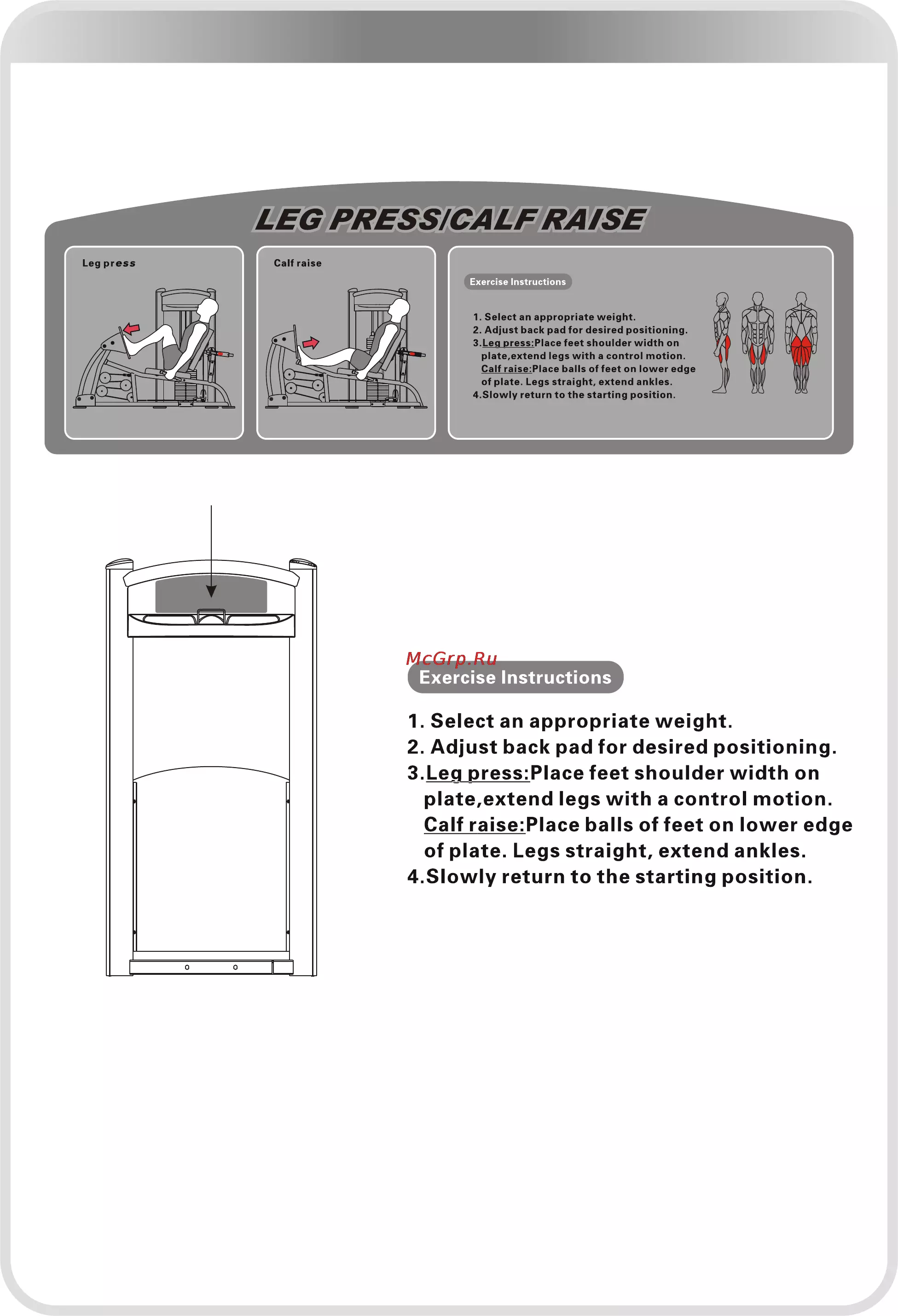

1. Attach the Shroud (#51) to the Weight Stack Frame (#1) using:

four Φ18*12 Connect Buttons (#104) four Φ13*3 Plastic Washers (#106)

four ST4.2*10 Self-Tapping Screws (#78) four Φ21*5.7 Plastic Covers (#105)

2. Attach the Top Front Shroud (#47) and the Support (#48) to the Weight Stack

Frame (#1) using:

four Φ8*Φ20*23 Buttons (#43) three M5*16 Flat Philips Screws (#72)

3. Attach the Top Rear Shroud (#46) to the Weight Stack Frame (#1) using:

five Φ8*Φ20*23 Buttons (#43)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Shor t Shroud !
