─ 14 ─

AssemblyAssembly

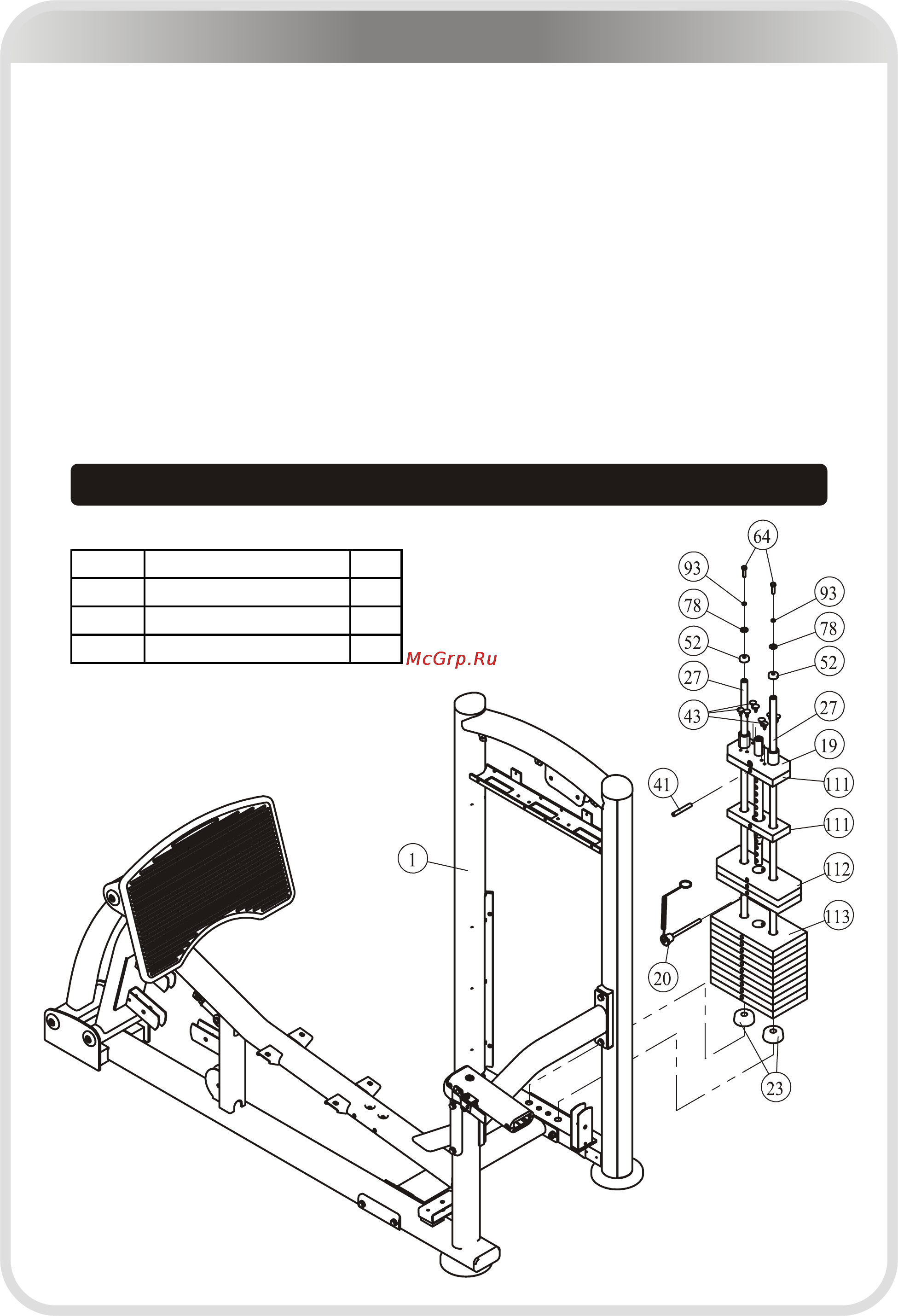

STEP 4

1. Attach:

two Guide Rods (#27) two Φ63.5*Φ19*25.4 Weight Rubber Bumpers (#23)

ten Weight Plate 15LBS (#113) three Weight Plate 10LBS (#112)

two Weight Plate 5LBS (#111) one Top Plate (#19)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#64) two Φ8 Spring Washers (#93)

two Φ9*Φ22*1.6 Flat Washers (#78) two Φ29*Φ19*10 Rubber Plugs (#52)

Attach the Selector Pin W/Coil (#20) to the Top Plate (#19).

2. Attach eight Buttons (#43) to the Top Plate (#19).

3. Put the Top Plate (#19) and first Weight Plate 5LBS (#111) together with the

Split Pin Φ11*76 (#41).

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for 200LBS Weights !

Item No. Description Qty

111 Weight Plate 5LBS 2

112 Weight Plate 10LBS 3

113 Weight Plate 15LBS 10

200LBS Weights
