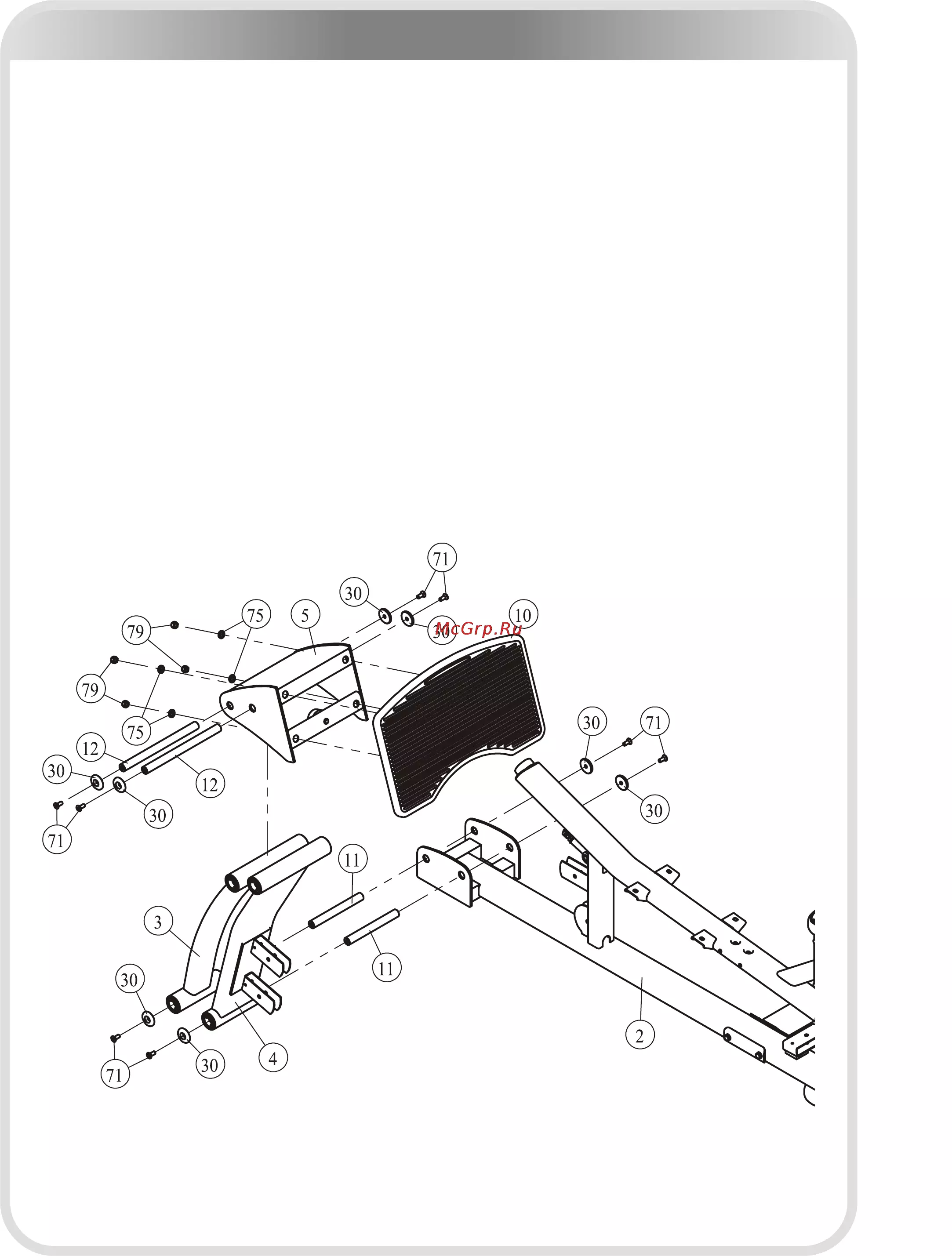

Assembly

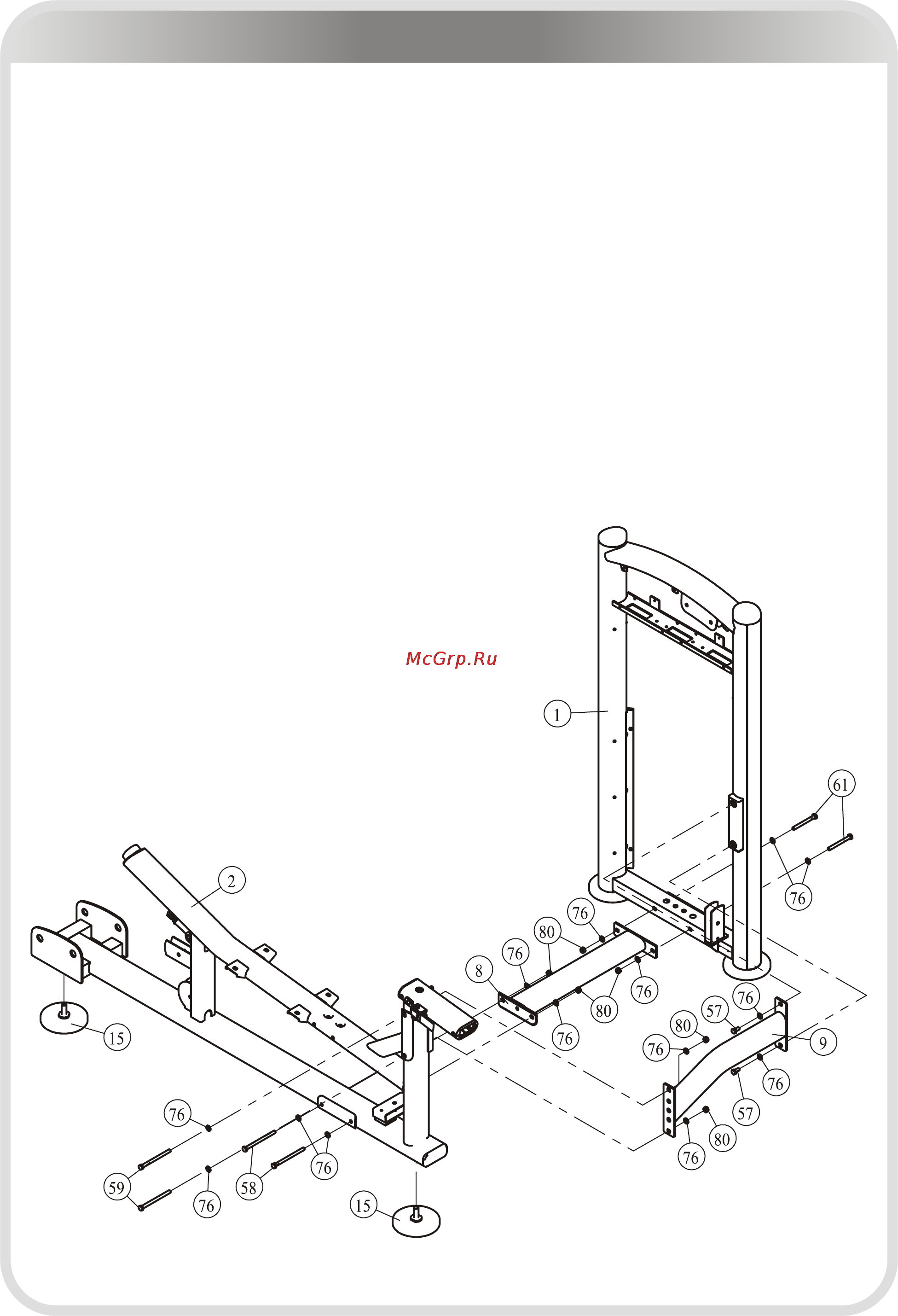

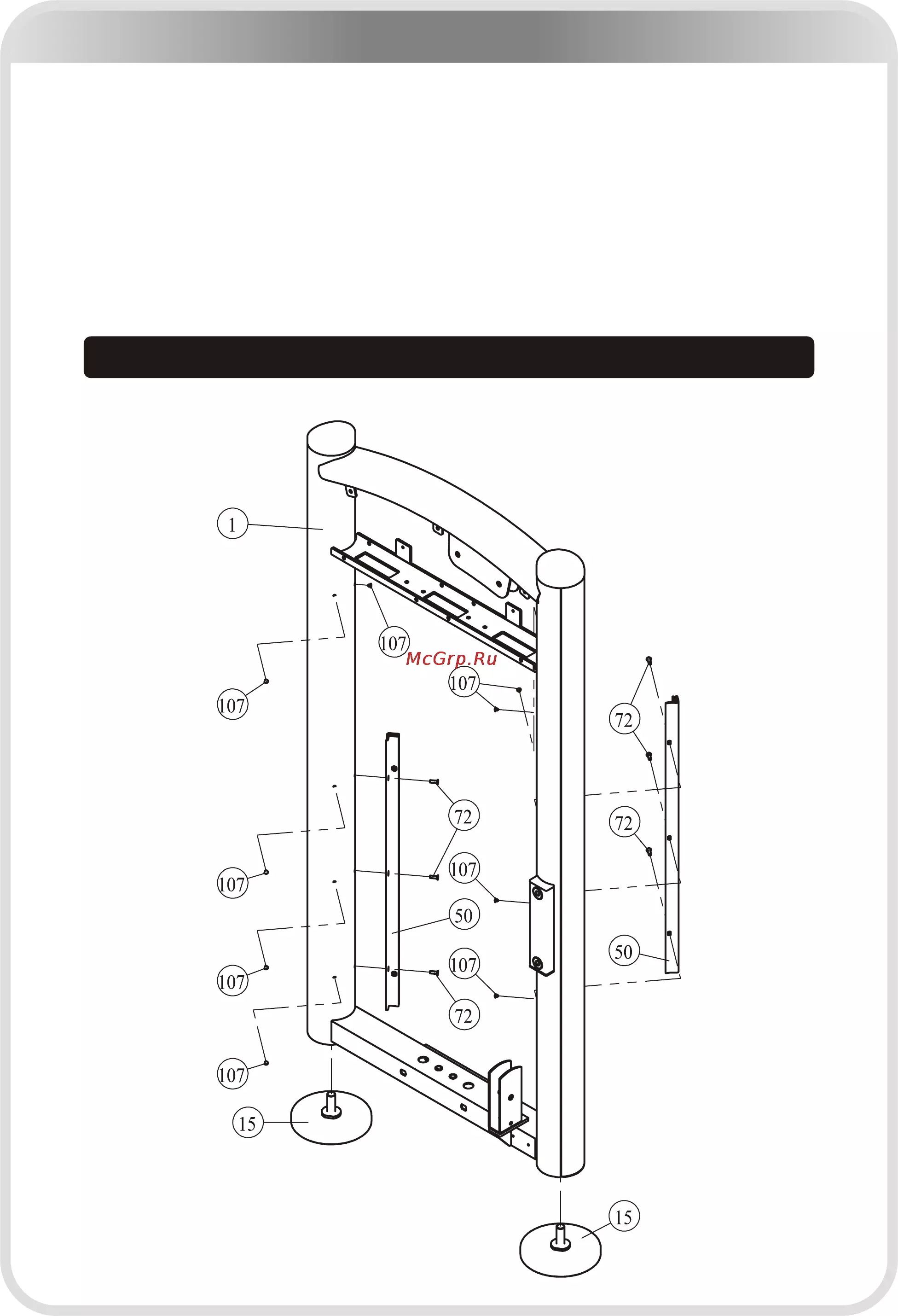

STEP 2

1. Attach two Adjustable Foot Plate (#15) to the Main Frame (#2).

2. Attach the Bottom Cross Brace (#8) to the Weight Stack Frame (#1) and the

Main Frame (#2) using:

two M10*140 HHB (#58) two M10*110 HHB (#61)

eight Φ11*Φ20*2 Flat Washers (#76) four M10 Nylon Lock Nuts (#80)

3. Attach the Rear Cross Brace (#9) to the Weight Stack Frame (#1) and the

Main Frame (#2) using:

two M10*20 HHB (#57) two M10*135 HHB (#59)

six Φ11*Φ20*2 Flat Washers (#76) two M10 Nylon Lock Nuts (#80)

Note: Hand tighten Βolts and Nylon Lock nuts.
