─ 16 ─

AssemblyAssembly

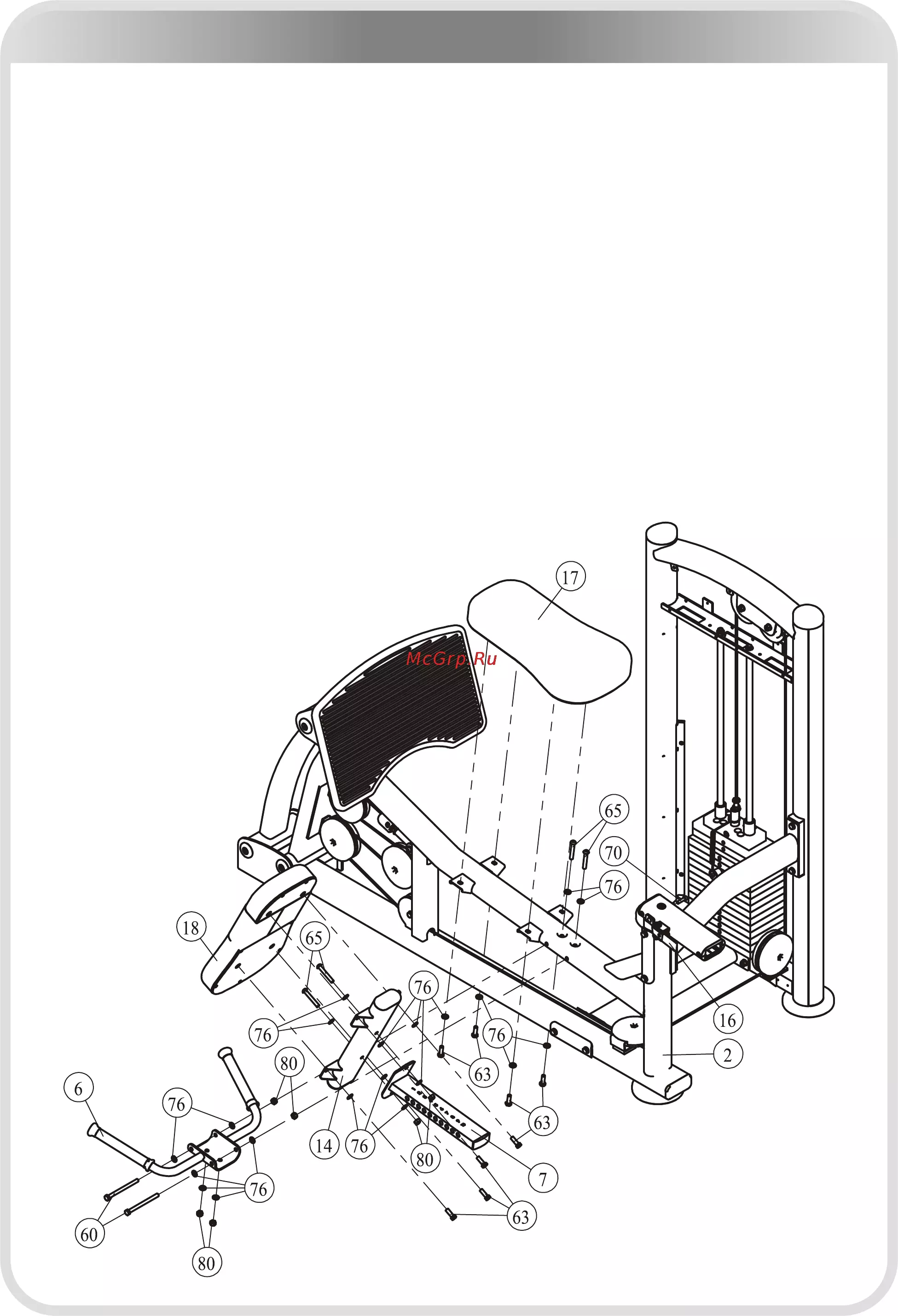

STEP 5

1. Attach three 4.5" Pulleys (#22) to the Weight Stack Frame (#1) using:

two M10*50 HHB (#62) one M10*50 SHCS (#69)

four Φ11*Φ20*2 Flat Washers (#76) three M10 Nylon Lock Nuts (#80)

two Φ140*26 Pulley Covers (#28)

2. Attach three 4.5" Pulleys (#22) to the Main Frame (#2) using:

one M10*50 HHB (#62) two M10*50 SHCS (#69)

three Φ11*Φ20*2 Flat Washers (#76) three M10 Nylon lock Nuts (#80)

three Φ140*26 Pulley Covers (#28)

3. Attach two 4.5" Pulleys (#22) to the Back Sway Frame (#4) using:

two M10*50 SHCS (#69) two M10 Nylon lock Nuts (#80)

four Φ140*26 Pulley Covers (#28)

4. Attach the Cable (#21) to the Top Plate (#19) and the Main Frame (#2).

Note: Wrench Tighten Βolts and Nylon Lock nuts.
