─ 12 ─

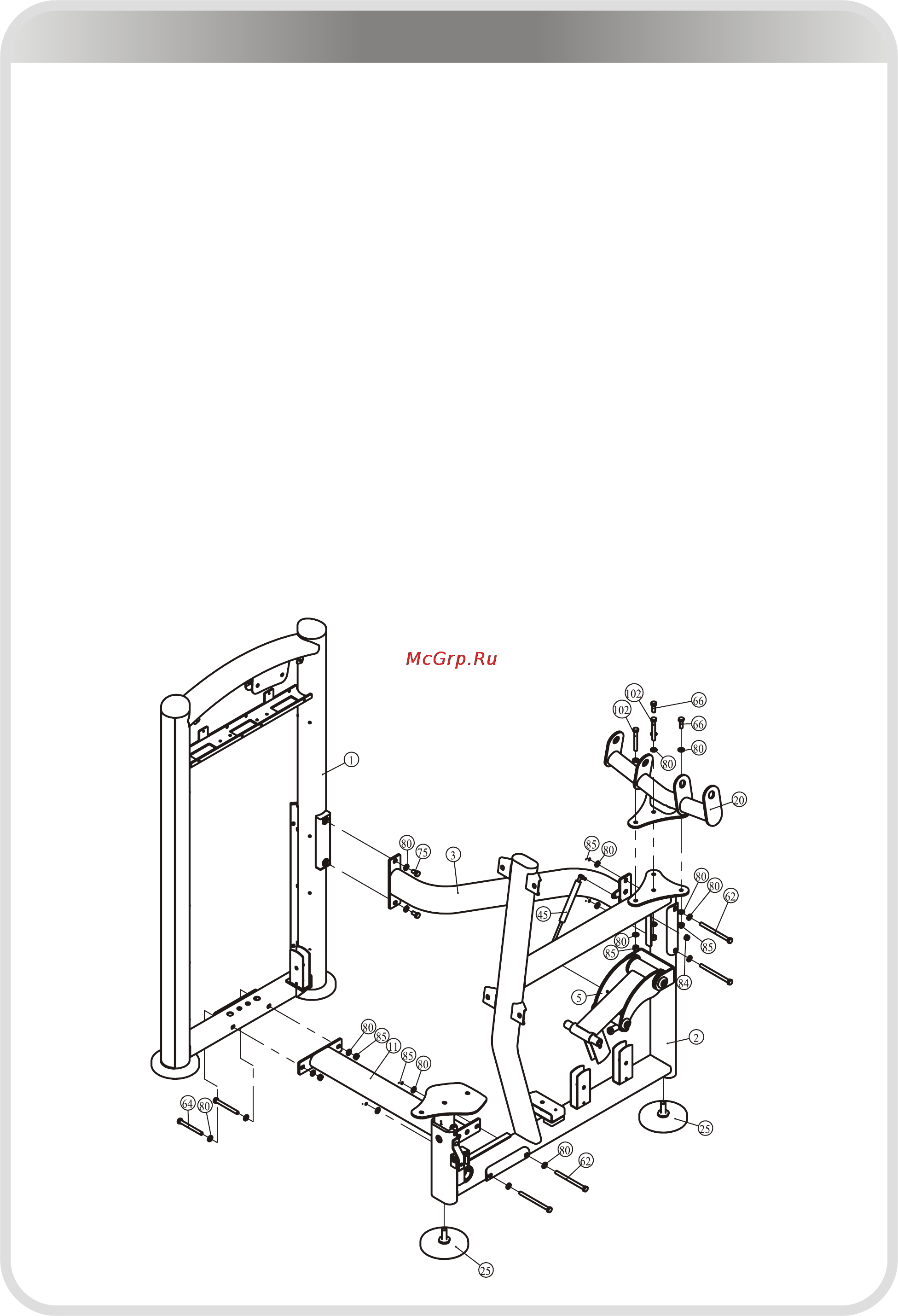

Assembly

STEP 2

1. Attach two Adjustable Foot plate (#25) to the Main Frame (#2).

2. Attach the Bottom Cross Brace (#11) to the Weight Stack Frame (#1) using:

two M10*100 HHB (#64) four Φ11*Φ20*2 Flat Washers (#80)

two M10 Nylon lock Nuts (#85)

3. Attach the Bottom Cross Brace (#11) to the Main Frame (#2) using:

two M10*135 HHB (#62) four Φ11*Φ20*2 Flat Washers (#80)

two M10 Nylon lock Nuts (#85)

4. Attach the Top Cross Brace (#3) to the Weight Stack Frame (#1) using:

two M10*20 HHB (#75) two Φ11*Φ20*2 Flat Washers (#80)

5. Attach the Top Cross Brace (#3) to the Main Frame (#2) using:

two M10*135 HHB (#62) four Φ11*Φ20*2 Flat Washers (#80)

twoM10 Nylon lock Nuts (#85)

6. Attach the Top Frame (#20) to the Main Frame (#2) using:

two M10*80 HHB (#102) two M10*30 HHB (#66)

eight Φ11*Φ20*2 Flat Washers (#80) four M10 Nylon lock Nuts (#85)

7. Attach the Gas Spring (#45) to the Big Rolling Frame (#5) and Top Cross

Brace (#3) using:

one M8 Nylon lock Nut (#84)

Note: Hand tighten Βolts and Nylon Lock nuts.
