AssemblyAssembly
STEP 6

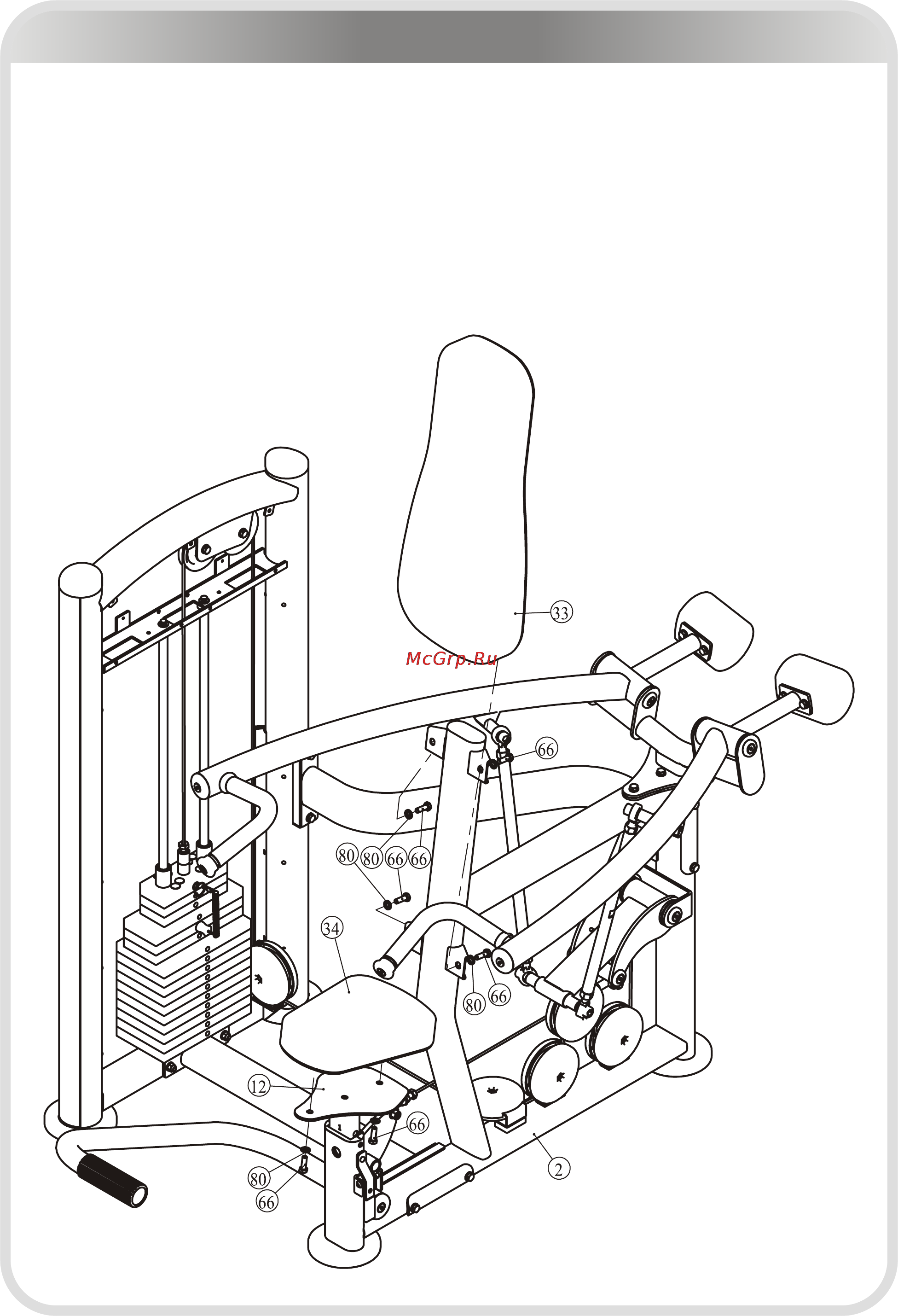

1. Attach the Seat Pad (#34) to the Seat Pad Support (#12) using:
two M10*30 HHB (#66) two Φ11*Φ20*2 Flat Washers (#80)
2. Attach the Back Pad (#33) to the Main Frame (#2) using:
four M10*30 HHB (#66) four Φ11*Φ20*2 Flat Washers (#80)
Note: Wrench Tighten Βolts and Nylon Lock nuts.
