─ 19 ─

AssemblyAssembly

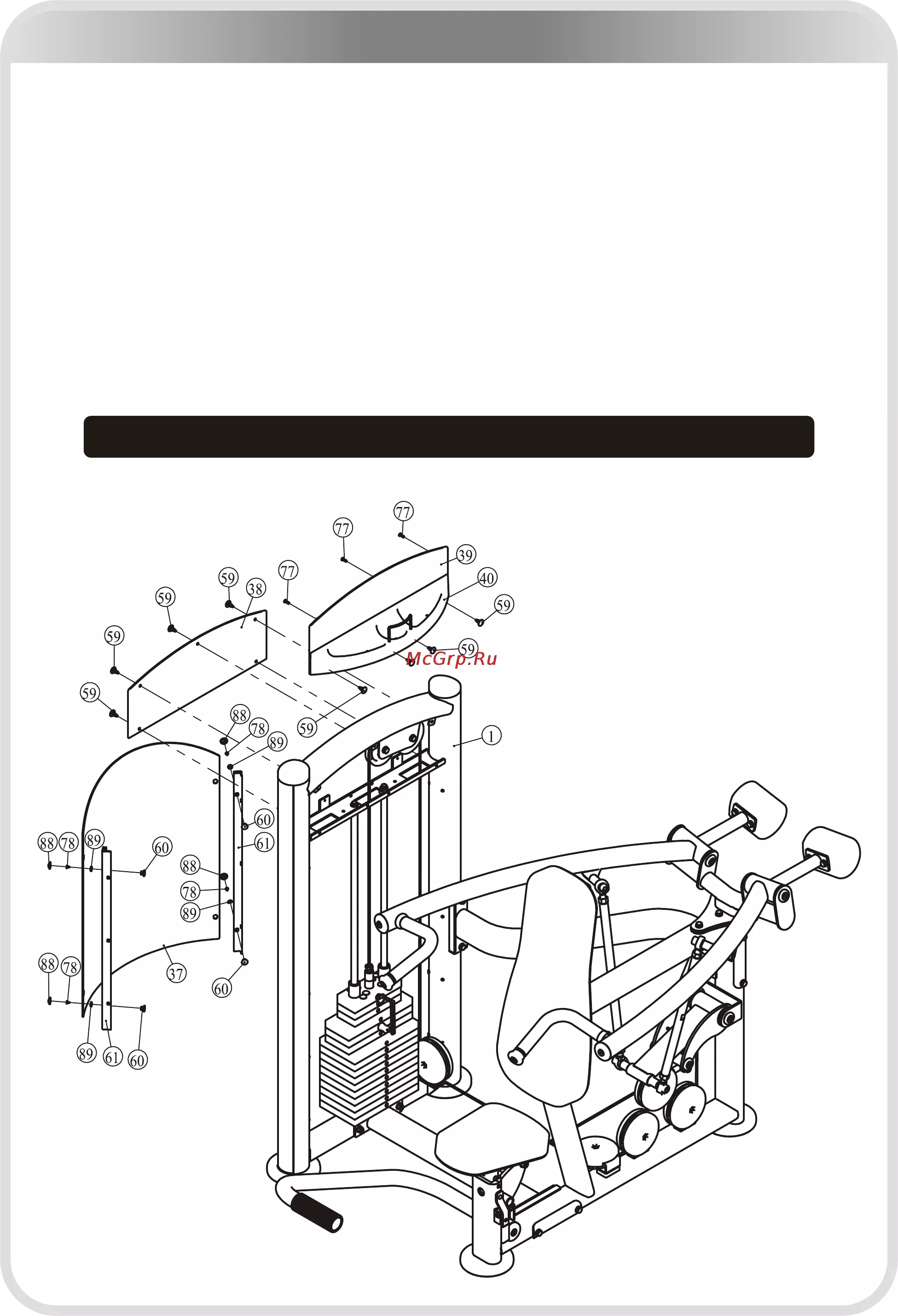

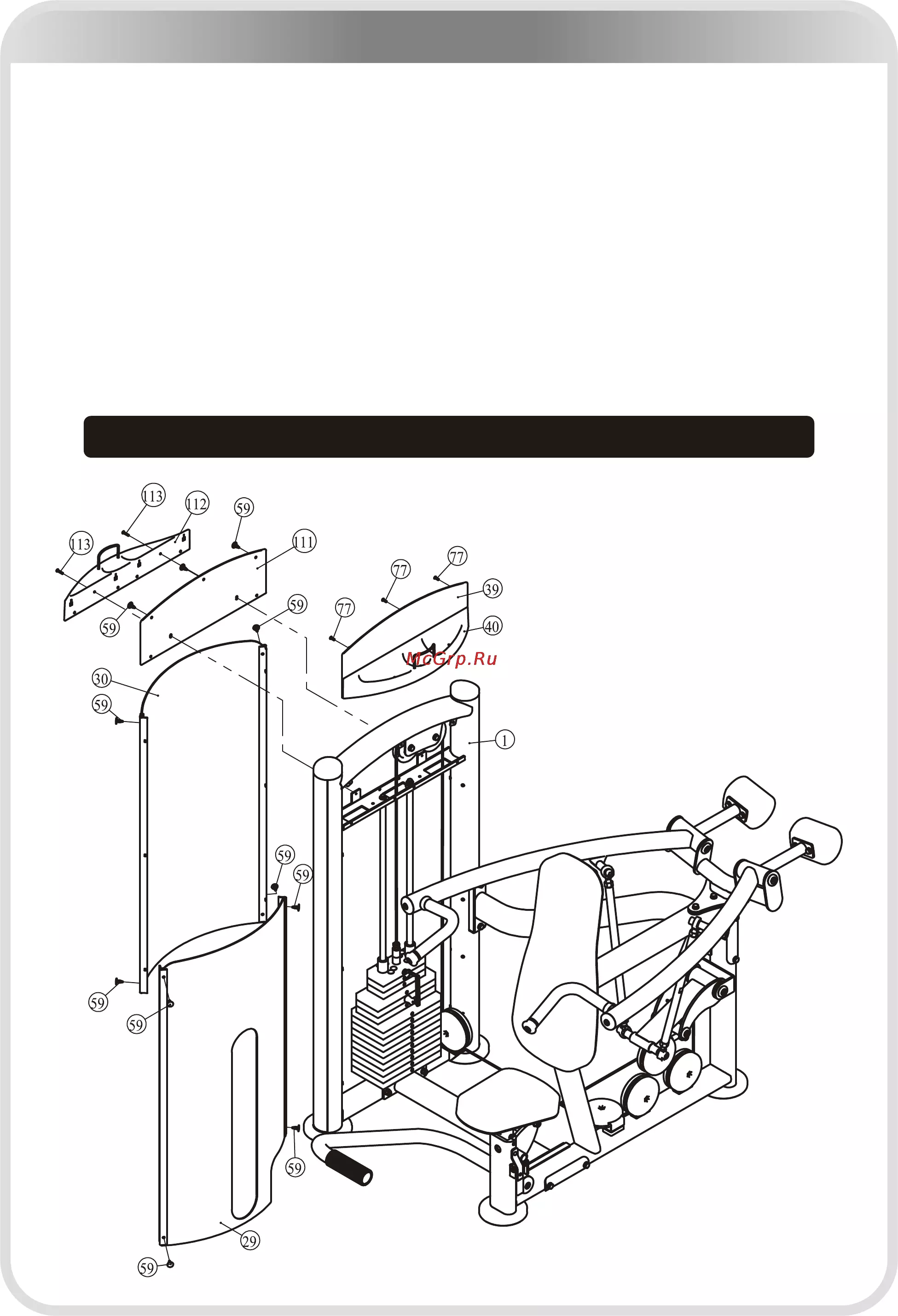

STEP 7

1. Attach one Front Shroud (#29) and one Rear Shroud (#30) to the Weight

Stack Frame (#1) using:

eight Φ8*Φ20*23 Buttons (#59)

2. Attach the Top Front Shroud & The Front Support (#39 & #40) to the Weight

Stack Frame (#1) using:

three M5*16 Flat Philips Screws (#77)

3. Attach the Top Rear Shroud-A (#111) and the Rear Support (#112) to the

Weight Stack Frame (#1) using:

three Φ8*Φ20*23 Buttons (#59) two M5*25 Flat Philips Screws (#113)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Long Shroud !
