AssemblyAssembly

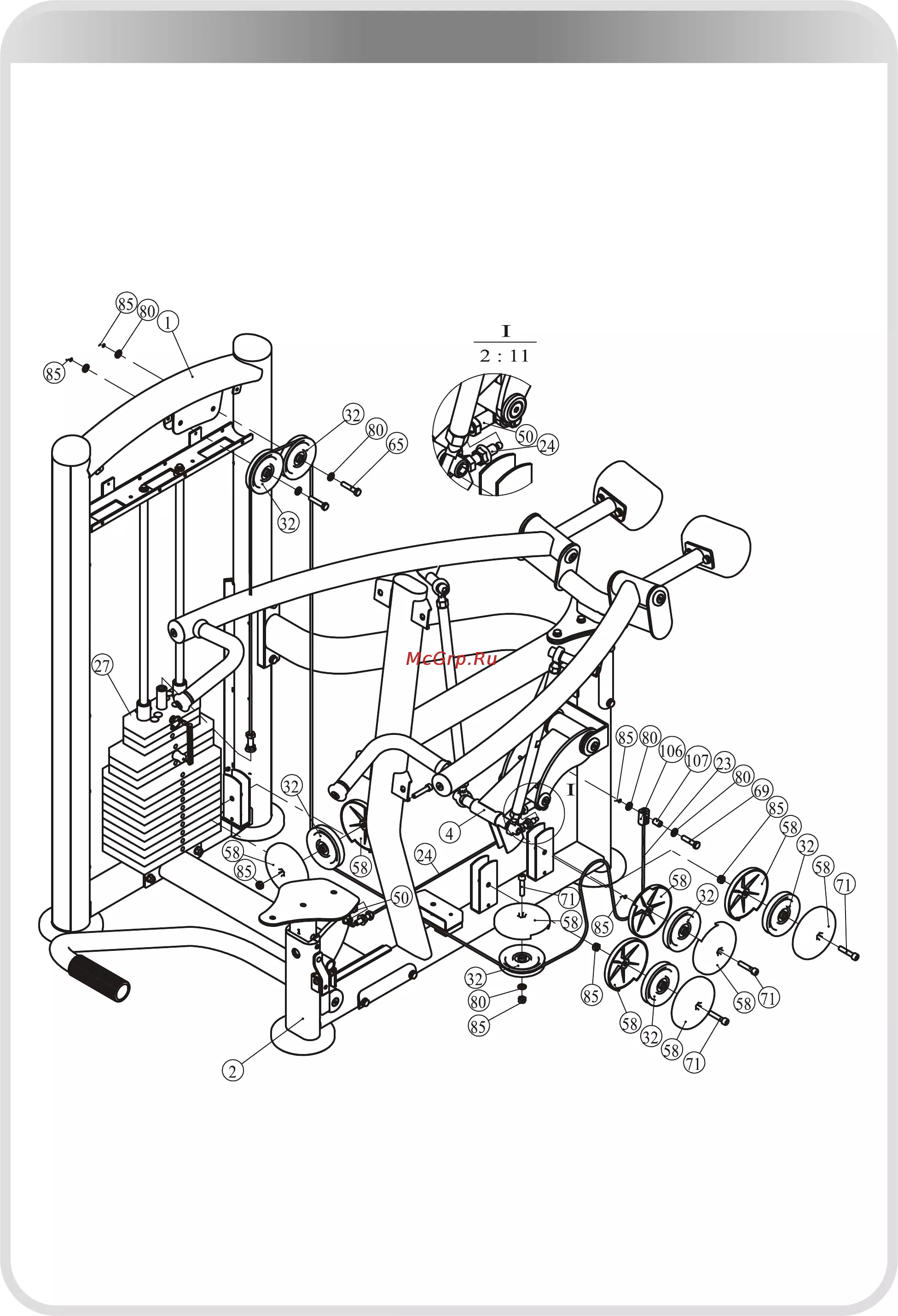

STEP 5

1. Attach the Shoulder Press Cable (#23) to the Top Plate (#27).

2. Attach two 4.5" Pulley (#32) to the Weight Stack Frame (#1) using:

two M10*50 HHB (#65)

four Φ11*Φ20*2 Flat Washer (#80)

two M10 Nylon lock Nut (#85)

3. Attach one 4.5" Pulley (#32) to the Weight Stack Frame (#1) using:

two Pulley Cover (#58)

one M10*50 SHCS (#71)

one M10 Nylon lock Nut (#85)

4. Attach three 4.5" Pulley (#32) to the Main Frame (#2) using:

five Pulley Cover (#58)

three M10*50 SHCS (#71)

one Φ11*Φ20*2 Flat Washer (#80)

three M10 Nylon lock Nut (#85)

5. Attach one 4.5" Pulley (#32) to the Sway Pulley Bracket (#4) using:

one M10*50 SHCS (#71)

two Pulley Cover (#58)

one M10 Nylon lock Nut (#85)

6. Attach the Shoulder Press Cable (#23) to the Sway Pulley Bracket (#4) using:

one M10*45 HHB (#69)

two Φ11*Φ20*2 Flat Washer (#80)

one M10 Nylon lock Nut (#85)

one Cable End (#106)

one Φ10*Φ14*20 Spacer (#107)

7. Attach the Spare Cable (#24) to two Tie Rod End 1/2"-13 (#50).

Note: Wrench Tighten Βolts and Nylon Lock nuts.
