─ 15 ─

AssemblyAssembly

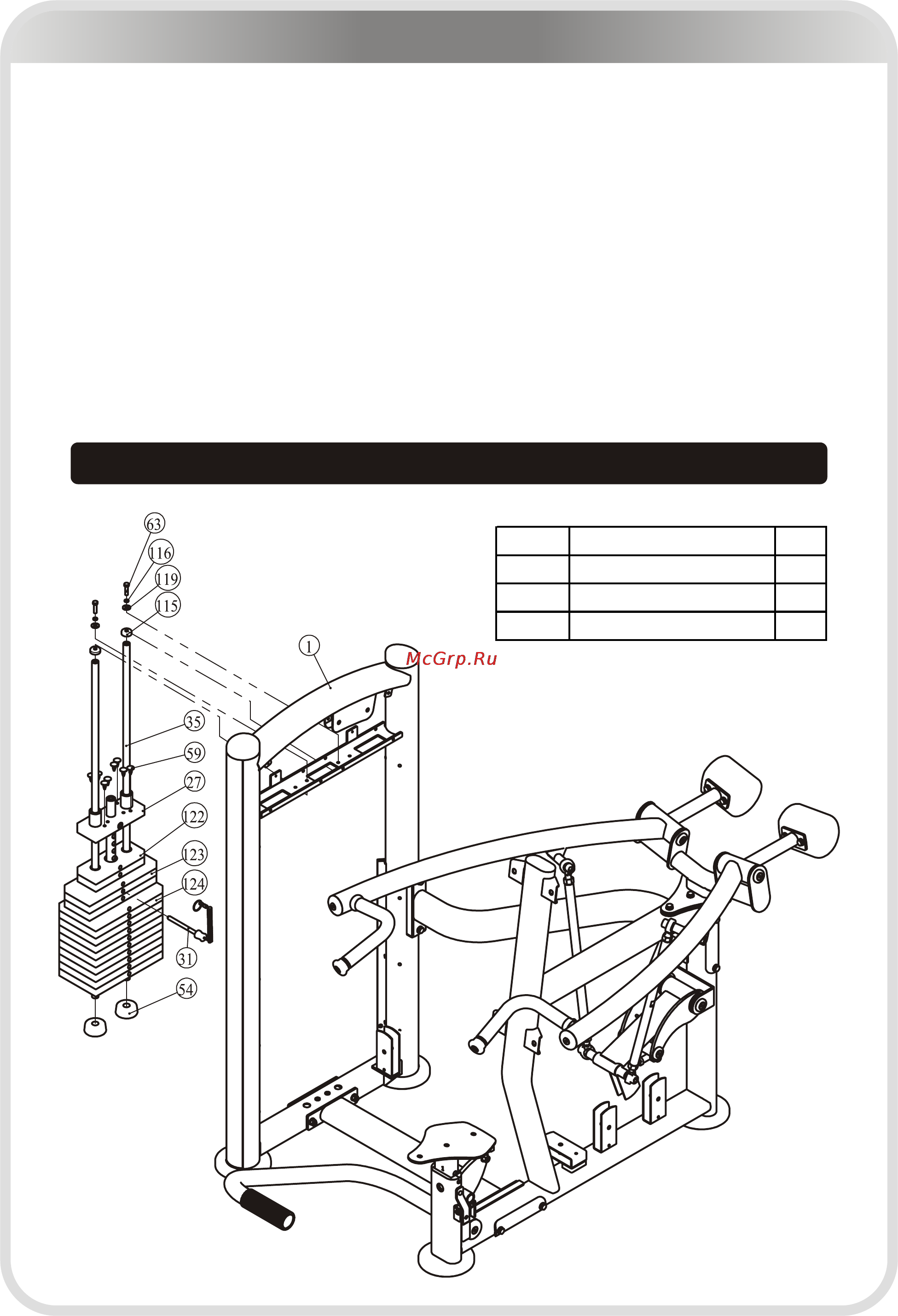

STEP 4

1. Attach:

two Φ19*1177 Guide Rods (#35) two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#54)

ten Weight Plate 20LBS (#124) three Weight Plate 15LBS (#123)

two Weight Plate 10LBS (#122) one Top Plate (#27)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#63) two Φ8 Spring Washers (#116)

two Φ9*Φ22*1.6 Flat Washers (#119) two Φ29*Φ19*10 Rubber Plugs (#115)

2. Attach the Selector Pin W/Coil (#31) to the Top Plate (#27).

3. Attach eight Φ8*Φ20*23 Buttons (#59) to the Top Plate (#27).

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for 275LBS Weights !

Item No. Description Qty

122 Weight Plate 10LBS 2

123 Weight Plate 15LBS 3

124 Weight Plate 20LBS 10

275LBS Weights
