Sawing Profile Strips/Mouldings (Floor and Ceiling Strips)
Profile strips/mouldings can be sawn in two dif-
ferent ways:
– Placed against the fence
– Lying flat on the saw table.
Always make trial cuts with the mitre angle set-
ting first on scrap wood.
Floor Strips/Mouldings

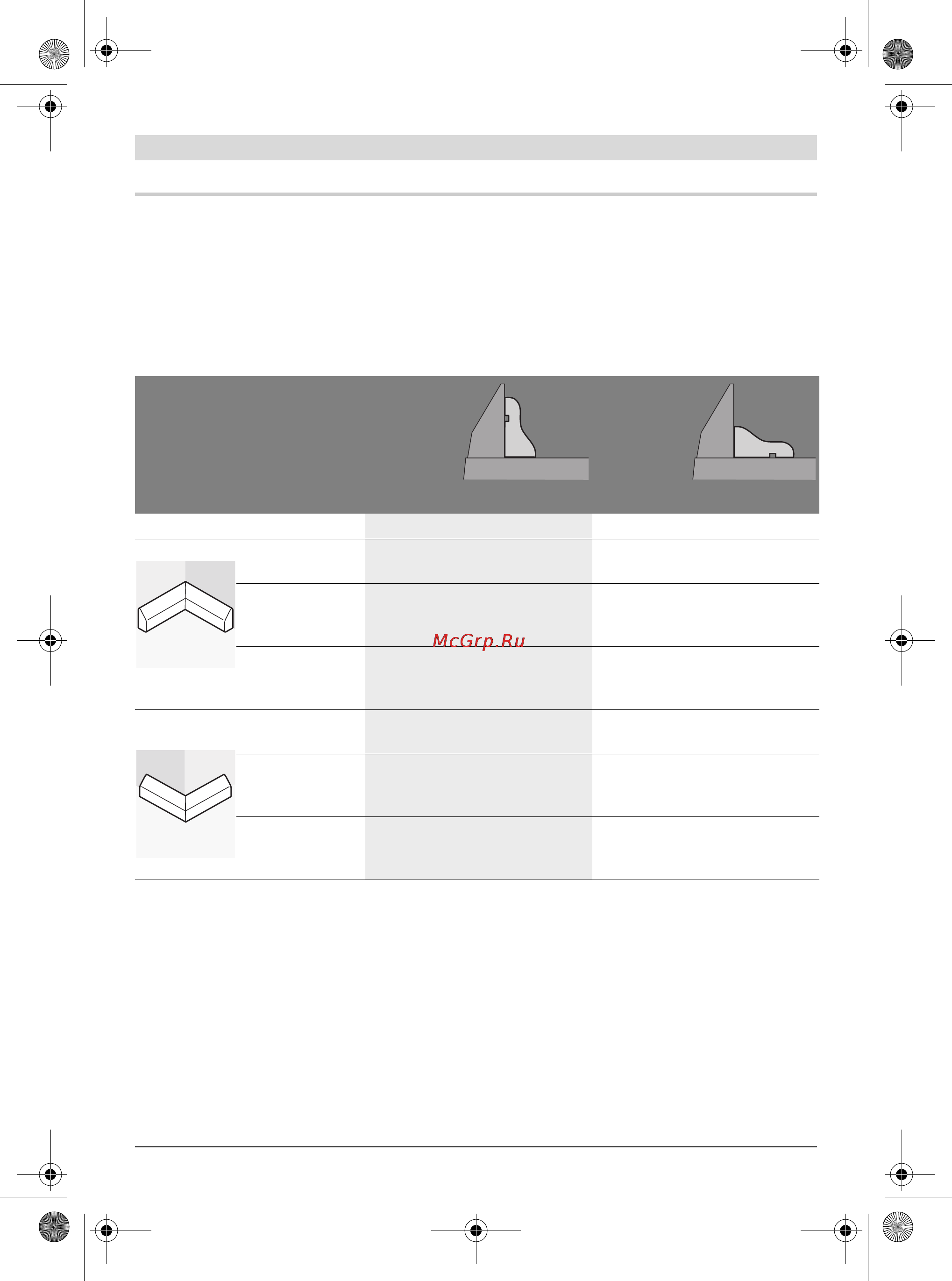

The following table contains instructions for sawing floor strips/mouldings.
Settings Placed
against
the fence
Lying flat
on the
saw table
Vertical bevel angle 0° 45°
Floor strip/moulding
Left side Right side Left side Right side
Inner corner Horizontal mitre
angle
45° left 45° right 0° 0°
Positioning of
workpiece
Bottom edge
on saw table
Bottom edge
on saw table
Upper edge
against the
fence
Bottom edge
against the
fence
The finished
workpiece is lo-
cated...
... to the left of
the cut
... to the right
of the cut
... to the left of
the cut
... to the left of
the cut
Outer
corner
Horizontal mitre
angle
45° right 45° left 0° 0°
Positioning of
workpiece
Bottom edge
on saw table
Bottom edge
on saw table
Bottom edge
against the
fence
Upper edge
against the
fence
The finished
workpiece is lo-
cated...
... to the right
of the cut
... to the left of
the cut
... to the right
of the cut
... to the right
of the cut
