Kramer K-Config 2 [106/137] Click the add to list button

K-Config – Adding Actions to a Trigger

101

4. Click the Add to List button.

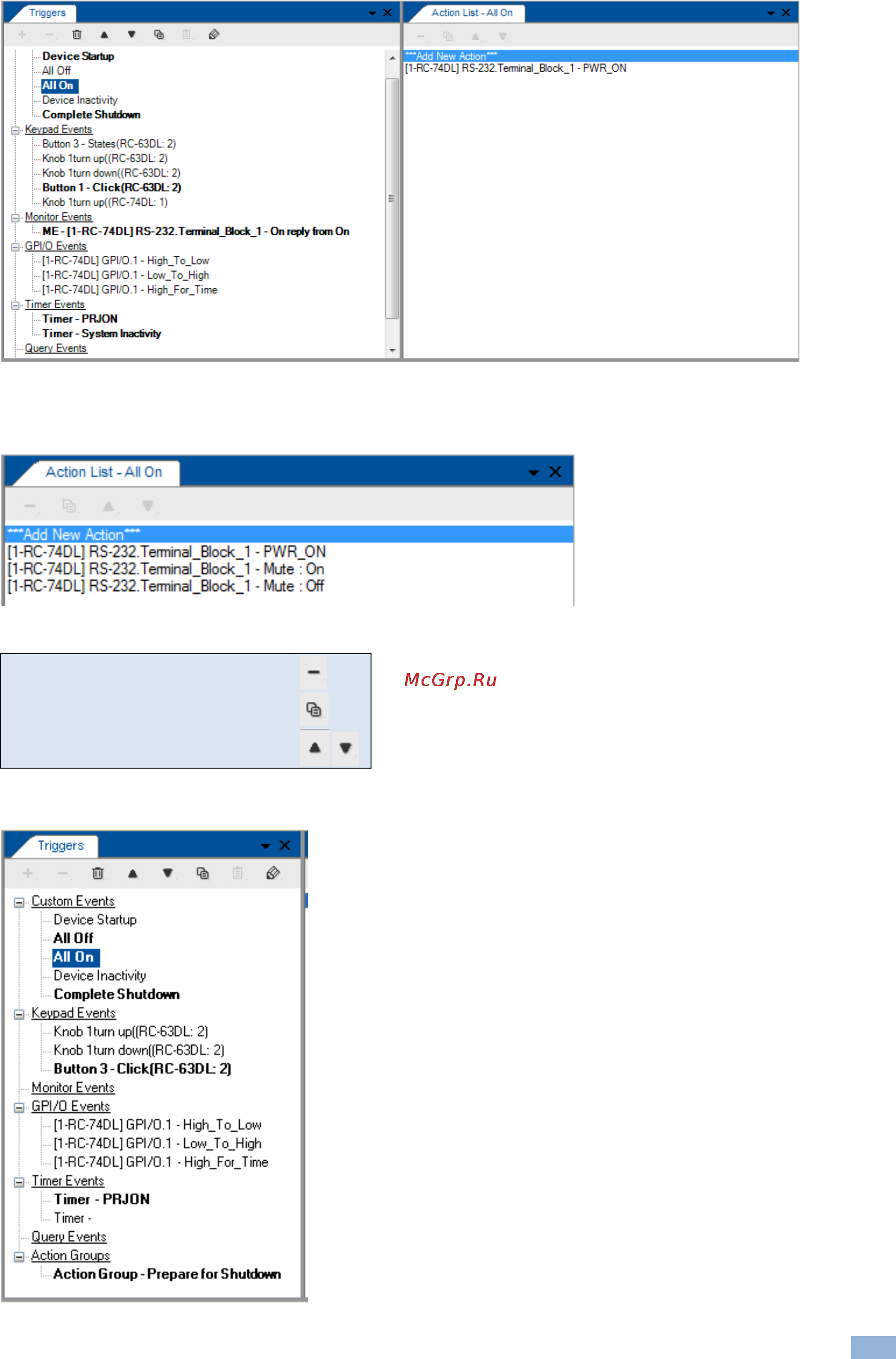

The command is added to the Action List area (the trigger name appears at the top of the list):

Figure 180: The New Command in the Action List

5. In the same way you can use the Action Editor to add further commands to the action list:

Figure 181: The Action List for the All On Trigger

You can:

Delete an action

Duplicate an action

Move actions up or down

Once a Trigger’s action list is assigned with commands, it turns bold:

Figure 182: The All On Trigger (after adding commands to the action list)
