K-Config – The Driver Manager – Getting Started

5.3.2 Tables

Tables shows the list of default shared tables (see Section 5.5.4 for a more detailed explanation). You can add a new

non-default shared table name, delete it or rename it:

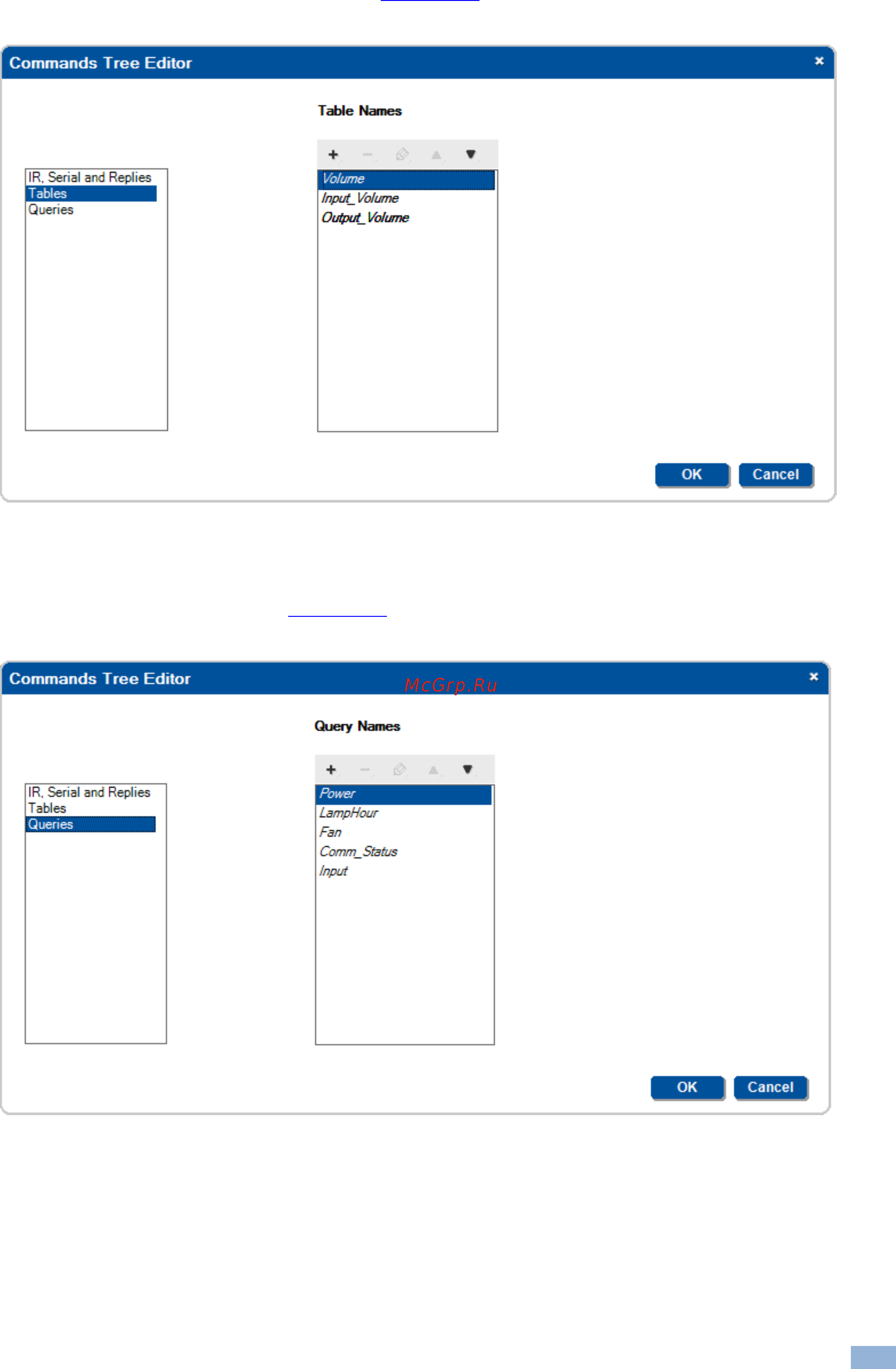

Figure 48: The Commands Tree Editor Window (Tables)

5.3.3 Queries

Queries shows the list of queries (see Section 5.5.5 for a more detailed explanation). You can add a new Query Name

(non-default shared), delete it or rename it:

Figure 49: The Commands Tree Editor Window (Queries)
