5.3.4 Adding Non-default Shared Commands
Non-default shared commands can only be added via the Commands Tree Editor window. In the following example, a
DVI command needs to be added to the Projector Input command group. To add this non-default shared command, do
the following:
1. Click the Commands Hierarchy button and select the Input command group:

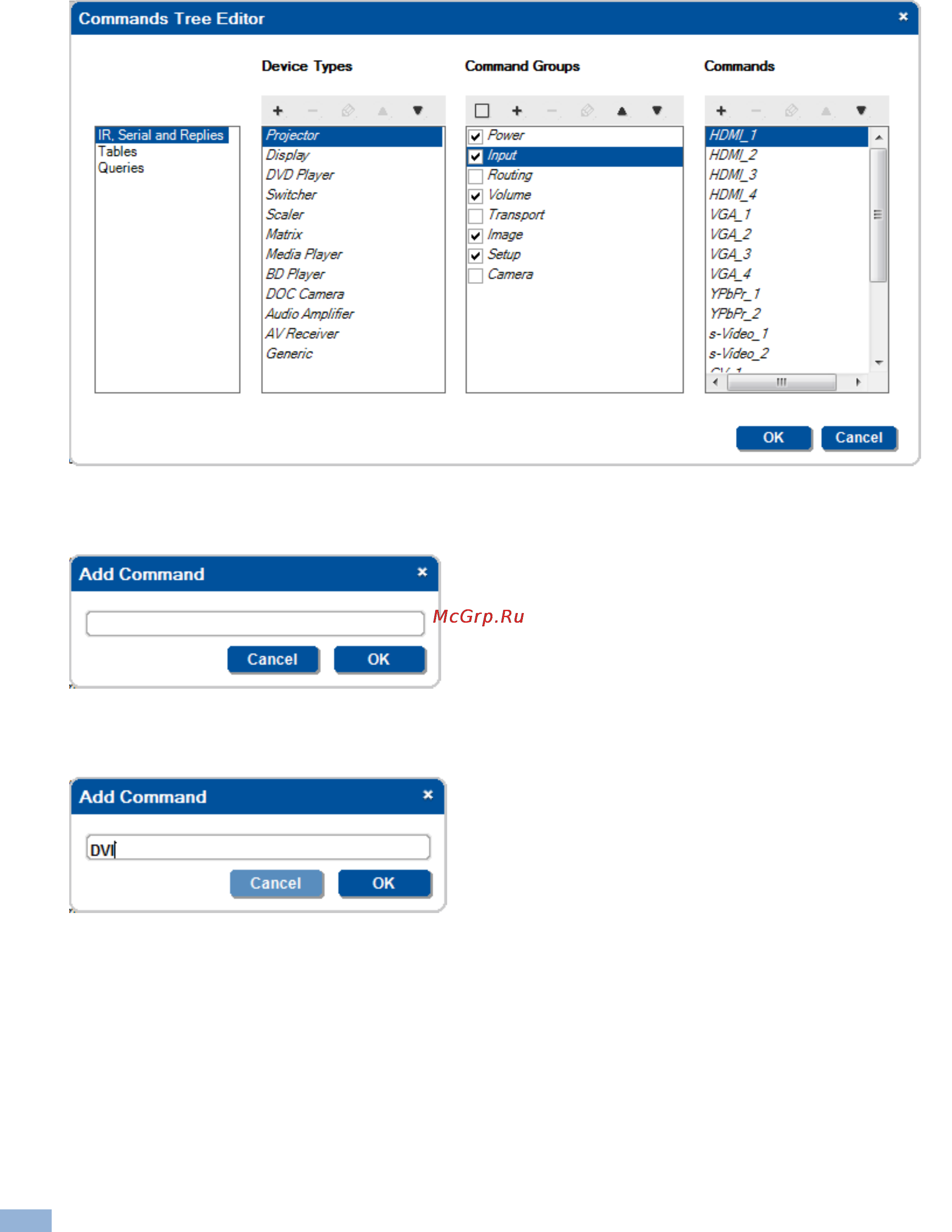

Figure 50: The Commands Tree Editor Window – Adding a Non-default Shared Command
2. In the Commands list click the + icon. The following window appears:
Figure 51: The Commands Tree Editor Window – Add Command Window
3. Type the new command name and click OK:
Figure 52: The Commands Tree Editor Window – Adding the Command Name
The new command was added to the Input Commands group and the DVI input non-shared command can be
moved to the Input Commands list:
