K-Config - Kramer K-Config Software Installation
3 Kramer K-Config Software Installation
You are here:
Configuration Steps
Description
Section
Introduction
General information and system requirements
1
Planning
Carefully plan your controlled room
2
Installation
Install the Software
3
Introduction to K-Config
Get to know the K-Config main window, menus and quick access icons
4
Driver Manager
Define the Peripheral Device Drivers
5
Project Navigator
Define the Controlled Room
6
Port Manager
Assign the peripheral devices to the Master and Auxiliary device ports
7
Triggers
Activate the Triggers
8
Adding Actions
Describes how to add the various actions to a trigger
9
Connecting to a Device
Describes how to connect to a device, upgrade the firmware, read/write to the device
and so on
10
To install the K-Config software, do the following:
Check that “.NET Framework” Revision 4.0 software is installed or install it if it is missing (see Section 3.1)
Install the USB driver (see Section 3.2)
Install the Kramer K-Config software (see Section 3.3)
3.1 Installing the “.NET Framework” Revision 2.0 Software
Prior to using the Kramer K-Config software, make sure that the “.NET Framework” Revision 4.0 software is installed
on your PC. If it is not, you need to install it:
If you have a fast Internet connection, this software is automatically installed during the installation of the Kramer
K-Config software
3.2 Installing the USB Driver
If you wish to configure the RC device by connecting it via a USB cable, you need to download and install the USB
driver. Download the Kramer USB driver from the installation disc or from our Web site at
http://www.kramerelectronics.com/support/downloads.asp, save it on your PC and extract the zip file to a directory
where you can find it later.
Connect the mini USB cable from your PC to the device and wait until Windows 7 completes the connection and will
report in a bubble that "Device driver software was not successfully installed" (If the device driver is installed
successfully, skip the rest of section).

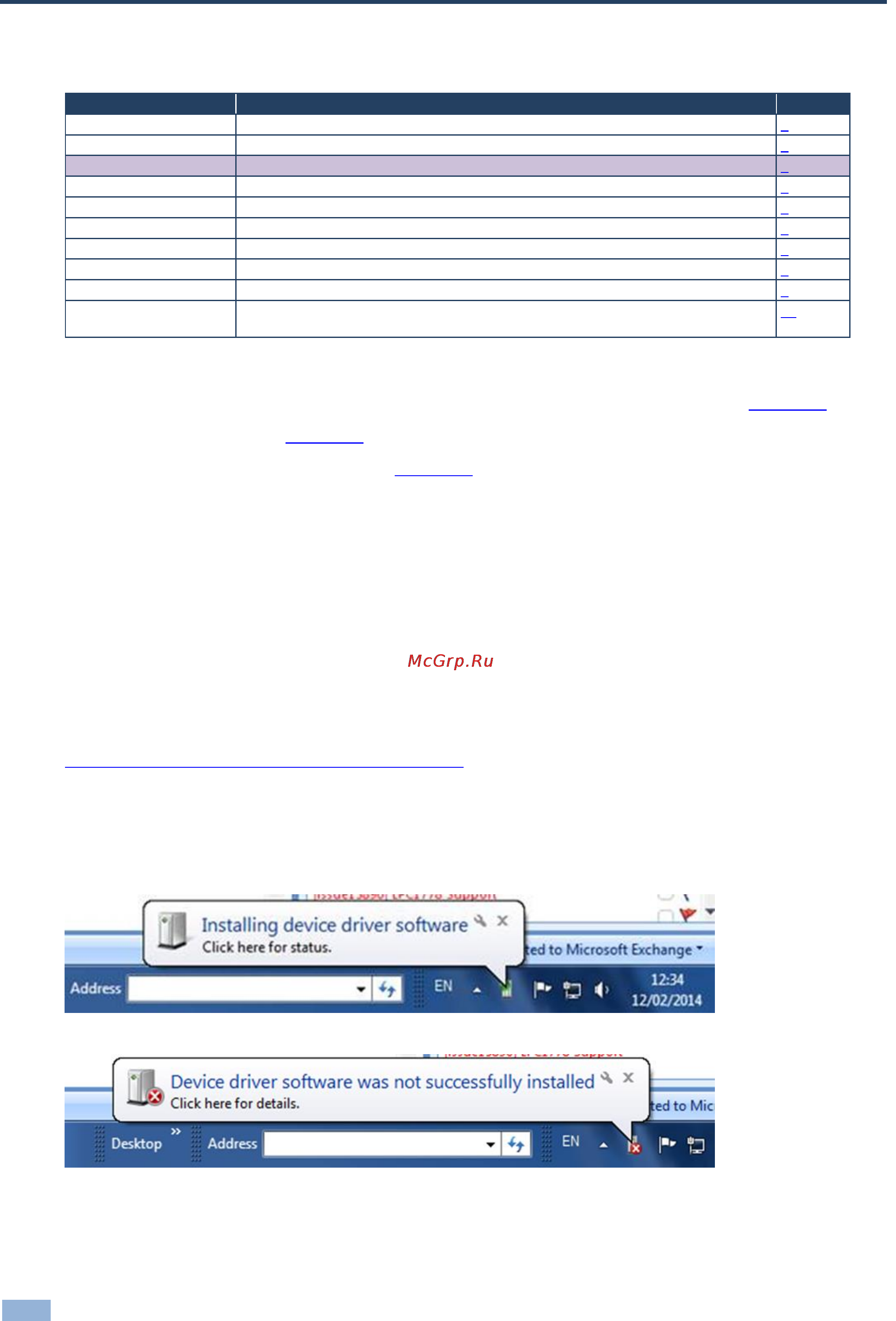

Figure 2: USB Driver Installation –USB Installation Attempt
