K-Config – Kramer K-Config Software Installation

To install the USB driver:

1. Open Control Panel -> Device Manager …

2. Right click the Kramer USB –COM DEVICE driver:

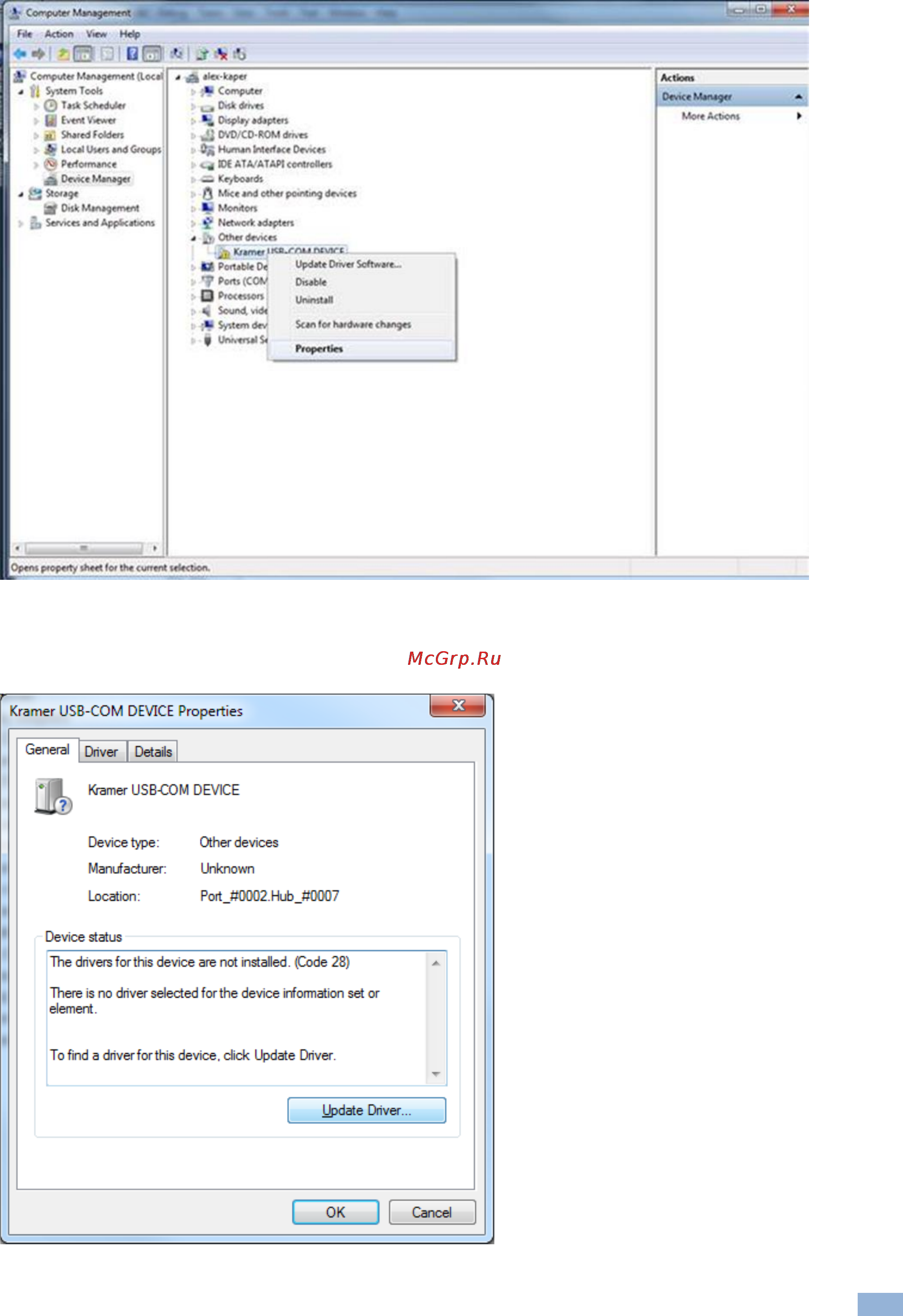

Figure 3: USB Driver Installation – Select USB Driver Properties

3. Select Properties.

The Properties window appears:

Figure 4: USB Driver Installation –USB Driver Properties Window
