K-Config - Kramer K-Config Software Installation

4. Click the Update Driver… window.

The following window appears:

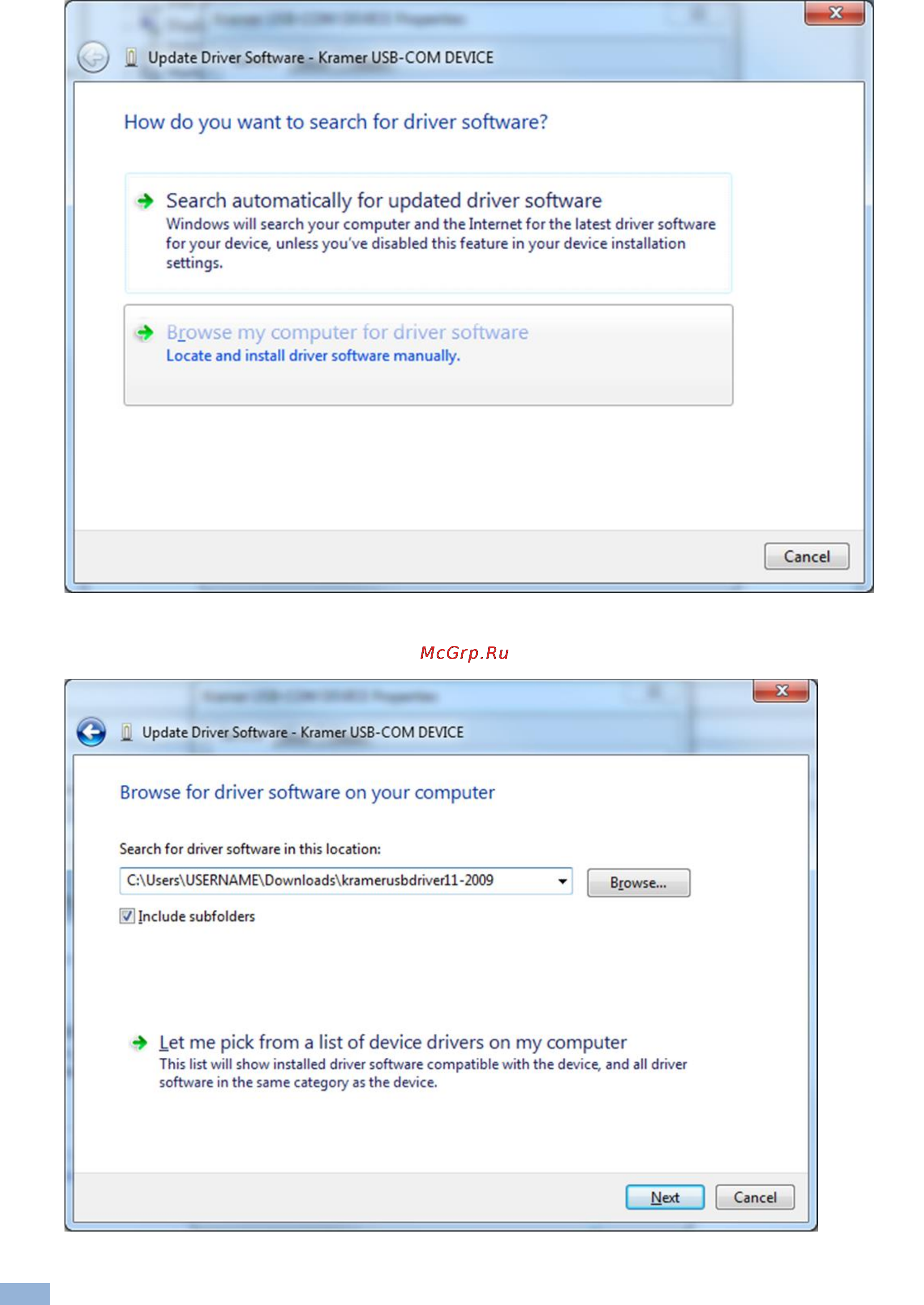

Figure 5: USB Driver Installation – USB Driver Update

5. Select Browse my computer for driver software and then set the location of the driver on your PC:

Figure 6: USB Driver Installation – USB Driver Location
