K-Config – The Driver Manager – Getting Started
33

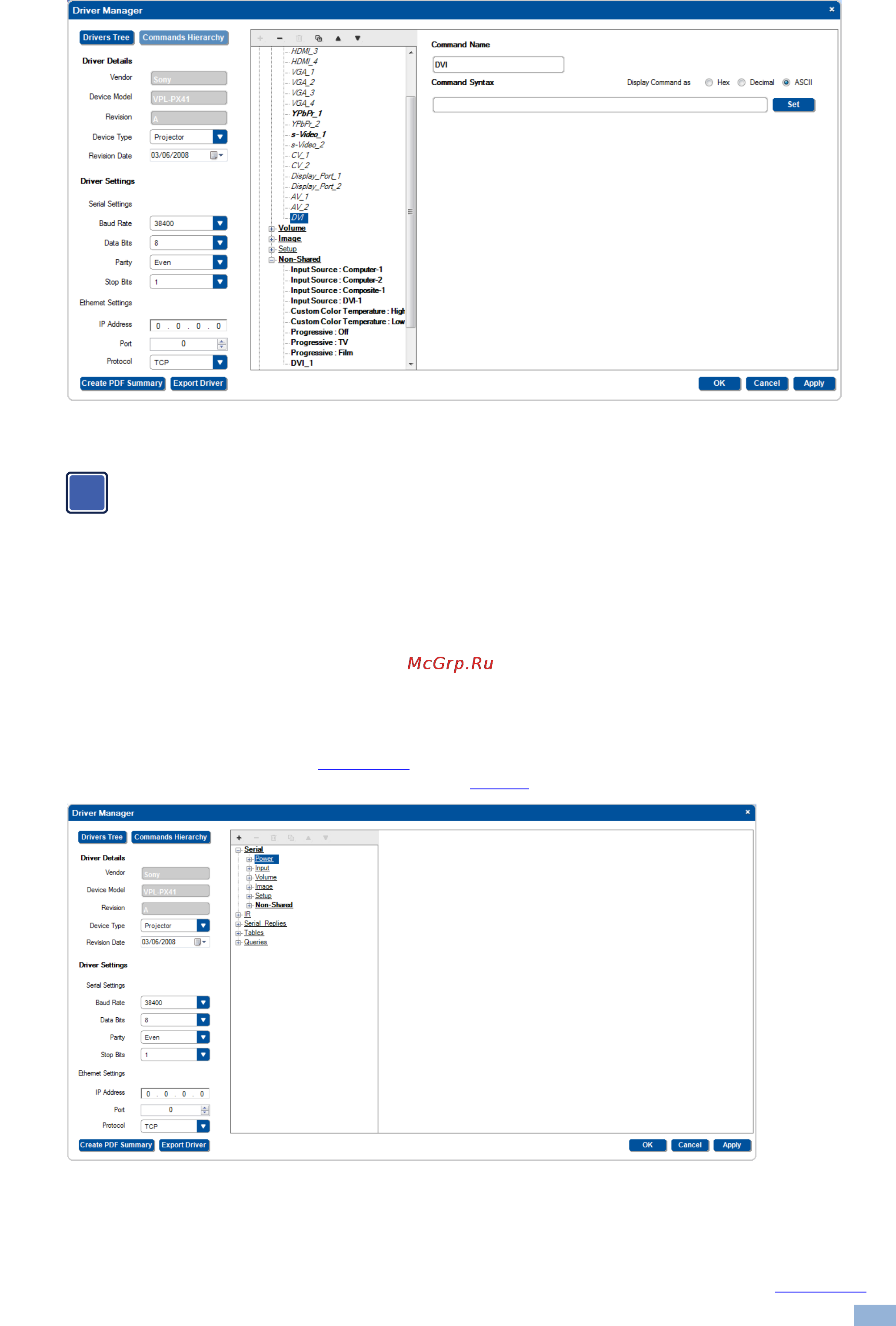

Figure 53: The Driver Manager Window – Non-Default Shared Command Added to the Input List
Note that the non-default shared commands that were added will be part of the shared list for all the
drivers.
Repeat this procedure for Tables and Queries in the same way. Once you have completed this, you can configure the
controlled room.
5.4 Setting the Shared Commands
The following section applies to Serial, IR, serial replies, tables and queries in the driver Manager window and
describes how to move the content of a specific Driver’s non-shared command to the shared commands list.
To do this:
1. Select the Device Type (see Section 5.3.1).
In this example a projector device type was selected (see Figure 54)
Figure 54: The Driver Manager – Selecting the Device Type
Selecting Projector narrows down the displayed list of serial command groups and includes only the ones that
are relevant to a projector.
The shared commands list default/non-default command names that are currently "empty" (see Section 5.3.1).
