K-Config - The Driver Manager – Getting Started

2. Select the standard name for "Power: On" in the Power Command Group:

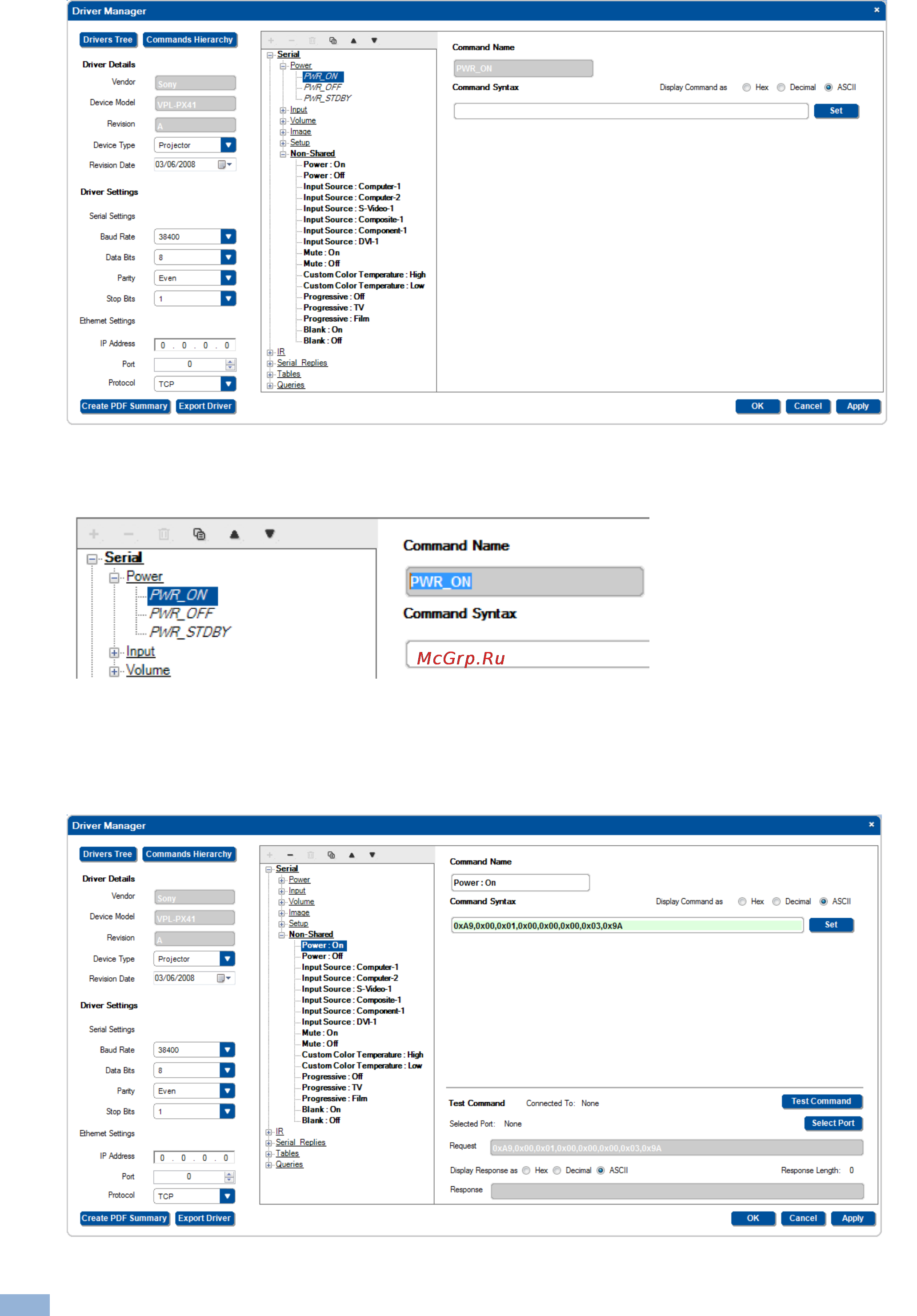

Figure 55: The Driver Manager – Selecting PWR_ON from the Power Command Group

3. Copy the standard name from the Command Name text box:

Figure 56: The Driver Manager – Copying PWR_ON from the Command Name box

4. Open the Non-Shared command group.

The Non-Shared command group includes the imported device commands. Select the relevant command,

"Power: On".

Figure 57: The Driver Manager – the Non Shared Command Group
