K-Config – Adding Actions to a Trigger
105

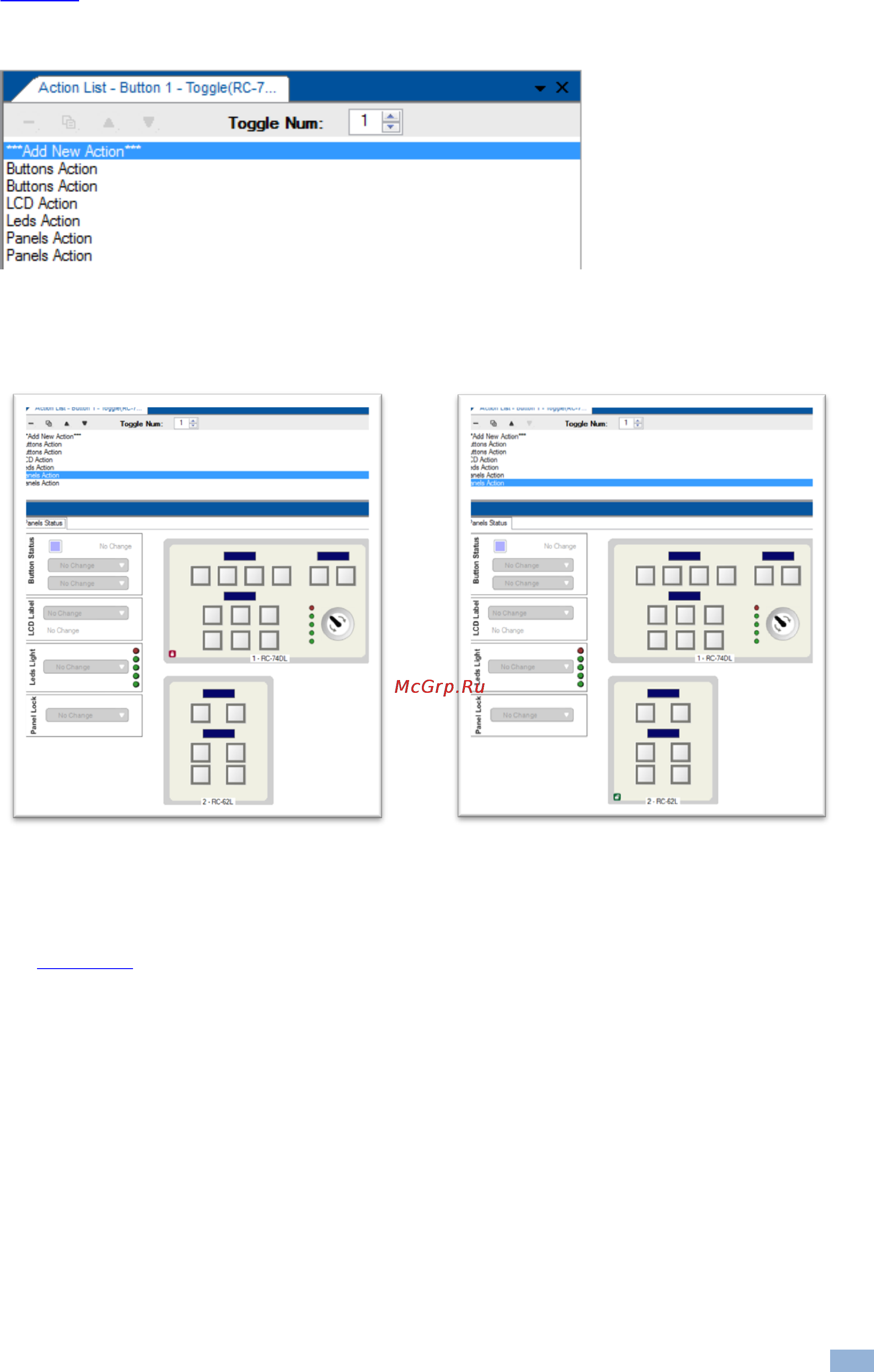

Figure 188 shows Panels Status commands that were added to the action list. The list shows a general name for each
action. For example, even though “Buttons Action” appears twice, it includes different actions related to the panel
buttons.
Figure 189: Panels Status Action List
When an action is selected, the details of that action will appear in the Action Editor. For example, selecting the first
Panels Action shows that RC-74DL is locked, while the second “Panels Action” shows the RC-62L unlocked:
Figure 190: Panels Status Action List Names
9.4.1 The Button Status
The Button Status lets you set a button light color and define its behavior, as well as enable/disable it or set its state
(see Section 8.2.1).
To define the button status:
1. Click a front panel button in the Action Editor (for example button 1 on the RC-74DL).
The button frame turns blue:
