Kramer K-Config 2 [98/137] Query results shows the query table as defined in the driver manager in this example off on and standby were

K-Config – Using the Triggers

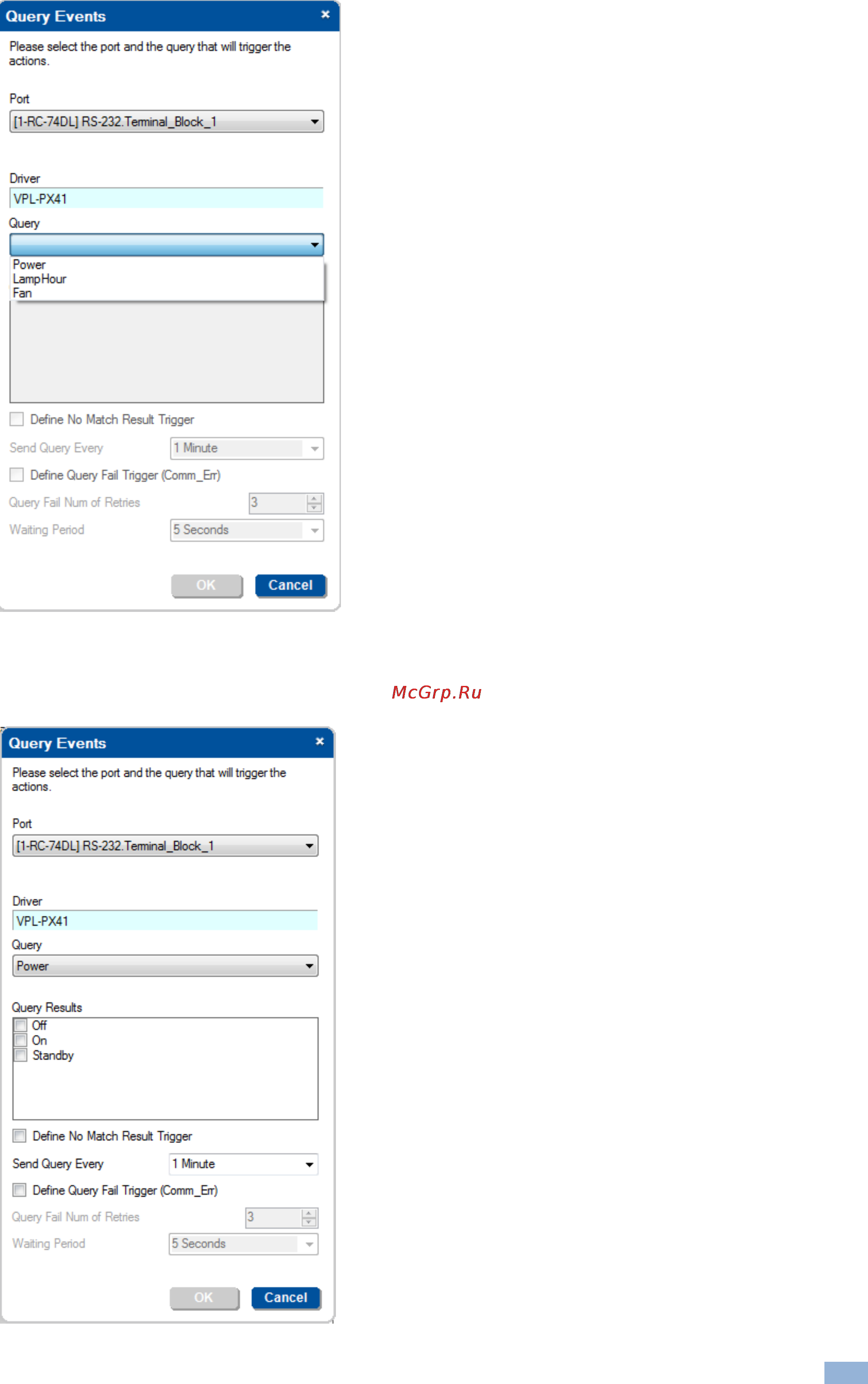

Figure 167: Query Events – Select the Query

Query results shows the query table as defined in the Driver Manager. In this example Off, On and Standby were

defined.

Figure 168: Query Events – The Query Results
