K-Config – Kramer K-Config Software Installation

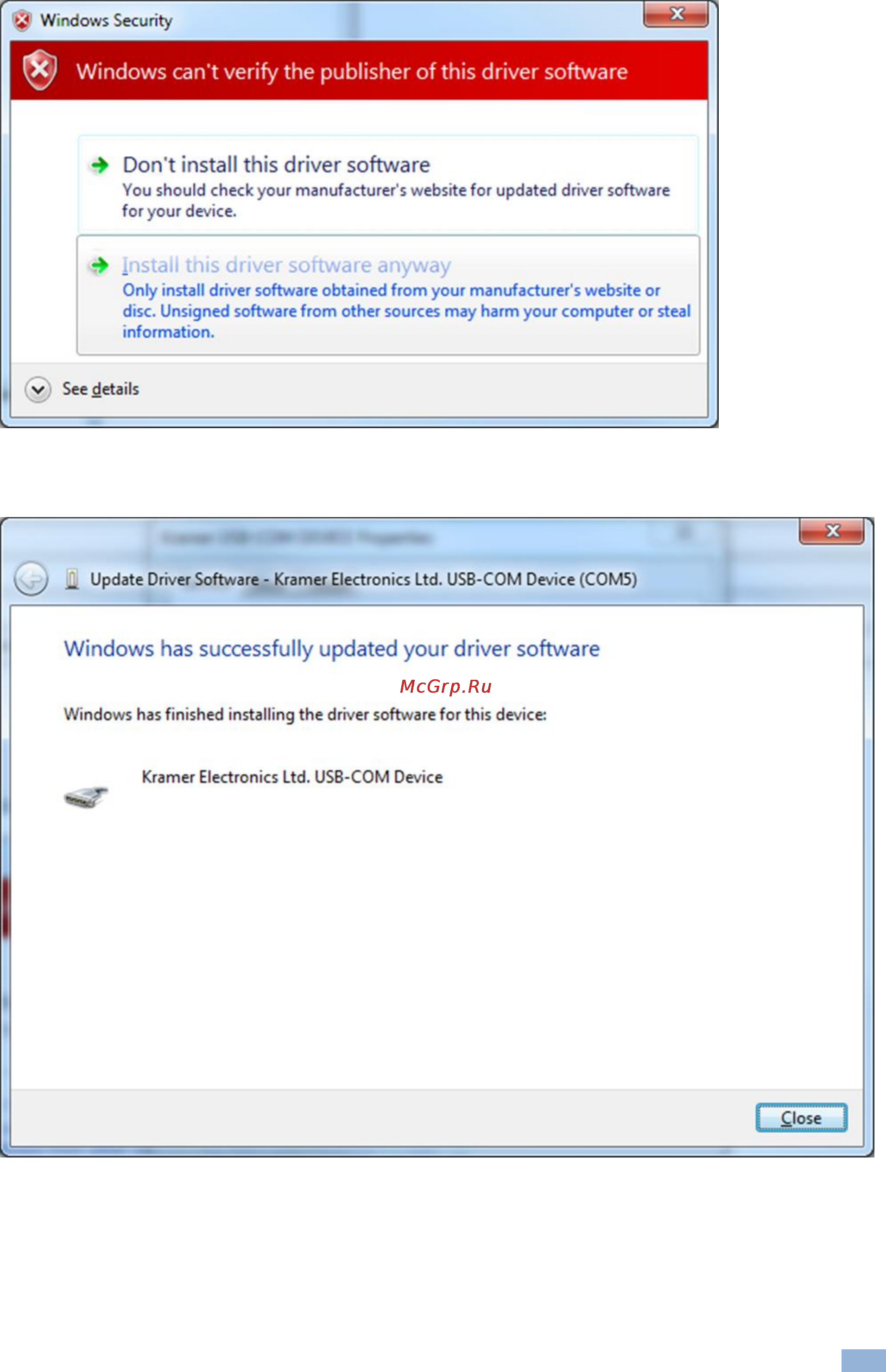

6. Click the Next button. The Windows Security window appears:

Figure 7: USB Driver Installation – Windows Security

7. When the installation is completed, the following window appears:

Figure 8: USB Driver Installation – USB Driver Updated

The PC recognizes the USB port to which the device is connected.
