K-Config – Connecting to the Device

119

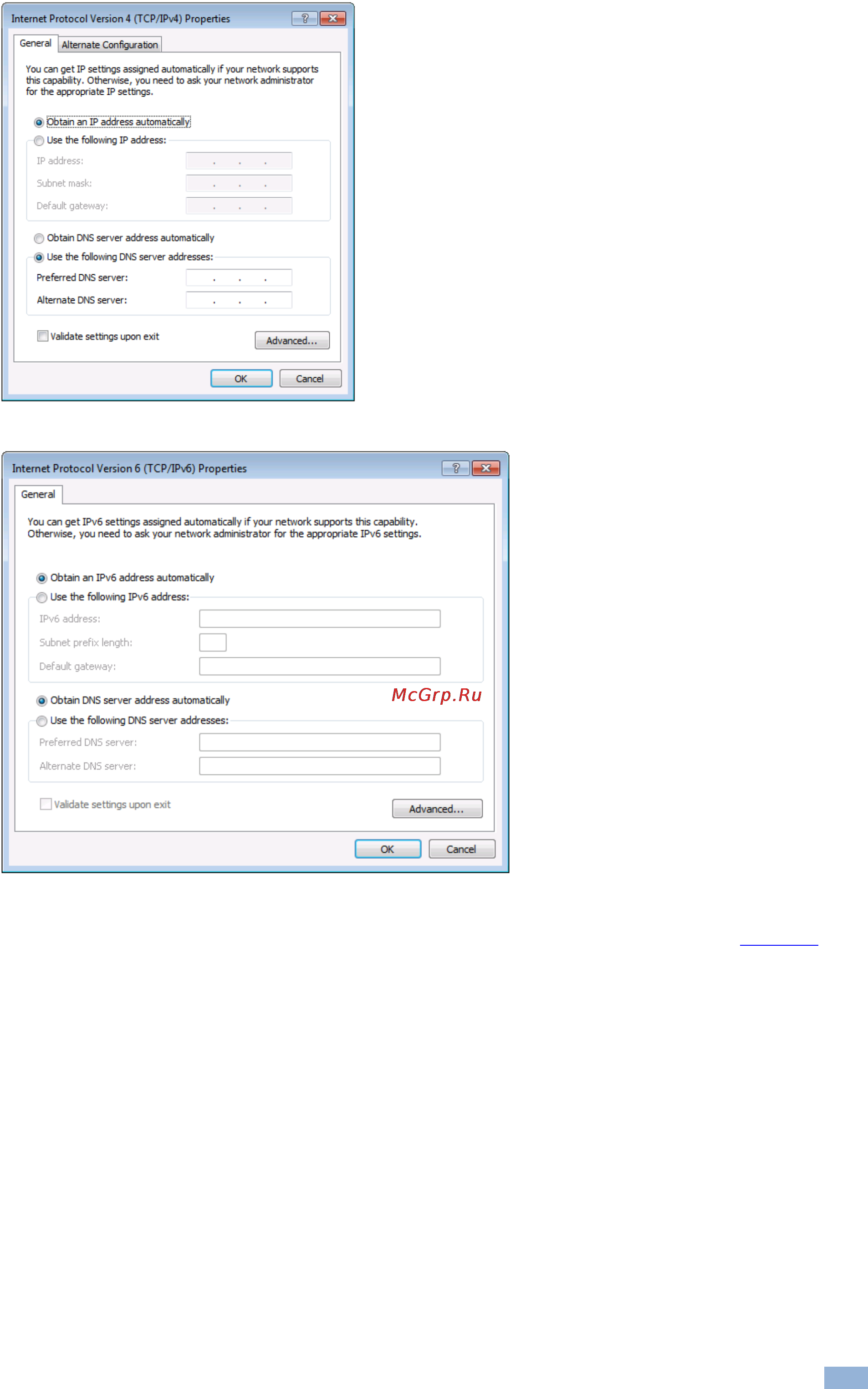

Figure 211: Internet Protocol Version 4 Properties Window

Figure 212: Internet Protocol Version 6 Properties Window

6. Select Use the following IP Address for static IP addressing and fill in the details as shown in Figure 213.

For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.39)

that is provided by your IT department.
