K-Config - Getting to Know K-Config

To export a device:

1. Select Export Device in the File menu, and select the device (or devices) you want to export.

The following window appears:

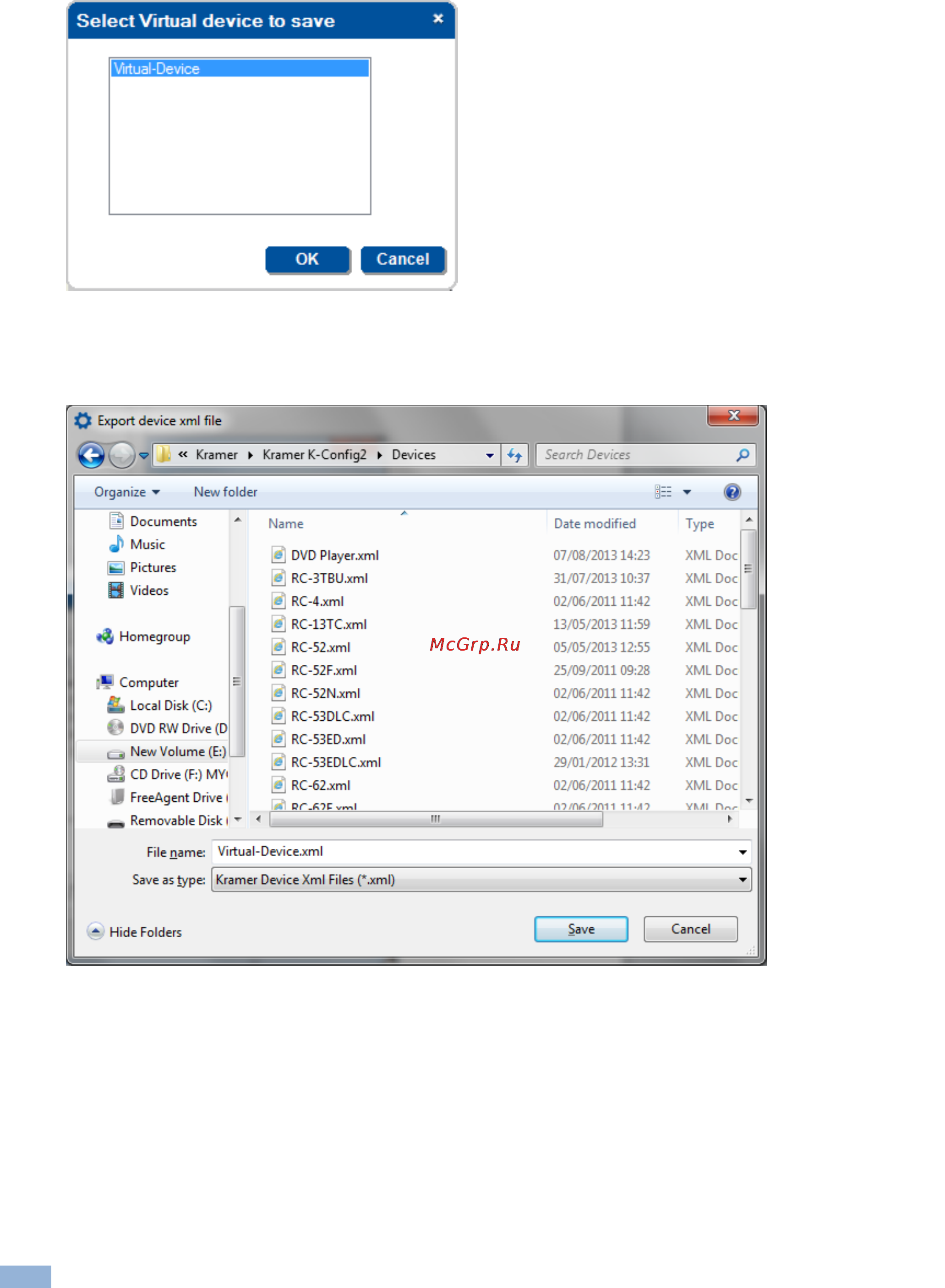

Figure 33: Select Virtual Device to Save

2. Click OK.

The following window appears:

Figure 34: Export Device xml File
