K-Config – Assigning the Peripheral Devices to Master and Auxiliary Device Ports

The following window appears:

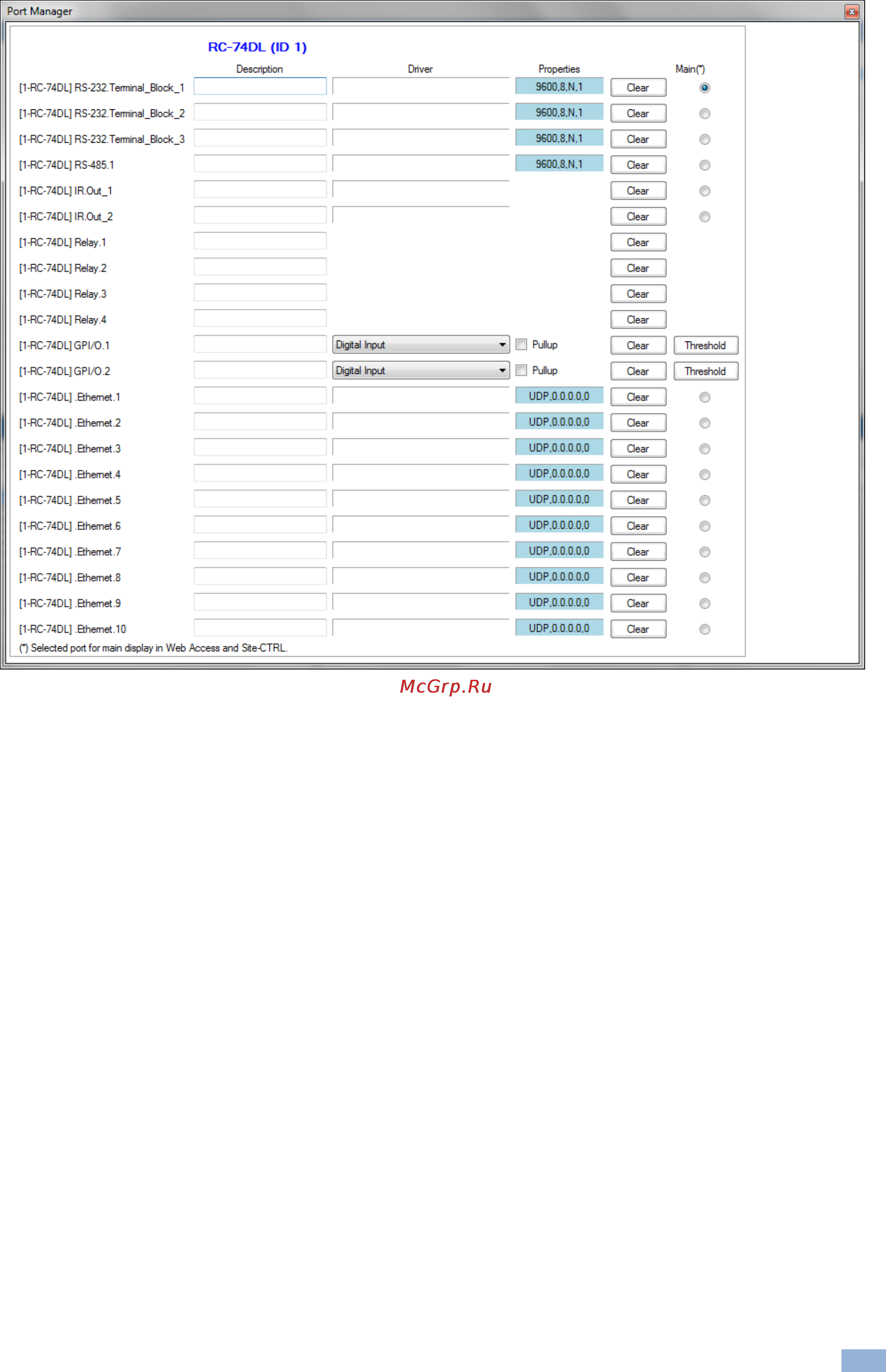

Figure 103: The RC-74DL Port Manager

The list on the left shows the various RC-74DL ports:

 RS-232 and RS-485

 IR out

 Relays

 GPI/O

 Ethernet ports
