K-Config – Assigning the Peripheral Devices to Master and Auxiliary Device Ports

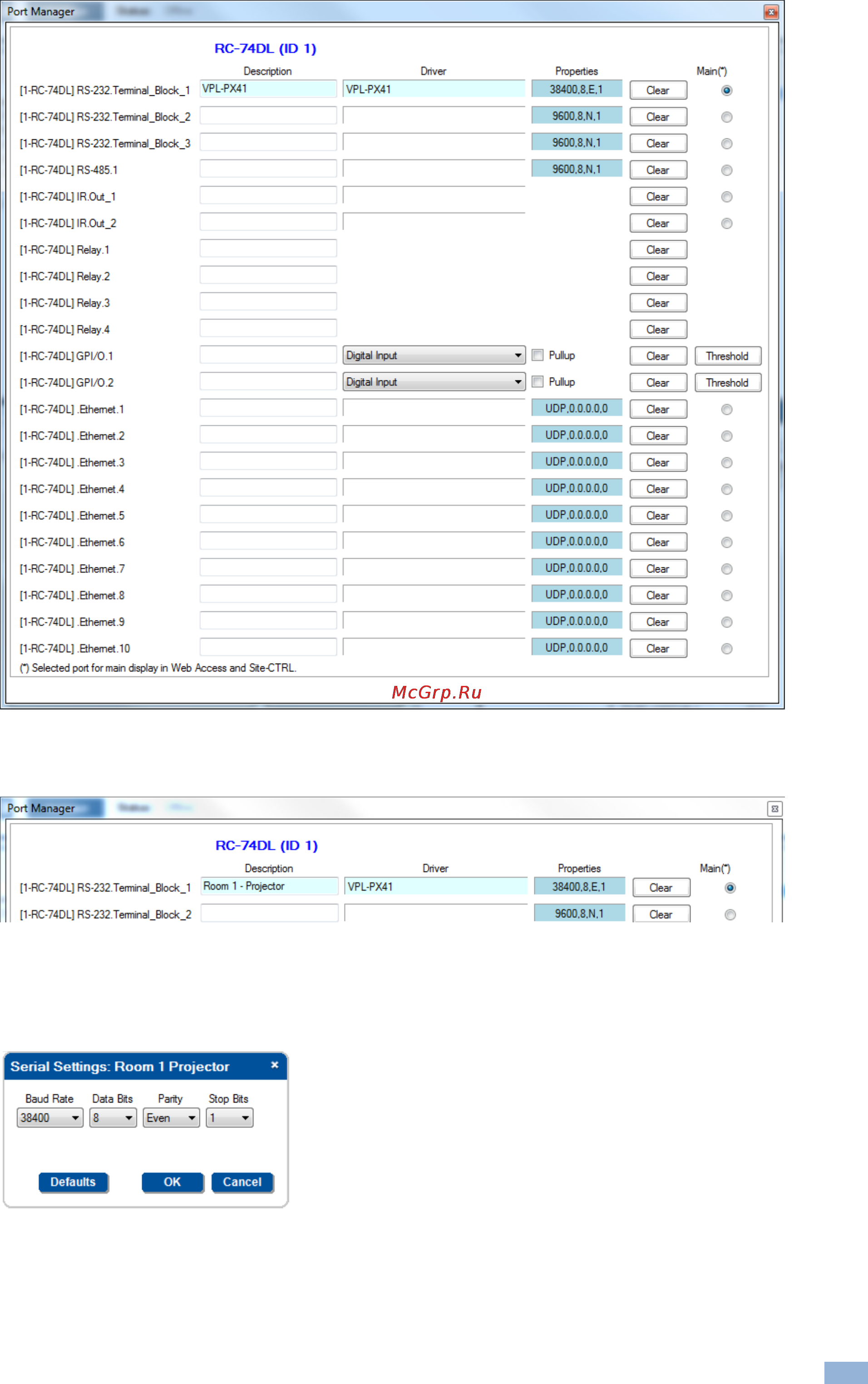

Figure 106: Assigning a Driver to a Port

4. If required, click the Description field to change the description:

Figure 107: Writing the Port Description

5. In the same way add a driver to each of the other ports.

6. Click the Properties field to define the Serial Settings for the serial ports:

Figure 108: Serial Settings Window
