K-Config - Using the Triggers

Step II: Define the button (or other) Trigger

4. Select a trigger from the Triggers list (for example, Button 1):

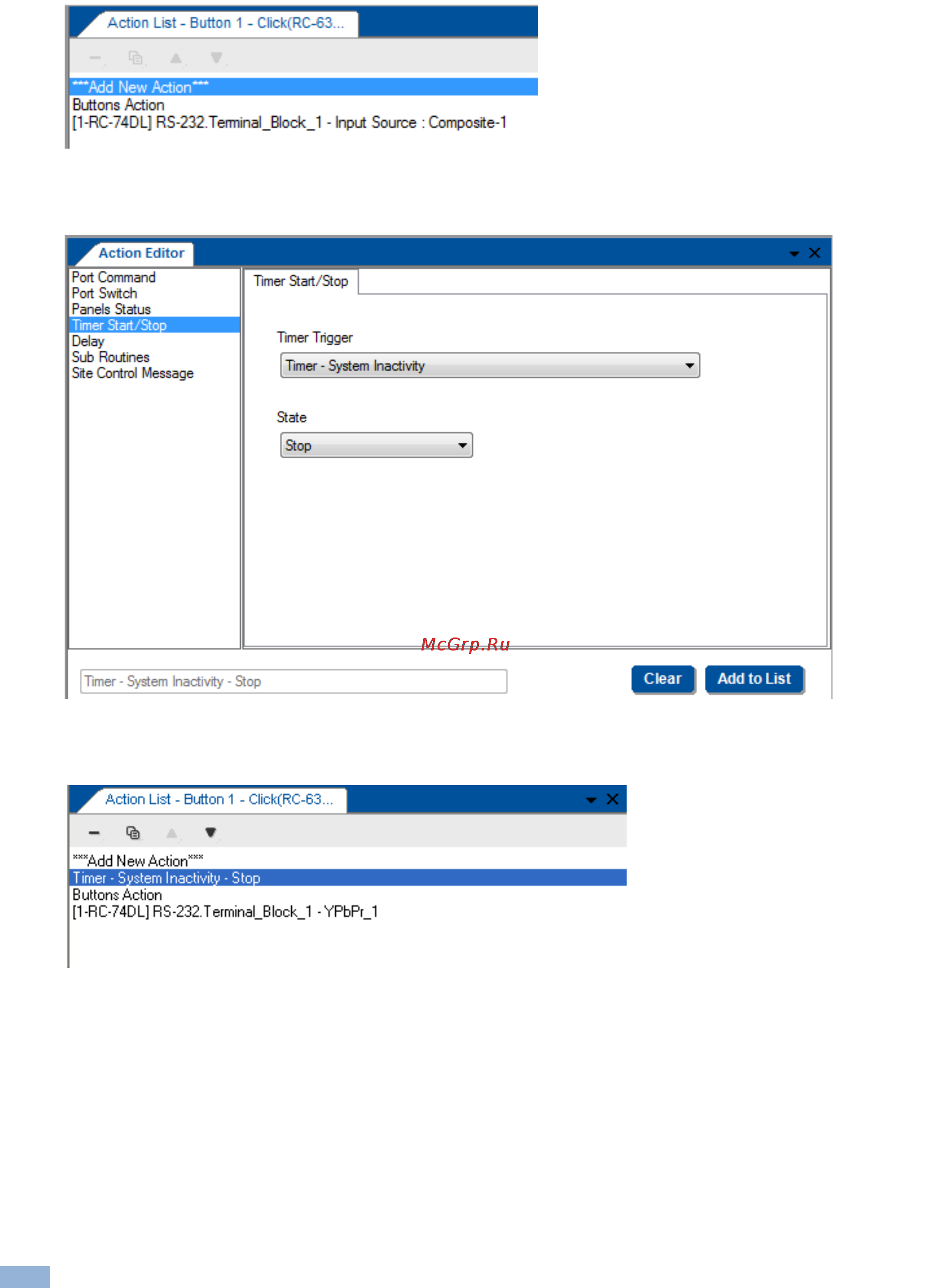

Figure 161: Timer Events – Button 1 Action List

5. Add the Timer Stop trigger:

Figure 162: Timer Events – Add the Stop Timer Action

6. Move the added Stop Timer trigger to the top of the list using the arrow icons:

Figure 163: Timer Events – Move the Stop Timer Action

7. Add the Start Timer trigger:
