TP-581T, TP-582T and TP‑582R - Defining the Devices
7
4 Defining the Devices
This section describes the:
TP-581T HDMI Line Transmitter, see Section 4.1
TP-582T HDMI Switcher/Line Transmitter, see Section 4.2
TP-582R HDMI Line Receiver DA, see Section 4.3
4.1 Your TP-581T HDMI Line Transmitter

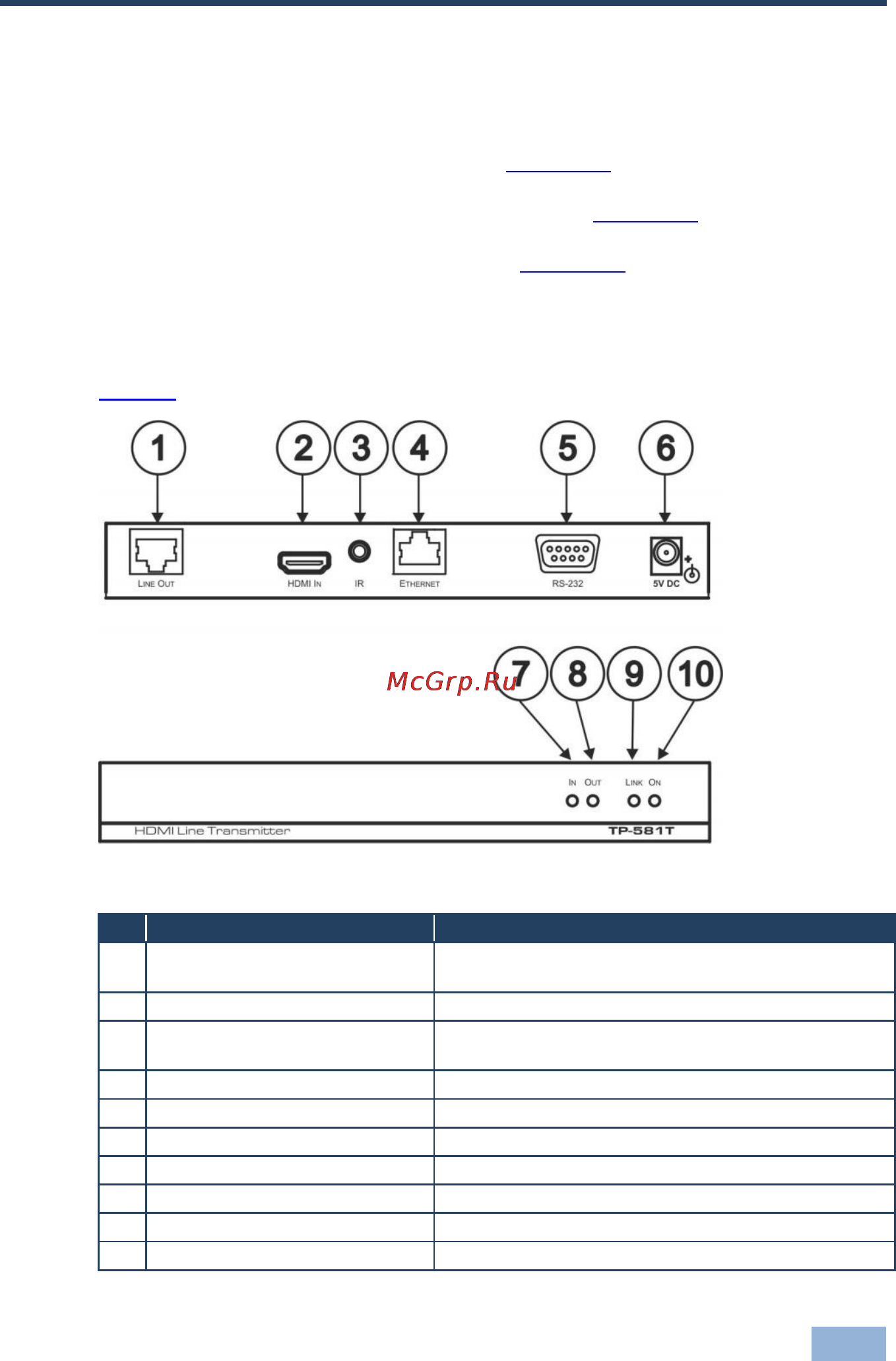

Figure 1 defines the TP-581T:
Figure 1: TP-581T HDMI Line Transmitter
#
Feature
Function
1
LINE OUT RJ-45 Connector
Connects to the CAT 5 IN RJ-45 connector on the
TP-582R
2
HDMI IN Connector
Connects to the HDMI source
3
IR 3.5mm Mini Jack Connector
Connects to an external infrared transmitter / sensor
(receiver)
4
ETHERNET Connector
Connects to a network
5
RS-232 9-pin D-sub Connector
Connects to an RS-232 port
6
5V DC
+5V DC connector for powering the unit
7
IN LED
Lights when an HDMI input device is connected
8
OUT LED
Lights when an HDMI output device is detected
9
LINK LED
Lights when the TP connection is active
10
ON LED
Lights when receiving power
