TP-581T, TP-582T and TP‑582R - Connecting the Devices
15
5.4 Controlling the TP-582T via the REMOTE Terminal
Block Connector
The contact closure remote control pins operate in a similar way to the INPUT
SELECT button. Using the contact closure remote control you can select the HDMI
input. To do so, momentarily connect the required input pin (IN 1 or IN2) on the
REMOTE CONTROL terminal block connector to the GND (ground) pin, as Figure
7 illustrates.
Do not connect more than one PIN to the GND PIN at the same time.

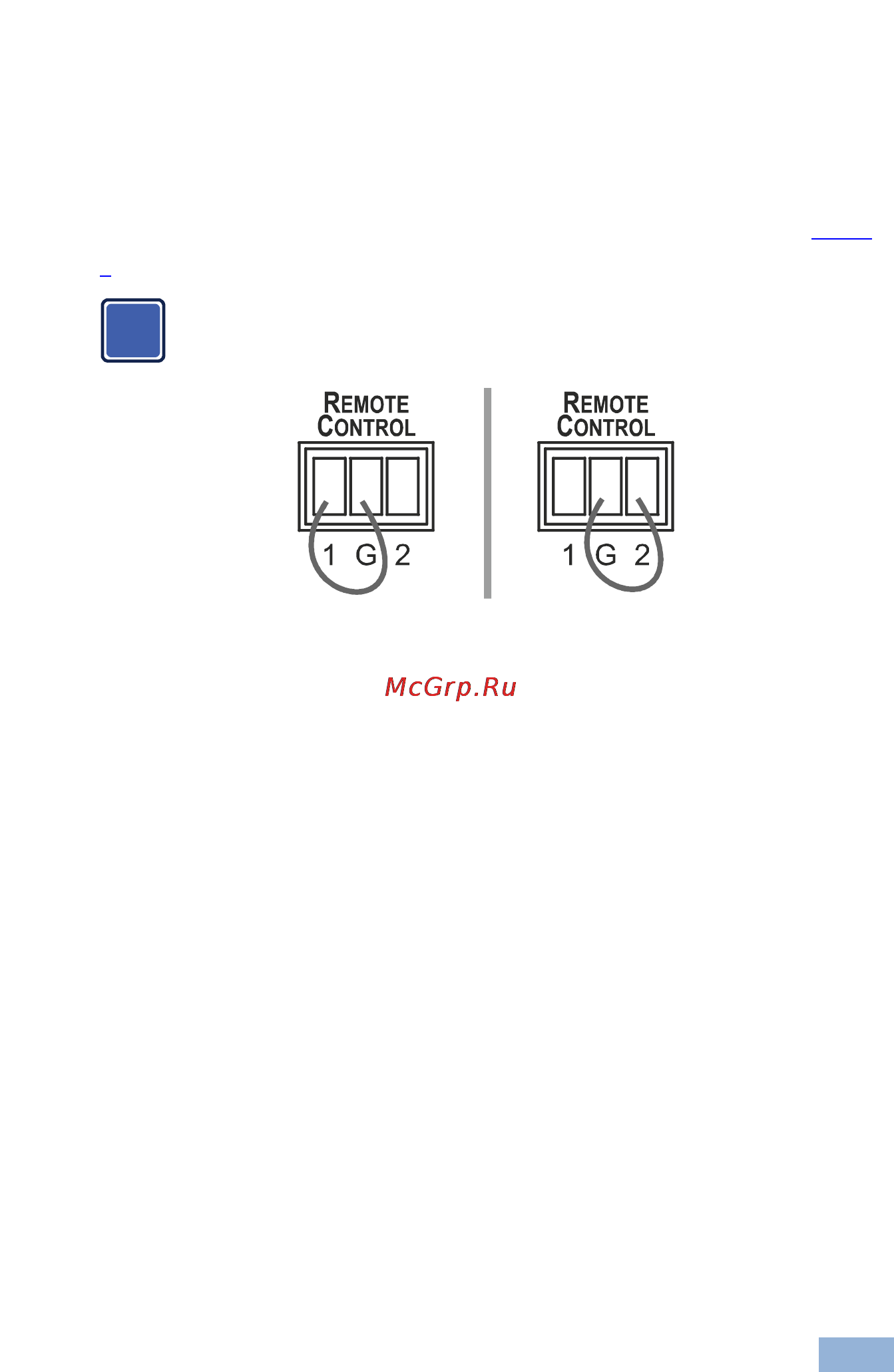

Figure 7: Connecting the Contact Closure Remote Control PINs
5.5 Connecting to a PC
You can connect to the transmitter/receiver system via an RS-232 connection
using, for example, a PC. Note that a null-modem adapter/connection is not
required.
To connect via RS-232, connect the RS-232 9-pin D-sub rear panel port on the
transmitter/receiver system unit via a 9-wire straight cable (pin 2 to pin 2, pin 3 to
pin 3, pin 5 to pin 5) to the RS-232 9-pin D-sub port on your PC.
i
To select input 1,
momentarily connect
the 1 PIN to the G PIN
To select input 2,
momentarily connect
the 2 PIN to the G PIN
